Description

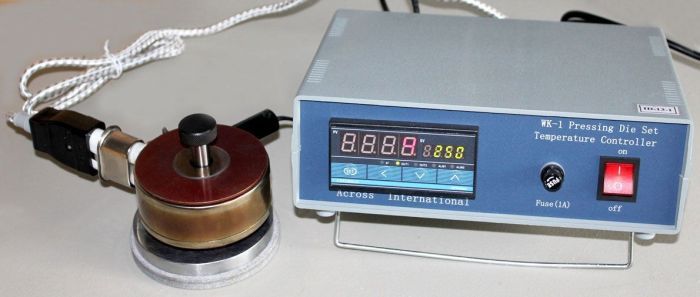

A set of 25mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 25mm diameter cylinder-shape pellets. Heating system with programmable digital temperature controller allows heating up to 250C.

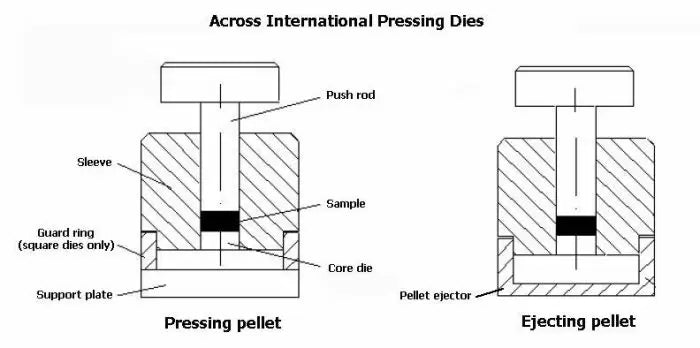

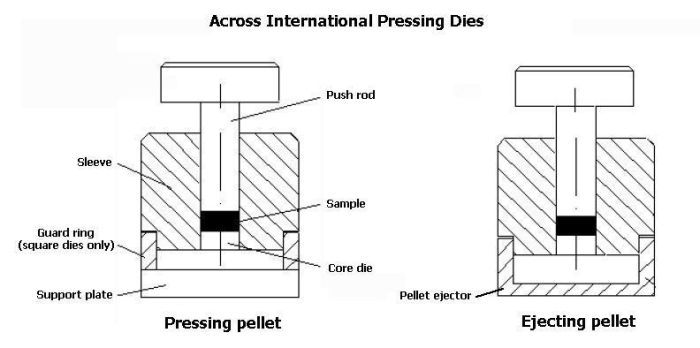

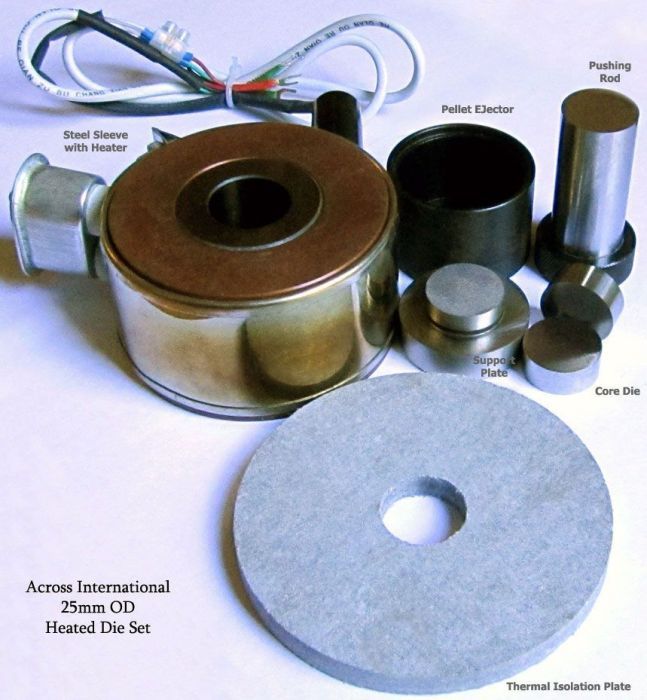

Die set includes
- Two 25mm ID cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve with PT-100 heater and sensor
- One steel support plate
- One thermal isolation plate
- One push rod
- One cylinder pellet ejector

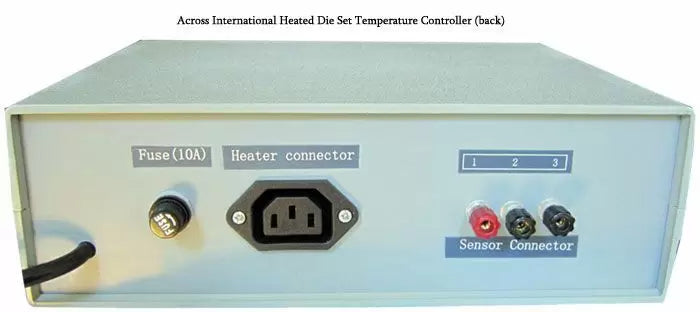

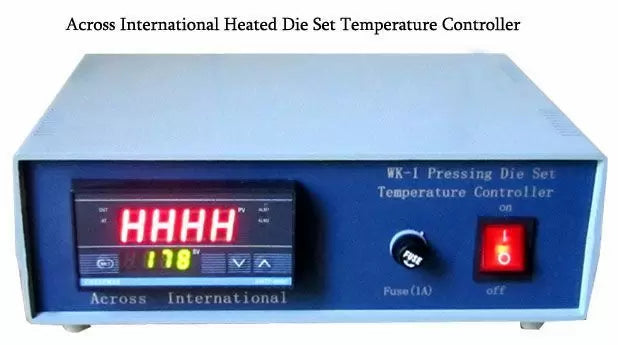

- One WK-1 digital temperature controller
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never apply pressure beyond 70 tons
| Electrical Requirements | 110V 60Hz 270 watts |
| Maximum Pressure | 70 tons |
| Maximum Temperature | 250°C |
| Rockwell Hardness | Rc 62 |
| Diameter (ID) | 25 mm |
| Sleeve Diameter (OD) | 92 mm |
| Sleeve Height | 45 mm |
| Height | 105 mm (assembled without sample) |
| Thermal Plate Diameter | 105 mm |
|
Max. Load Height |
25 mm |
| Temperature Step | 1°C |
| Temperature Sampling | 3 times per second |
| Accuracy | +/- 1% |
| Working Environment | 0-50°C, <35% RH humidity |
| Pressing Die Tolerance | 0.01-0.02 mm (10-20 micron) |
| Material |
Core die & push rod: W18Cr4V hardened carbon tool steel |
