Across International 25KW Mid-Frequency Split Induction Heater w/ Timers 30-80KHz

Power Lab Supply 2SKU: IH25AB

Title: Please Select
Price:
Sale price$6,422.40 USD
Description

Note: This model only available in 460-480 volt three phase.

Across International IH series mid-frequency induction heaters are designed to operate between 30 and 80 kHz. Mid-frequency heaters are excellent for small parts heating, cutting, diamond tool brazing, soldering copper plumbing fittings, auto parts heat-treating, annealing of stainless steel containers and more.

Mid-frequency induction heaters are the simplest in terms of design and implementation. With their low cost of ownership and maintenance, they are the most popular and reliable machines. The 15kW models are especially popular for their large power capacity and small footprint at an affordable price. This makes them standard equipment for many factories, labs and workshops where 230V AC is available.

read more....
hide text

The basic principles of induction heating have been understood and applied to manufacturing since the 1920s. During World War II, the technology developed rapidly to meet urgent wartime requirements for a fast, reliable process to harden metal engine parts. More recently, the focus on lean manufacturing techniques and emphasis on improved quality control have led to a rediscovery of induction technology, along with the development of precisely controlled, all solid state induction power supplies. What makes this heating method so unique? In the most common heating methods, a torch or open flame is directly applied to the metal part. But with induction heating, heat is actually "induced" within the part itself by circulating electrical currents. Since heat is transferred to the product via electromagnetic waves, the part never comes into direct contact with any flame, the coil itself does not get hot, and there is no product contamination. When properly set up, the process becomes very repeatable and controllable.

HOW INDUCTION HEATING WORKS

How exactly does induction heating work? It helps to have a basic understanding of the principles of electricity. When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday's Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.

In a basic induction heating setup, a solid state RF power supply sends an AC current through a copper coil, and the part to be heated is placed inside the coil. The coil serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the induction coil and enters the magnetic field, circulating eddy currents are induced within the part. These eddty currents flow against the electrical resistivity of the metal, generating precise and localized heat without any direct contact between the part and the coil.

IMPORTANT FACTORS TO CONSIDER
The efficiency of an induction heating system for a specific application depends on several factors: the characteristics of the part itself, the design of the induction coil, the capacity of the power supply, and the degree of temperature change required for the application.

METAL OR PLASTIC
First, induction heating works directly only with conductive materials, normally metals. Plastics and other non-conductive materials can often be heated indirectly by first heating a conductive metal susceptor which transfers heat to the non-conductive material.

MAGNETIC OR NON-MAGNETIC
It is easier to heat magnetic materials. In addition to the heat induced by eddy currents, magnetic materials also produce heat through what is called the hysteresis effect. During the induction heating process, magnetics naturally offer resistance to the rapidly alternating electrical fields, and this causes enough friction to provide a secondary source of heat. This effect ceases to occur at temperatures above the "Curie" point - the temperature at which a magnetic material loses its magnetic properties. The relative resistance of magnetic materials is rated on a permeability scale of 100 to 500; while non-magnetics have a permeability of 1, magnetic materials can have a permeability as high as 500.

THICK OR THIN
With conductive materials, about 80% of the heating effect occurs on the surface or "skin" of the part; the heating intensity diminishes as the distance from the surface increases. So small or thin parts generally heat more quickly than large thick parts, especially if the larger parts need to be heated all the way through. Research has shown a relationship between the heating depth of penetration and the frequency of the alternating current. Frequencies of 100 to 400 kHz produce relatively high-energy heat, ideal for quickly heating small parts or the surface/skin of larger parts. For deep, penetrating heat, longer heating cycles at 5 to 30 kHz has been shown to be most effective.

RESISTIVITY
If you use the exact same induction process to heat two same size pieces of steel and copper, the results will be quite different. Why? Steel along with carbon, tin and tungsten has high electrical resistivity. Because these metals strongly resist the current flow, heat builds up quickly. Low resistivity metals such as copper, brass and aluminum take longer to heat. Resistivity increases with temperature, so a very hot piece of steel will be more receptive to induction heating than a cold piece.

INDUCTION COIL DESIGN
It is within the induction coil that the varying magnetic field required for induction heating is developed through the flow of alternating current. So coil design is one of the most important aspects of the overall system. A well-designed coil provides the proper heating pattern for your part and maximizes the efficiency of the induction heating power supply, while still allowing easy insertion and removal of the part.

Induction coils are normally made of copper tubing - an extremely good conductor of heat and electricity - with a diameter of 1/8" to 3/16"; larger copper coil assemblies are made for applications such as strip metal heating and pipe heating. Induction coils are usually cooled by circulating water, and are most often custom-made to fit the shape and size of the part to be heated. So coils can have single or multiple turns; have a helical, round or square shape; or be designed as internal (part inside coil) or external (part adjacent to coil). There is a proportional relationship between the amount of current flow and distance between the coil and part. Placing the part close to the coil increases the flow of current and the amount of heat induced in the part. This relationship is referred to as the coupling efficiency of the coil.



Safety Features

  • Overvoltage protection: machine shuts down when input voltage is over 495V. Overvoltage light will turn on and buzzer will sound continuously. Alarm and light shut off automatically when voltage goes below 495V.
  • Overheat protection: if sensor detects heat radiatortemperature is over 55C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself.
  • Overcurrent/malfunction protections: machine will shut down, indicator light turned on and buzzer sounds continuously if one of these situations occurs:
    • One of the machine parts becomes overheated
    • Interfering signal detected
    • Short circuit between work pieces and induction coils
    • Machine malfunctions
    • Induction coils touching each other
    • Input voltage is too low
  • Low water pressure protection: if water pressure goes below 29 PSI, machine will shut down, water protection light will turn on and buzzer will sound continuously.

IMPORTANT!!

  • Always wear protective gear and goggles when operating the machine. Crucibles must be covered all the time during operation. Across International is not responsible for any injury or damage caused by misuse.
  • Do not run no-load operation for a long period of time, it might cause damage to the machine.
  • Circulating water must be pure, clean and below 45C.
  • Machine must be grounded properly all the time during operation.
  • Do NOT use single-turn coil if coil diameter is smaller than 4 inches, it will cause high frequency damage to the machine.
  • Thread tape (or related material) is absolutely prohibited during installation of induction coils.





Features
Main Features

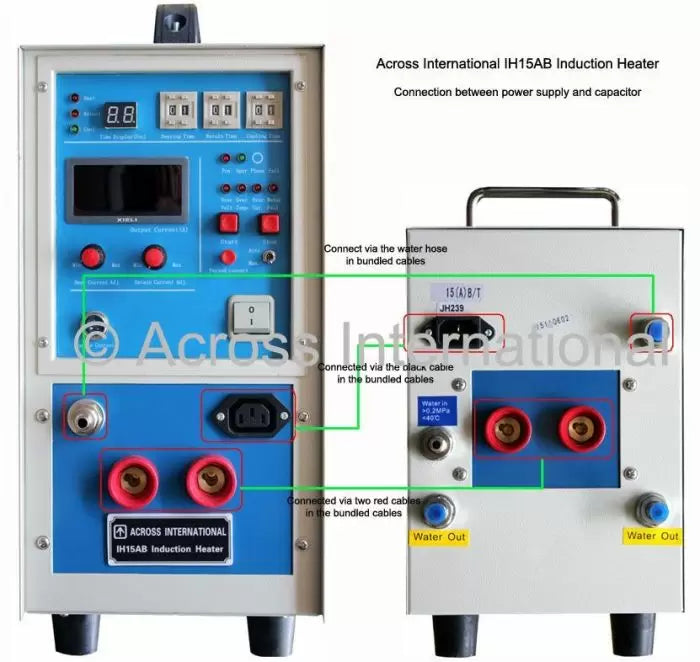

  • Dual-station with connection cables and hose let you separate the heater and controller up to seven feet, allow you to stay away from high temperature, dirty and corrosive environment and for a safer operation, or if you need to move the heater to your work pieces constantly during operation.
  • Ease of use: just plug in the power and connect the water cooling system. Our simple instruction allows you to use the heater in 15 minutes.
  • Light weight, portable (with built-in handle), instant heat and up to 90% energy savings.

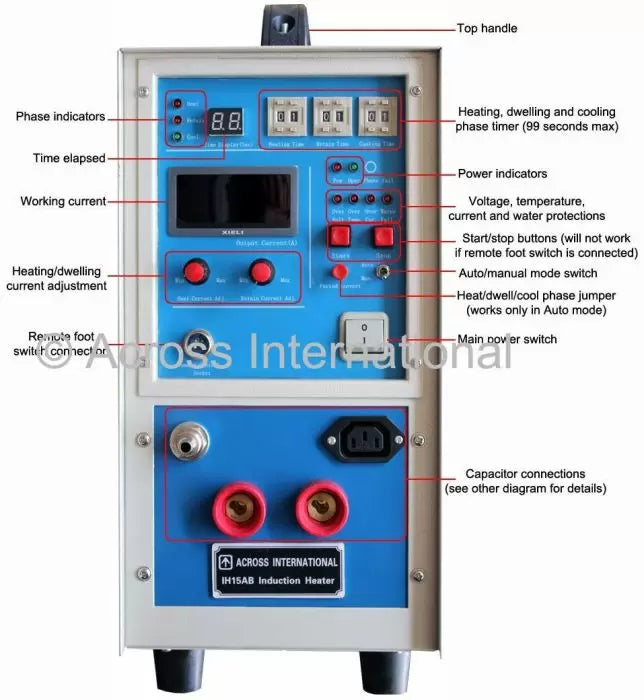

  • Precise control with digital time and current displays.
  • Remote foot switch for safer operation.
  • Dual automatic and manual modes.
  • Optional graphite and silica crucibles available. (melting material decides crucible type, weight and size of the material decide crucible size)

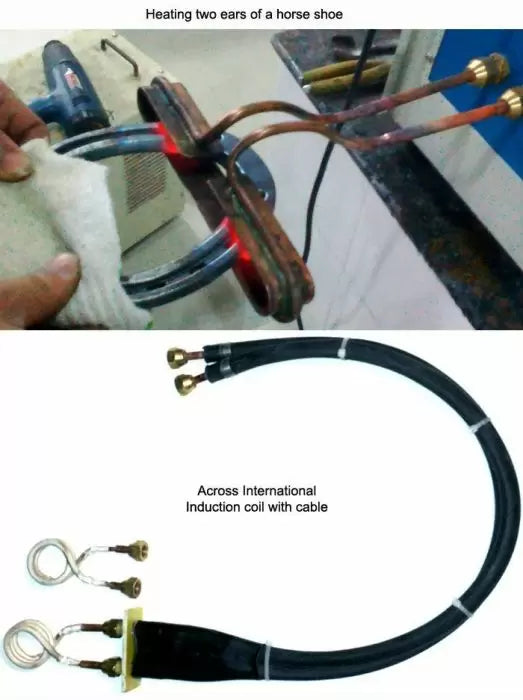

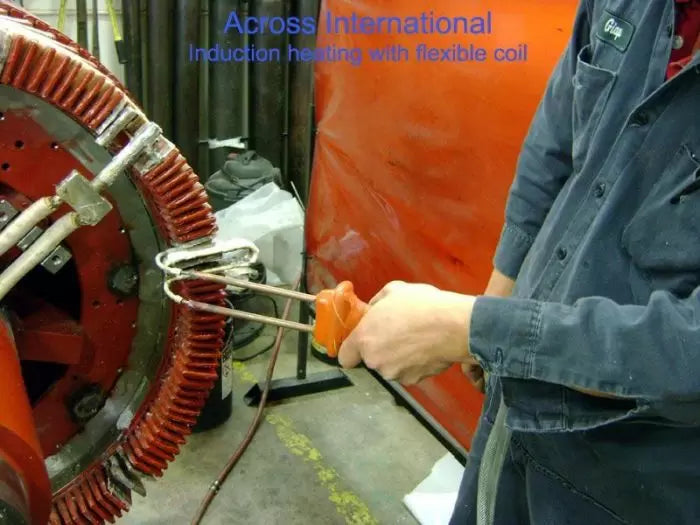

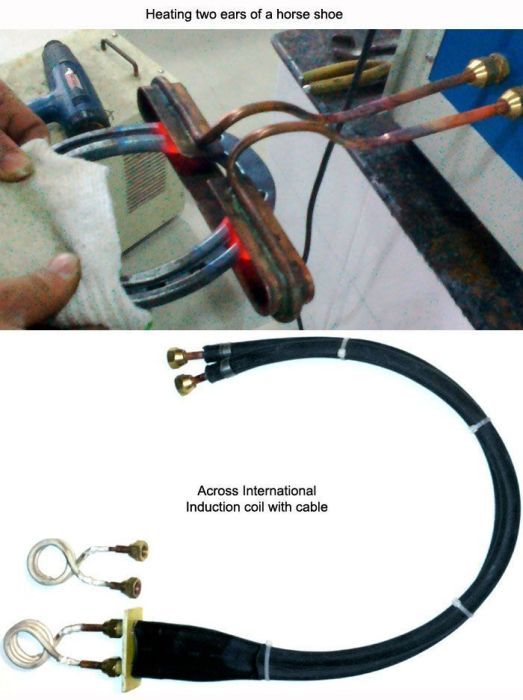

  • Custom coil design (fixed coil or coil on a cable so it can be used by hand like a wand).
  • ISO 9001:2008 registered manufacturer.
  • We provide sample testing and custom made coils in our New Jersey facility.
Specifications
Specifications



 Max. input current  19 A (25A 3-phase circuit breaker required)
 Power  460V, 50/60Hz, three phase
 Power distribution cord
 Output frequency
 30-80 KHz
 Heating/retaining current
 200-1000 A (displayed on control panel)
 Max. oscillating power
 25 KW
 Max input power  15 KW
 Duty cycle

 80%

 Heating/dwelling/cooling timer
 1-99 seconds
 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water
 and water pump (>1/4HP & >240 Gph)
 Water temperature
 25-30°C
 Water flow
 0.5-1.3 gallons (2-5 liters) per minute
 Induction coil  See detail specs below, we will make coils
 according to your requirements
 Unit weight
 Power supply: 55 Lb, capacitor: 35 Lb
 Shipping weight
 115 Lb
 Unit size
 Power supply: 23x9x18", capacitor: 12x7.5x13"
 Shipping size
 22x22x23"
 Connection cables/foot switch
 7 feet
 Max. melting capacity
 7 Lb (gold, silver, copper), 2 Lb (steel, aluminum)
Standard Packages
Standard package



 Part description

Quantity

 Part image

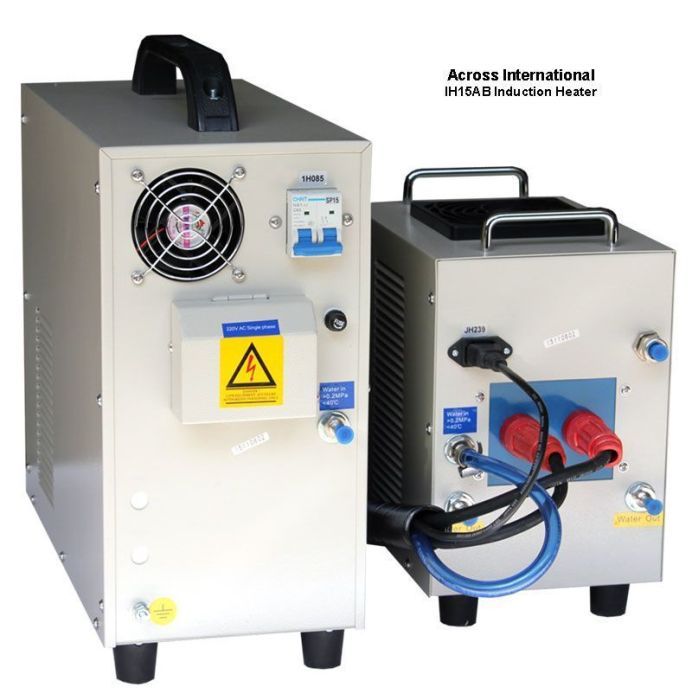

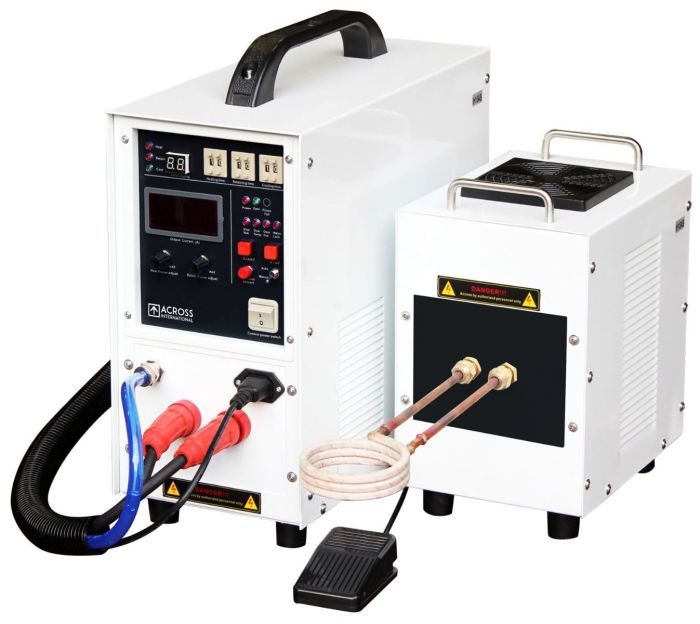

 IH25AB power supply
1 pc

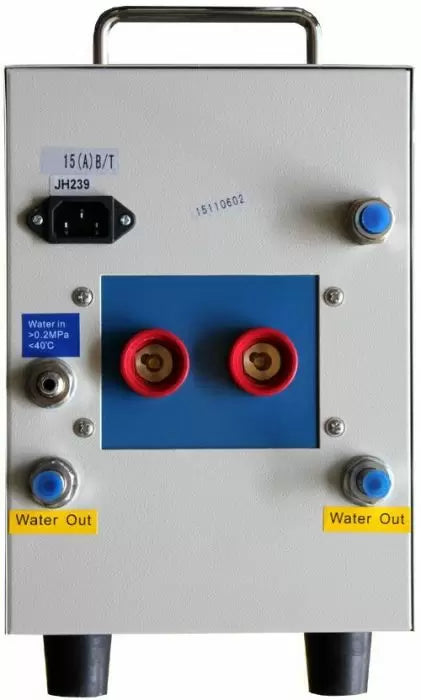

 IH25AB capacitor
1 pc

 Connection cable
 1 set

 Foot switch (7 ft)
 1 pc

 0-5V Cable 1 pc

 Induction coil
 2 pcs

Hose Clamps 8 pcs

 Fuse 5 pcs

 Induction coil adapter (to protect the coil connectors on the machine, good for users who change coils frequently)
2 pcs

 Brass Accessories and fittings 4 pcs

 Operation manual  1 pc
