SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

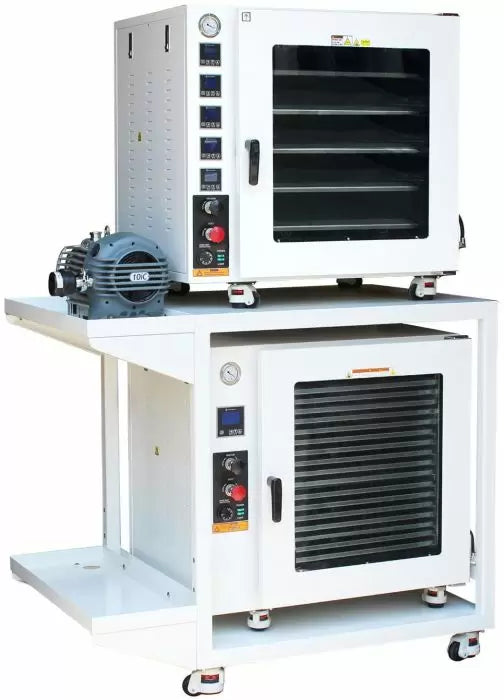

Introducing the new UL certified 5-shelf 7.5 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is thesecondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption..
Every one of our goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
- UL certified
- New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
- All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
- Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
- 4th gen low proportional gain temperature controllerskeep your oven temperature accurate.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature ramping, run the auto-tune procedure as outlined in the manual
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.
Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
Â
Â
Â
| Â Electric |
 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts  or  220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts |
|  Heater |  300 watts x 5, built into 5 aluminum shelves, for the fastest, most energy efficient  and uniform heating |
| Â Chamber |
 Size: 22 x 23.5 x 25"  Material: Stainless steel  Capacity: 7.5 cubic feet |
|  Temperature control |  Controller: low proportional gain, microcomputer PID controlled with LCD display  Range: ambient to 250°C (or 480°F)  Display units: Fahrenheit or Celsius  Uniformity: +/- 5% of setpoint  Dwelling timer range: 1 to 9999 minutes  Warm-up time to 100°F: 45 minutes  Warm-up time to 480°F: 2 hours 15 minutes |
| Â Vacuum |
 Ultimate vacuum level: better than 500 microns/millitorrs  (may vary based on your altitude)  Mechanical gauge range: 0 to 30 inch mercury  Vacuum port: KF25 flange x 1  Vent port: KF25 flange x 1  Vacuum pump: Sold separately |
| Â Weight | Â Unit: 410 Lbs, shipping: 630 Lbs |
| Â Dimensions (WxDxH) |
 Unit: 34.5 x 33 x 35.5"  Shipping: 42 x 38 x 43" |
| Â Shelves |
 Heated shelves: 5 non-removable aluminum shelves, 22 x 23.25" (WxD) each  Optional stackable aluminum shelves: 22 x 23.25 x 2.25" (WxDxH)  Total area without stackable shelves: 512 x 5 = 18 sq ft or 2560 sq inch  Total area with 5 stackable shelves: 512 x 10 = 36 sq ft or 5120 sq inch  Distance between shelves (without stackable shelves): 4.5 inches  Distance between shelves (with 5 stackable shelves): 2.25 inches  Max. load capacity per shelf: 20 Lbs |
| Â Door gasket material | Â Silicone or Viton |
| Â Observation window | Â 1/2" tempered safety glass |
| Â Safety |
 Built-in circuit breaker  Overheat shutoff protection  Secondary over-temp protection dial |
| Â In-door lights | Â White LED |
| Â Warranty | Â 2 years |
| Â Compliance | Â (E482564), CE |
|
 Part description |
 Quantity |
Part image |
| Â Ai UL certified 7.5 cu ft vacuum oven |
1 pc |
|
| Â KF25 quick clamp and centering ring | 2 sets |
|
| Â Inlet filter with KF25 connection | 1 pc | |
| Â Led Light Cable | 1 pc | |
| Â Users manual | 1 pc |
