Description
Â
Â
SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Oven comes standard with 9 shelves. This unit only comes in 220V 50/60Hz.

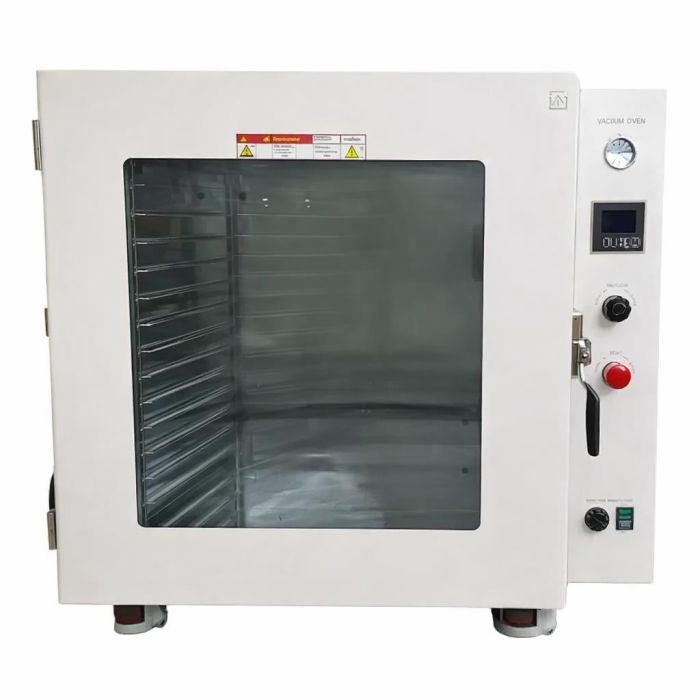

Introducing the new Ai 18-shelf capacity 5 sided wall-heating 7.5 cu ft vacuum ovens, come standard with secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty.
Every one of our goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

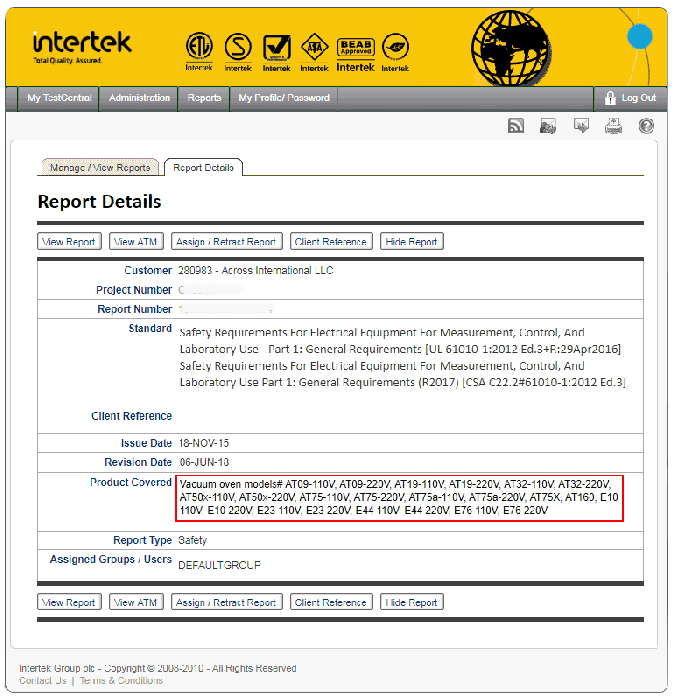

- ETL tested to UL and CSA standards

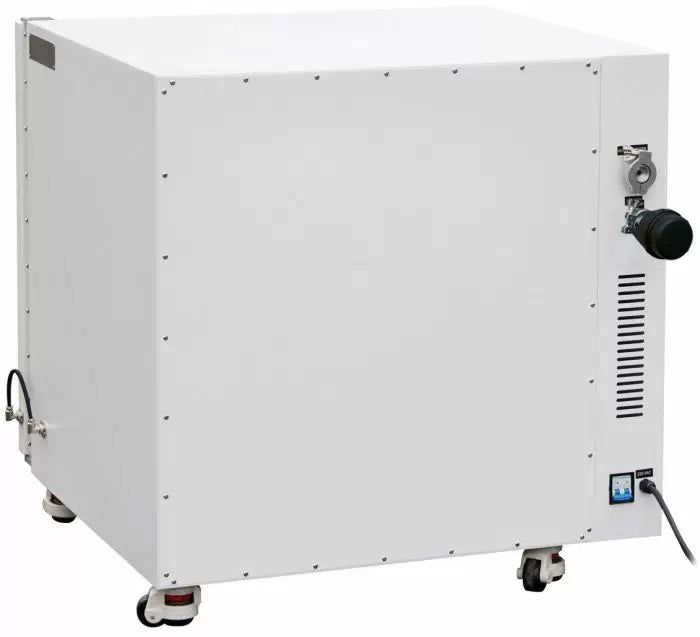

- New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
- All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
- 4th gen low proportional gain temperature controllerskeep your oven temperature within +/- 1F accuracy, ineither F or C.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.

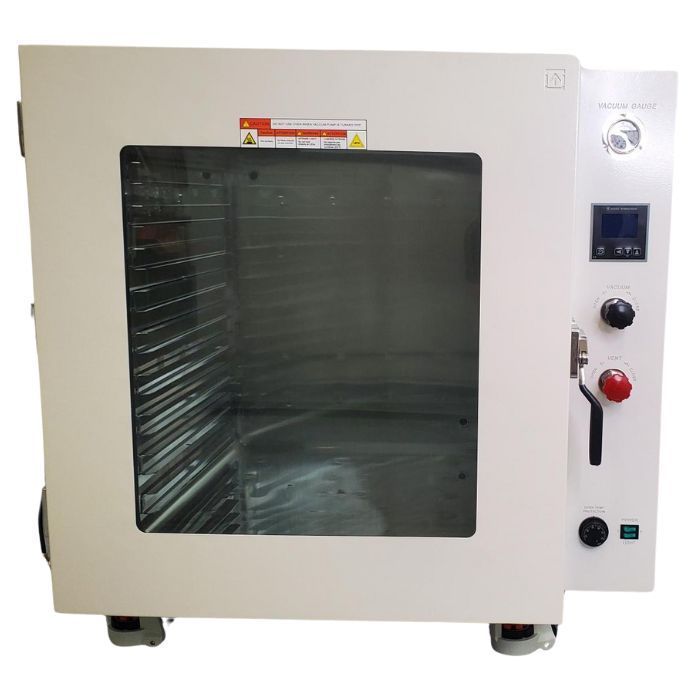

- Dual layer observation window with 3/4" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.

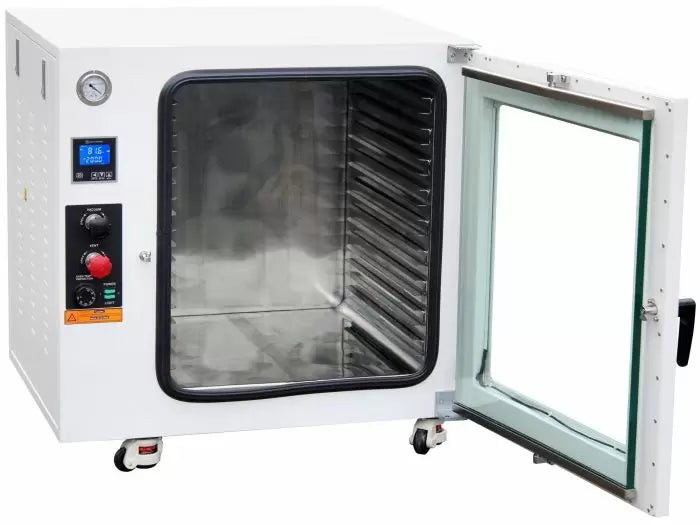

- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature ramping, run the auto-tune procedure as outlined in the manual
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.
Â

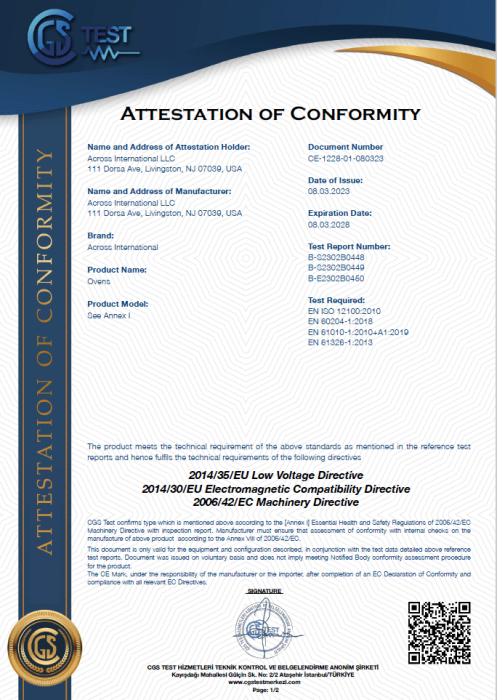

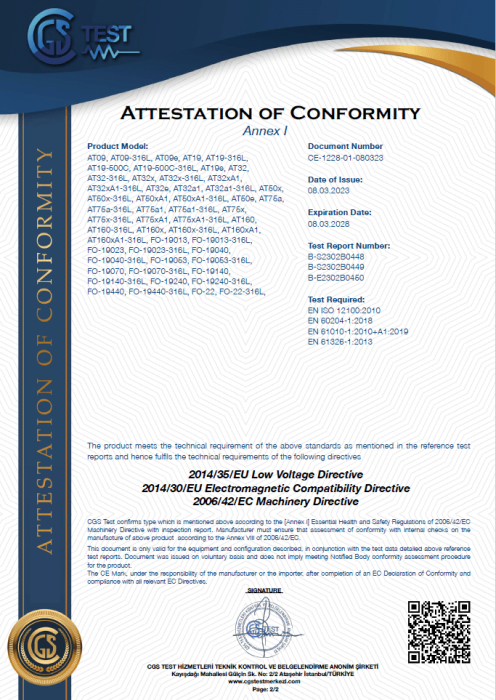

Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
Â
Â
Â
Â
| Â Electrical requirements |
 220V +/-10% 50/60Hz 1-PH 21A, 4,600 watts |
| Â Chamber |
 Size: 22 x 23.5 x 25"  Material: Stainless steel  Capacity: 7.5 cubic feet |
| Â Heater | Â 5-sided heating (left 900W, right 900W, top 900W, bottom 900W, back 250W x 4) |
|  Temperature control |  Controller: low proportional gain, microcomputer PID controlled with LCD display  Range: ambient to 250°C (480°F)  Display units: Fahrenheit or Celsius  Uniformity: +/- 7% of setpoint  Dwelling timer range: 1 to 9999 minutes  Warm-up time to 100°F: 45 minutes  Warm-up time to 480°F: 2 hours 15 minutes |
| Â Vacuum |

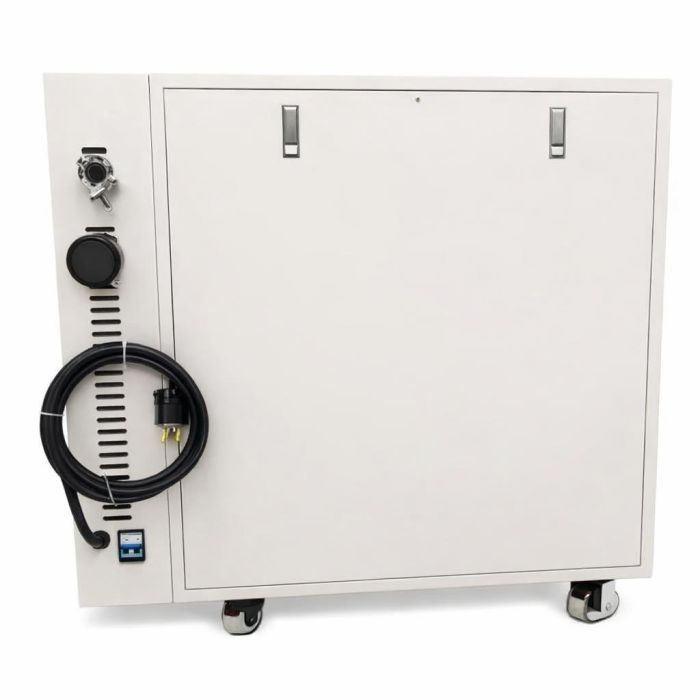

 Ultimate vacuum level: better than 500 microns/millitorrs  (may vary based on your altitude)  Mechanical gauge range: 0 to 30 inch mercury  Vacuum port: KF25 flange x 1  Vent port: KF25 flange x 1  Vacuum pump: Sold separately |
| Â Weight | Â Unit: 450 Lbs, shipping: 680 Lbs |
| Â Dimensions (WxDxH) |
 Unit: 37 x 35.5 x 38"  Shipping: 42 x 40 x 43" |
| Â Shelves |
 Shelf size: 21.75 x 23 x 0.5" (WxDxH)  Material: aluminum  Style: pan-shape  Capacity: 18 shelves max.  Comes standard with oven purchase: 9 shelves  Total area with 18 shelves: 61.8 sq ft or 8901 sq inch  Distance between the most adjacent shelves: 1.25 inches |
| Â Door gasket material | Â Silicone or Viton |
| Â Observation window | Â 1/2" tempered safety glass |
| Â Safety |
 Built-in circuit breaker  Overheat shutoff protection  Secondary over-temp protection dial |
| Â In-door lights | Â White LED (pre-installed) |
| Â Compliance | Â ETL tested to UL and CSA standards |
| Â Warranty | Â 2 years |
|
 Part description |
 Quantity |
Part image |
| Â Ai 7.5 cu ft 5 sided heating vacuum oven |
1 pc |
|
| Â KF25 quick clamp and centering ring | 2 sets |
|
| Â Aluminum pan shelf | 9 pcs | |
| Â Led Light Cable | 1 pc | |
| Â Inlet filter with KF25 connection | 1 pc | |
| Â L6-30P 230V plug (installed) | 1 pc | |
| Â Users manual | 1 pc |
