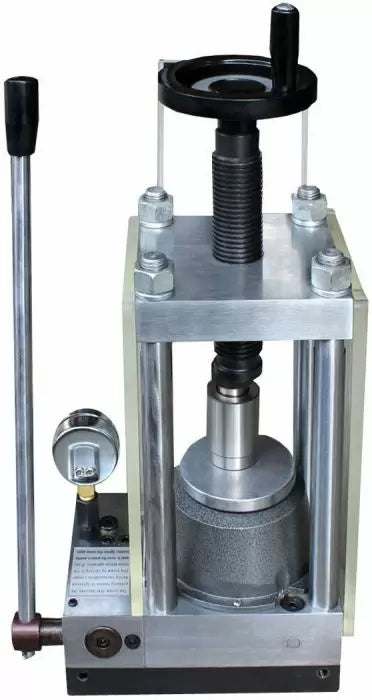

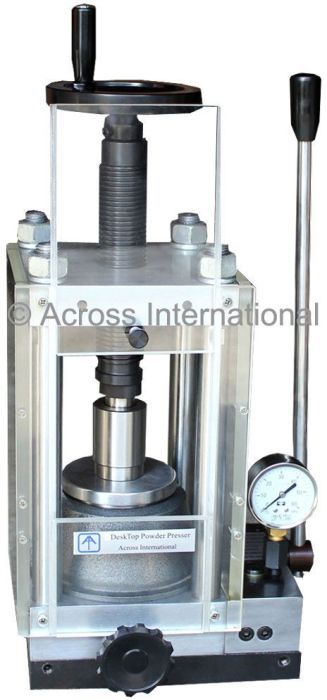

MP24A desktop dry manual pellet presses can press up to 24 metric tons. They are frequently used in materials and chemistry research laboratories to prepare compound samples. These presses have built in hydraulic pump with auto return function and 10mm thick transparent safety shield.
Caution: always wear protective goggles during operation!
Specifications
| Maximum pressure | 24 metric tons (52,910 Lb) |
| Maximum working space | 4x4x5.5" (LxWxH) |
| Largest compatible die set | Across International 2" ID round die sets |
| Hydraulic cylinder travel distance | 1 inch |
| Machine dimension | 10.5x8x19" (LxWxH) |
| Machine weight | 84 Lb |
| Shipping weight | 110 Lb |
| Shipping dimension | 15x15x22" |
| Pressing dies | Various diameter dies available at extra cost |
Standard package
|
Part description
|
Quantity
|
Part image
|
| MP24A pellet press | 1 pc |
|
| Oil bottle |
1 pc |
|
| Hex L-key |
2 pcs | |
| Double open-end wrench |
3 pcs |
|
| Sealing o-ring |
4 pcs |
|
| Operation manual |
1 pc |
How to fix pellet press pressure problem
