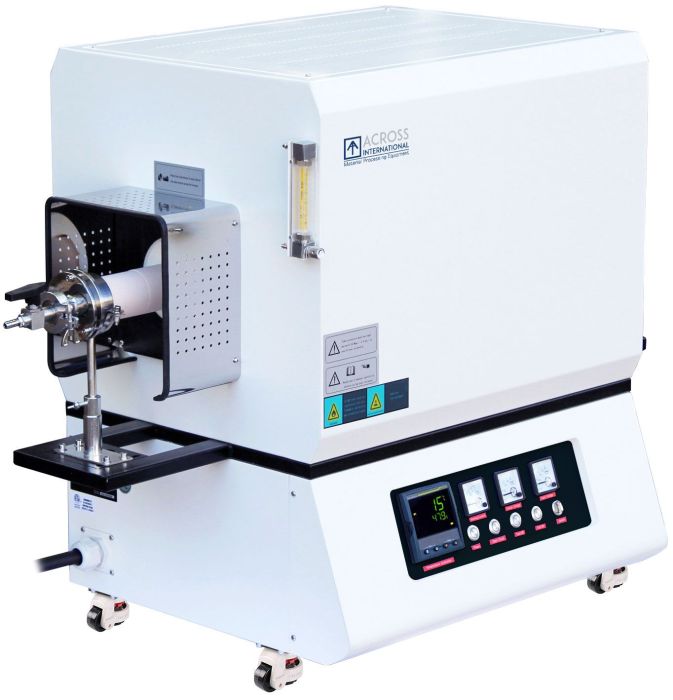

TF1750 series tube furnaces feature a chamber with Mitsubishi (Japan) high quality 1900 grade alumina fiber insulation and molybdenum silicide heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.
Ā
Furnace operation is controlled by Eurotherm (UK) digital multi-segment controller with built-in digital communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features
- Compact, portable and lightweight design.

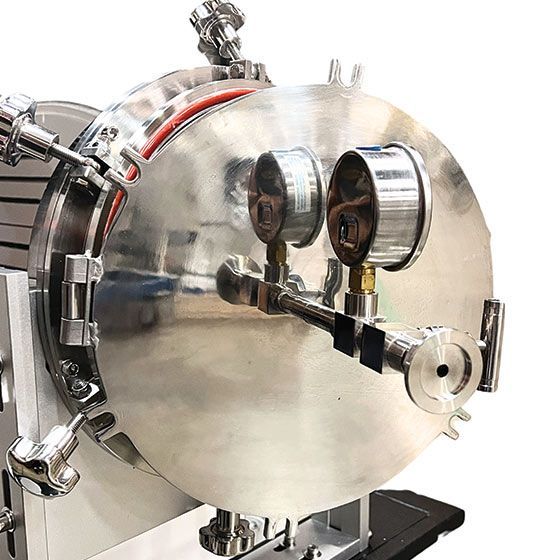

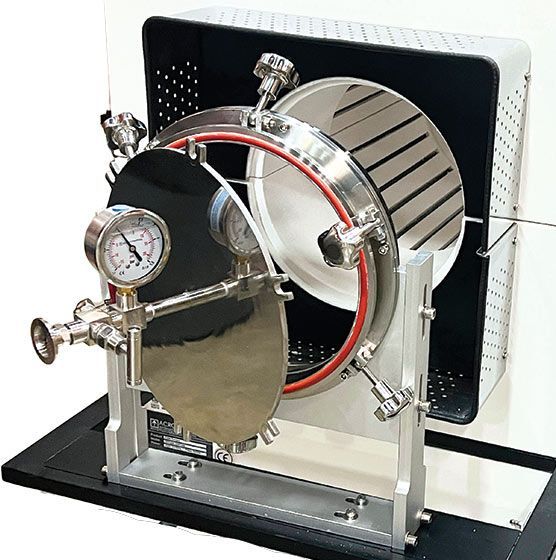

- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

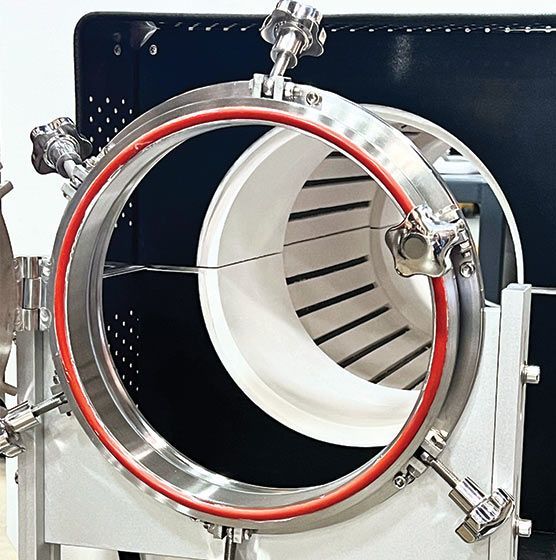

- Dual flanges support ensures better sealing and longer tube life.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type B thermocouple.
Ā
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
Ā
Ā
Ā
Ā
Ā
Ā
Ā

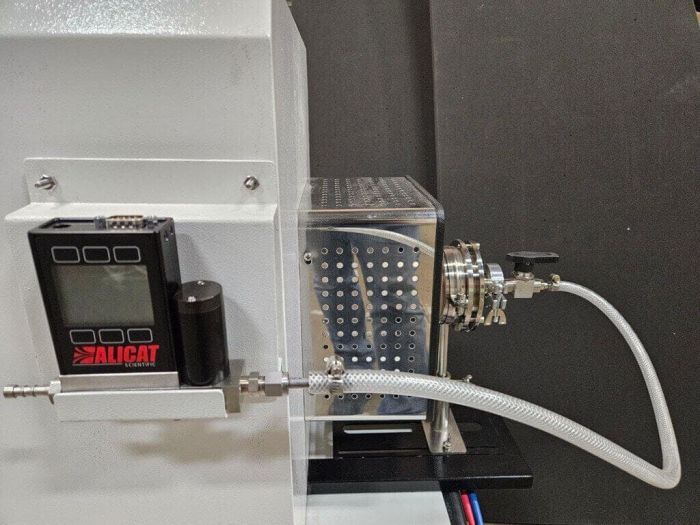

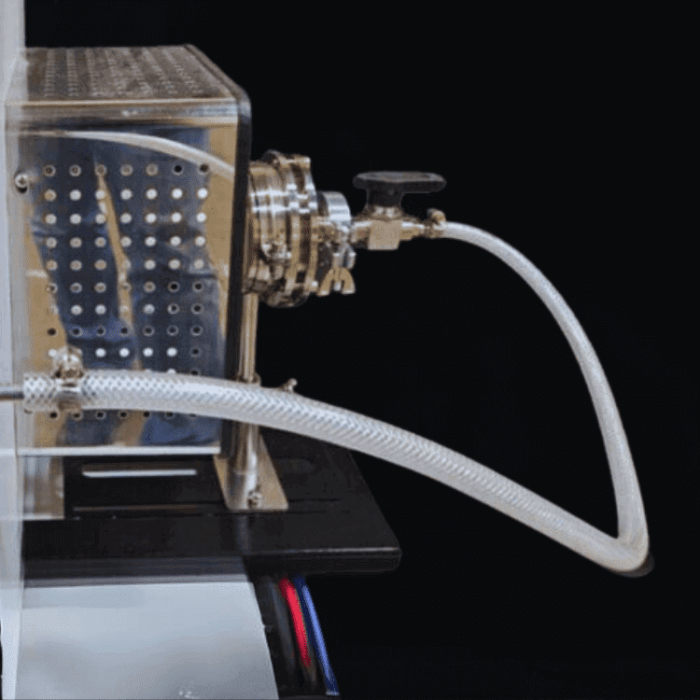

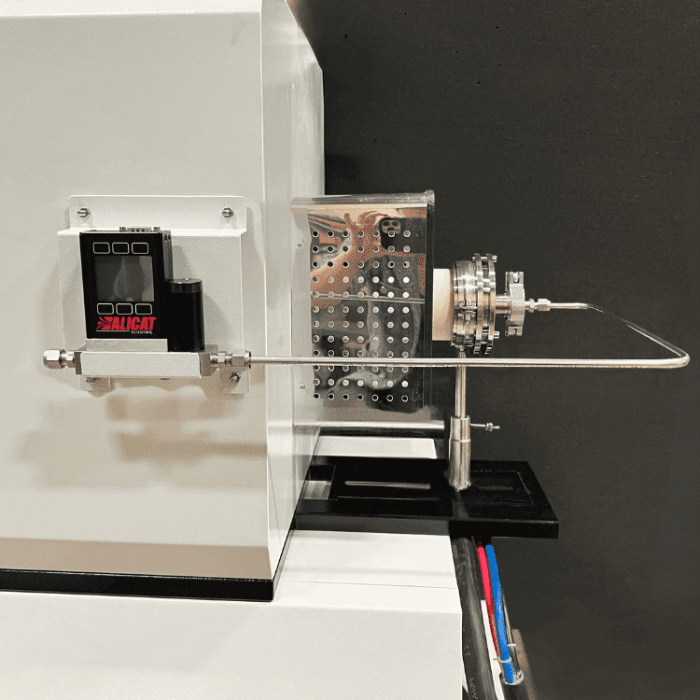

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**
Ā
Tubing sold separatelyĀ
Ā
Ā
Ā
Alicat Mass Flow Controllers
|
Alicat 0-5 SLPM ā 1/8ā Female NPT port |
$1,480.00 |
|
Alicat 0-5 SLPM ā 1/4ā Compression fitting port |
$1,580.00 |
|
Alicat 0-10 SLPM ā 1/8ā Female NPT port |
$1,480.00 |
|
Alicat 0-10 SLPM ā 1/4ā compression fitting port |
$1,580.00 |
|
AlicatĀ 0-20 SLPM ā 1/8ā Female NPT port |
$1,680.00 |
|
Alicat 0-20 SLPM ā 1/4ā compression fitting port |
$1,780.00 |
|
Alicat 0-500 SCCM ā 1/8ā Female NPT port |
$1,480.00 |
|
Alicat 0-500 SCCM ā 1/4ā compression fitting port |
$1,580.00 |
Ā
Ā
| Ā Electrical requirements | Ā 208-240VAC, 50/60 Hz, single phase |
| Ā Tube materialĀ | Ā High purity (99%) Al2O3 alumina |
| Ā Minimum working temperature | Ā 300Ā°C (572Ā°F) |
| Ā Max. working temperatureĀ | Ā 2 hours at 1750Ā°C; 5 hours at 1700Ā°C; 1650Ā°C constant temperature Ā * 2 hours maximum continuous run time at maximum temperatureĀ |
| Ā Constant working temperature | Ā 1700Ā°C |
| Ā Rated vacuum pressure |
Ā 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Ā Rated positive pressure |
Ā 0.02 MPa / 150 torr / 3 psi |
| Ā Refractory lining |
Ā Mitsubishi (Japan) high quality 1900 grade fiber alumina |
| Ā Heating element type |
Ā Molybdenum Silicide (MoSi2)Ā Ā |
| Ā Thermocouple type |
Ā B |
| Ā Temperature controller |
Ā Eurotherm (UK) digital multi-segment controller |
| Ā Max heating rate |
Ā 5Ā°C/min above 1200Ā°C and 10Ā°C/min below 1200Ā°C (2192Ā°F) Ā Ā |
| Ā Heating/constant zone length |
Ā 11" / 4" |
| Ā Temperature controller precisionĀ Ā |
Ā +/- 1Ā°C |
| Ā Vacuum sealing flange kit |
Ā Stainless steel vacuum sealing flanges with one Ā Ā Ā vacuum gauge,Ā two valves and four thermal ceramic blocks. Ā |
| Ā Compliance |

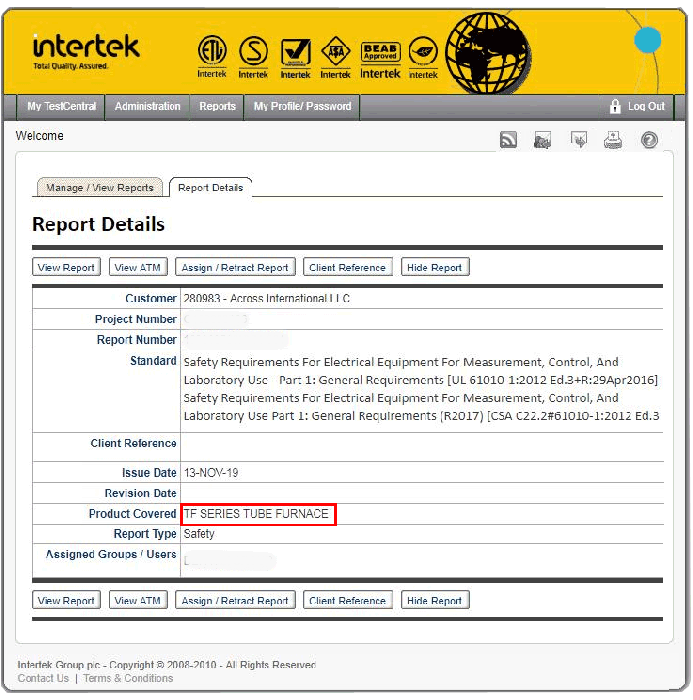

Ā ETL tested to UL and CSA standards (optional), CE |
Ā
80mm OD furnace detail specs
| Ā Tube size | Ā 80mmOD x 1m L |
| Ā Installed heating element | Ā 8 |
| Ā Maximum output | Ā 5.5 KW |
| Ā Shipping dimensions (LxWxH) | Ā 51x24x36" |
| Ā Shipping weight (Lb) | Ā 570 |
|
Part description Ā Ā Ā |
Quantity |
Part image |
| Ā TF1750 tube furnace |
Ā 1 pc |
|
| Ā Stainless steel vacuum sealing flange set w/ pressure meter |
Ā 1 set |
|
| Ā Alumina tube 1000mm length (OD: 80mm) |
1 pc |
|
| Ā Thermocouple | 1 pc |
|
| Ā Spare heating element (SiC) |
2 pcs |
|
| Ā Stainless steel hook |
Ā 1 pc |
|
| Ā Alumina ceramic thermal block | Ā 4 pcs |
|
| Ā Thermal gloves | Ā 1 pair |
|
| Ā Spare fuse | 2 pcs |
|
| Ā Crucible | 5 pcs |
|
| Ā USB/RS485 computer interface kit | Ā 1 set |
|
| Ā Furnace and Eurotherm or Shimaden controller manual | Ā 2 pcs |
|
