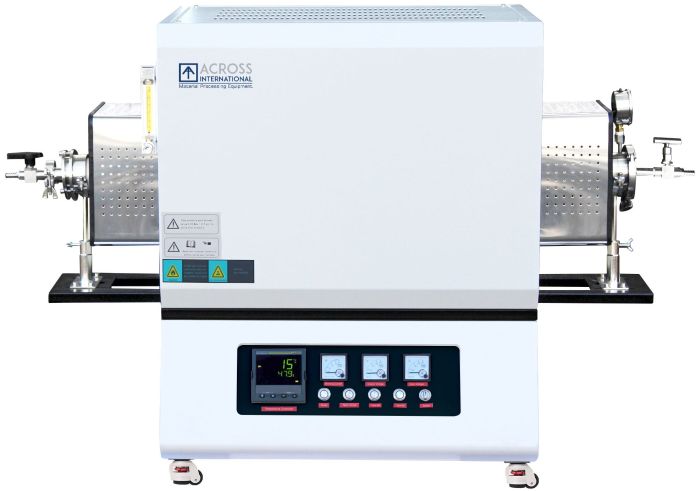

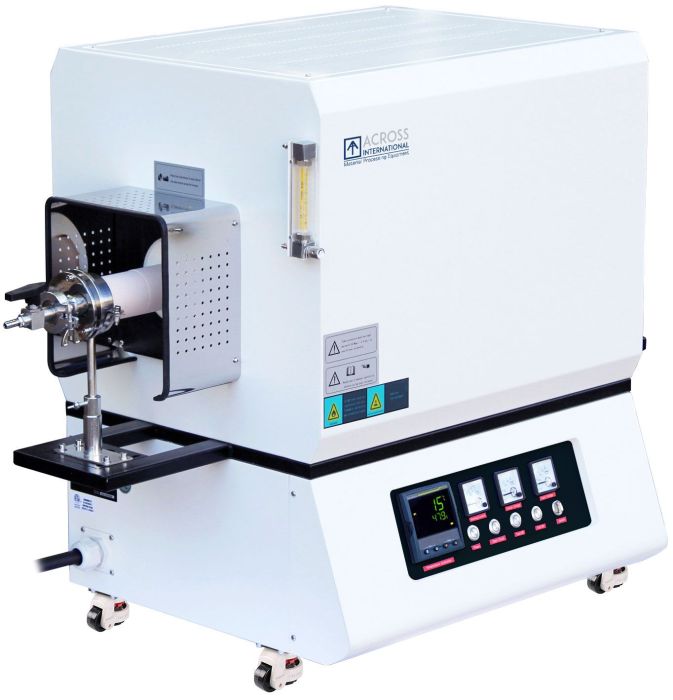

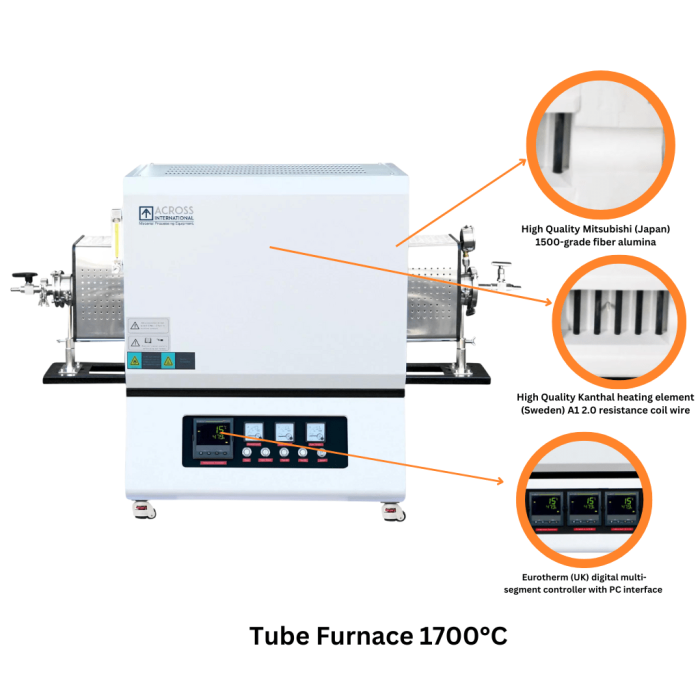

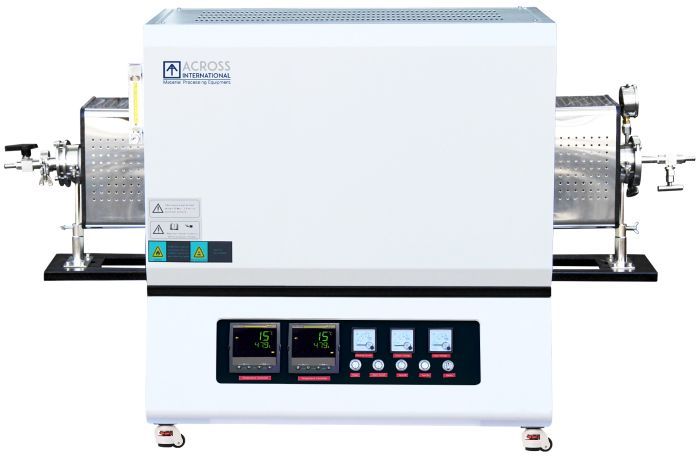

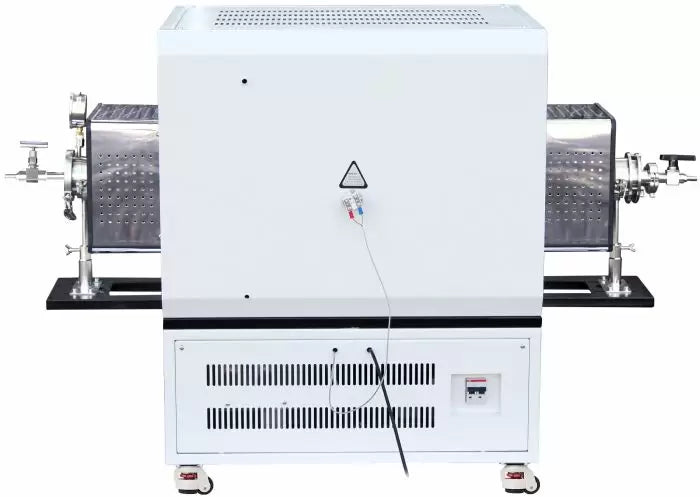

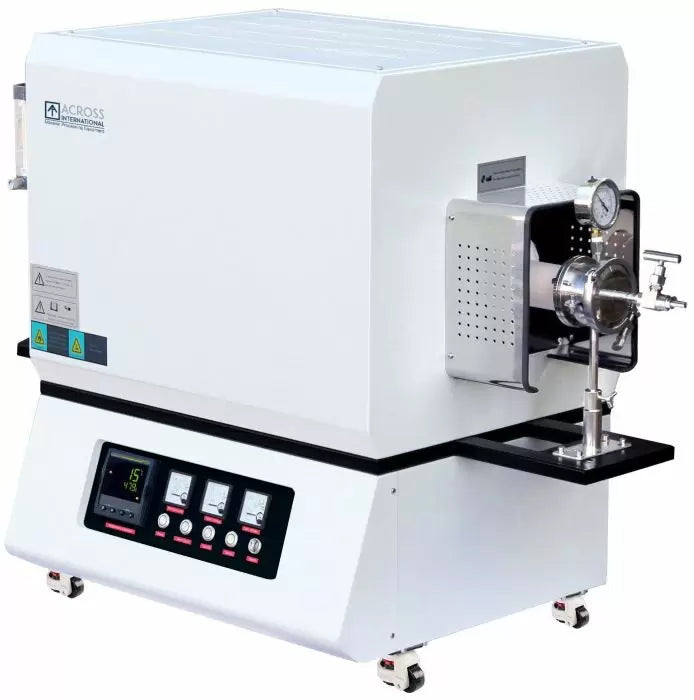

TF1700 series tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and molybdenum silicide heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by Eurotherm (UK) digital multi-segment controller with built-in digital communication port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Ā
Ā
Ā
Features
- Compact, portable and lightweight design.
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Dual flanges support provides better sealing and longer tube life.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
Ā
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Ā
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
Ā
Ā
Ā
Ā
Ā
Ā
Ā
Ā
Ā
Ā

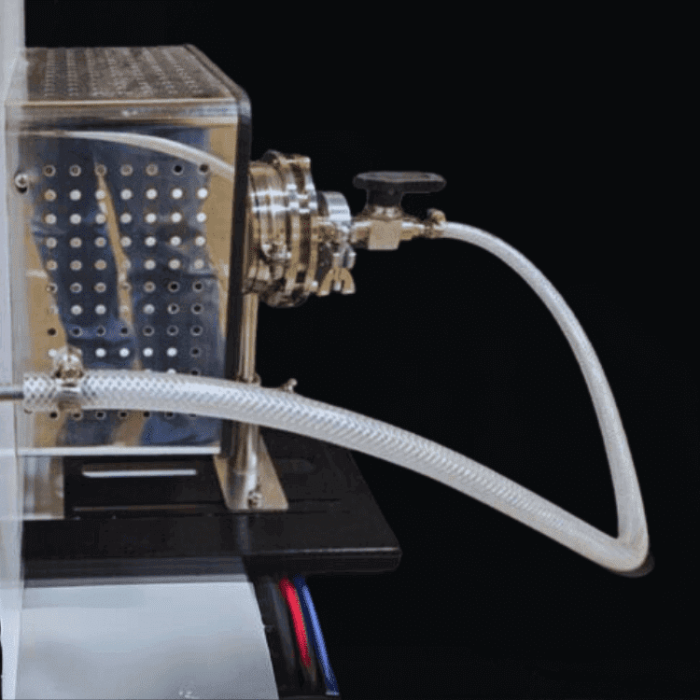

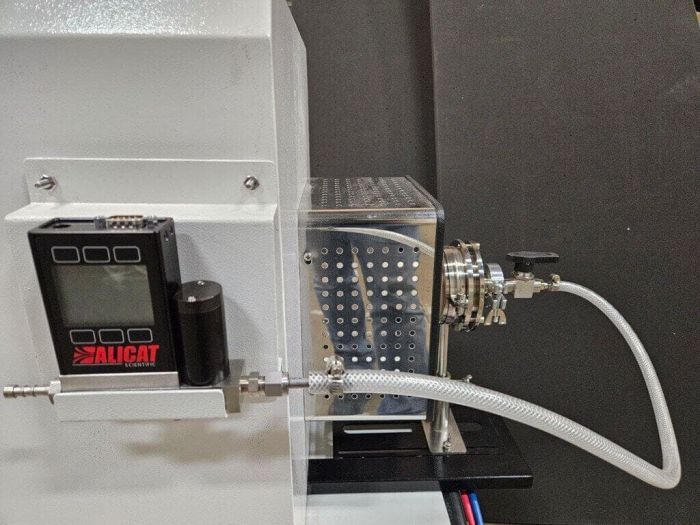

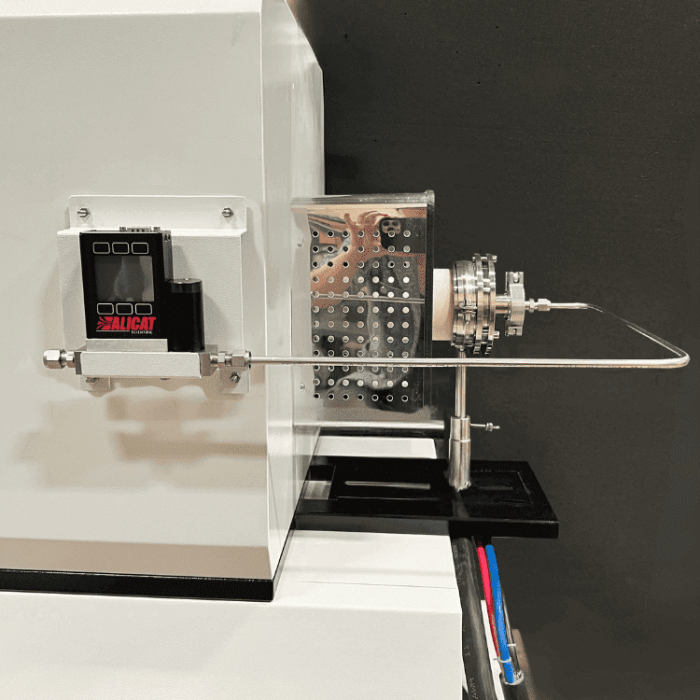

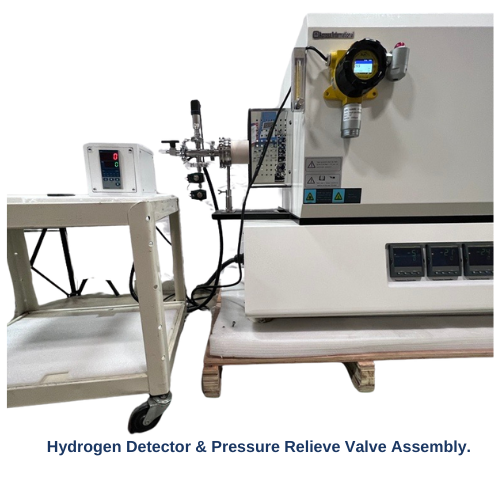

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**
Ā
Tubing sold separatelyĀ
Ā
Alicat Mass Flow Controllers
|
Alicat 0-5 SLPM ā 1/8ā Female NPT port |
$1,480.00 |
|
Alicat 0-5 SLPM ā 1/4ā Compression fitting port |
$1,580.00 |
|
Alicat 0-10 SLPM ā 1/8ā Female NPT port |
$1,480.00 |
|
Alicat 0-10 SLPM ā 1/4ā compression fitting port |
$1,580.00 |
|
AlicatĀ 0-20 SLPM ā 1/8ā Female NPT port |
$1,680.00 |
|
Alicat 0-20 SLPM ā 1/4ā compression fitting port |
$1,780.00 |
|
Alicat 0-500 SCCM ā 1/8ā Female NPT port |
$1,480.00 |
|
Alicat 0-500 SCCM ā 1/4ā compression fitting port |
$1,580.00 |
Ā
| Ā Model | Ā TF1700 |
| Ā Electrical requirements | Ā 208-240VAC, 50/60 Hz, single phase |
| Ā Tube materialĀ | Ā High purity (99%) Al2O3Ā alumina |
| Ā Min working temperature | Ā 300Ā°C (572Ā°F) Recommend at least 800Ā°C for longer heating element life |
| Ā Max/constant working temperaturesĀ | Ā 1700Ā°C (3092Ā°F)Ā / 1600Ā°C (2912Ā°F) Ā * 2 hours maximum continuous run time at maximum temperature |
| Ā Rated vacuum pressure |
Ā 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |

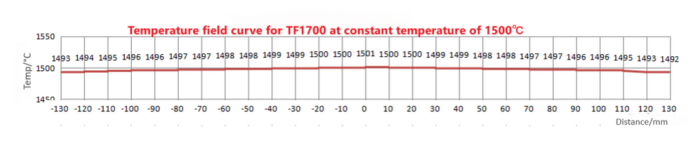

| Ā Rated positive pressure | Ā 0.02 MPa / 150 torr / 3 psi |
| Ā Refractory lining | Ā MitsubishiĀ (Japan) high quality 1800 grade fiber alumina |
| Ā Heating element / thermocouple type | Ā Molybdenum SilicideĀ (MoSi2) / B-type |
| Ā Temperature controller | Eurotherm 3204 Controller (5 Programs ā Each program has 8 segments) Or Shimaden fp93 (Japan) with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) |
| Ā Max heating & cooling rate | Ā 5Ā°C (41Ā°F)/min above 1200Ā°C and 10Ā°C (50Ā°F)/min below 1200Ā°C (2192Ā°F)Ā |
| Ā Heating vs constant zone lengthĀ | |
| Ā Temperature controller precision | Ā +/- 1Ā°C |
| Ā Vacuum sealing flange kit | Ā Stainless steel vacuum sealing flanges with one Ā Ā Ā vacuum gauge,Ā two valves and four thermal ceramic blocks. Ā |

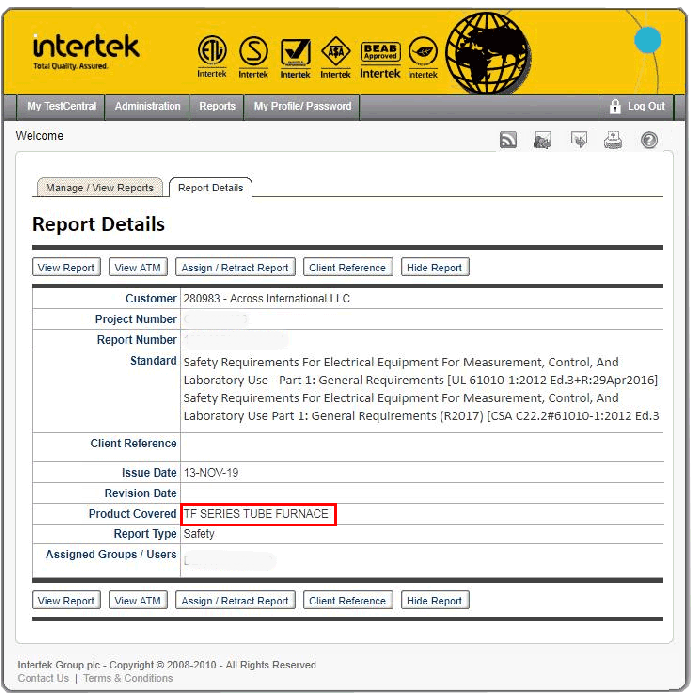

| Ā Compliance | Ā ETL tested to UL and CSA standards (optional), CE (Standard) |
Ā
1-Zone
| Ā Tube size | Ā 60/80mmOD x 1m L | Ā 100mmOD x 1m L | Ā 120mmOD x 1m L |
| Ā Installed heating element | Ā 8 | Ā 8 | Ā 8 |
| Ā Maximum output | Ā 5 kW | Ā 6 kW | Ā 7 kW |
| Ā Unit/shipping dimensions (LxWxH) | Ā 52x24x34"/49x31x52" | Ā 52x26x38"/49x32x55" | Ā 52x30x38"/54x37x47" |
| Ā Unit/Shipping weight (Lb) | Ā 350/500 | Ā 400/560 | Ā 440/600 |
Ā
| Ā Model | Ā TFM2.1700 |
| Ā Electrical requirements | Ā 208-240VAC, 50/60 Hz, single phase |
| Ā Tube materialĀ | Ā High purity (99%) Al2O3Ā alumina |
| Ā Min working temperature | Ā 300Ā°C (572Ā°F) |
| Ā Max/constant working temperaturesĀ | Ā 1700Ā°C (3092Ā°F)Ā / 1600Ā°C (2912Ā°F) Ā * 2 hours maximum continuous run time at maximum temperature |
| Ā Heating zone length | Ā Zone1: 8 inches Zone2: 8 inches |
| Ā Constant heating zone length | Ā Zone1: 5 inches Zone2: 5 inches |
| Ā Rated vacuum pressure |
Ā 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Ā Rated positive pressure | Ā 0.02 MPa / 150 torr / 3 psi |
| Ā Refractory lining | Ā MitsubishiĀ (Japan) high quality 1800 grade fiber alumina |
| Ā Heating element / thermocouple type | Ā Molybdenum SilicideĀ (MoSi2) / B-type |
| Ā Temperature controller | Eurotherm 3204 Controller (5 Programs ā Each program has 8 segments) Or Shimaden fp93 (Japan) with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) |
| Ā Max heating rate | Ā 10Ā°C/min |
| Ā Recommended heating rate | Ā 5Ā°C/min |
| Ā Temperature controller precision | Ā +/- 1Ā°C |
| Ā Vacuum sealing flange kit | Ā Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.Ā |
| Ā Compliance | Ā ETL tested to UL and CSA standards (optional), CE (Standard) |
Ā
2-Zone
| Ā Tube size | Ā 60mmOD x 1200mm L | Ā 100mmOD x 1200mm L | Ā 120mm x 1200mm |
| Ā Maximum output | Ā 10kW | Ā 10kW | Ā 12kW |
| Ā Furnace dimensions (LxWxH) | Ā 25" x 19" x 27" | Ā 25" x 19" x 27" | Ā 28" x 20" x 30" |
| Ā Shipping dimensions (LxWxH) | Ā 47" x 35" x 39" | Ā 47" x 35" x 39" | Ā 50" x 38" x 42" |
| Ā Net weight (Lb) | Ā 265 | Ā 280 | 350 |
| Ā Shipping weight (Lb) | Ā 400 | Ā 420 | 450 |
Ā Ā

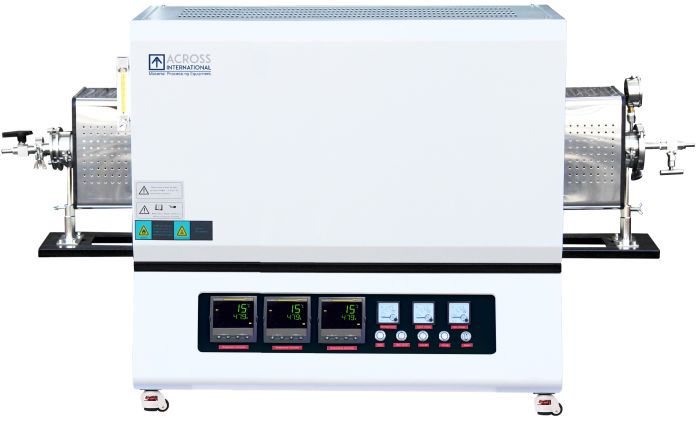

| Ā Model | Ā TFM3.1700 |
| Ā Electrical requirements | Ā 208-240VAC, 50/60 Hz, single phase |
| Ā Tube materialĀ | Ā High purity (99%) Al2O3Ā alumina |
| Ā Min working temperature | Ā 300Ā°C (572Ā°F) |
| Ā Max/constant working temperaturesĀ | Ā 1700Ā°C (3092Ā°F)Ā / 1600Ā°C (2912Ā°F) Ā * 2 hours maximum continuous run time at maximum temperature |
| Ā Heating zone length | Ā Zone1: 8 inches Zone2: 8 inches Zone3: 8 inches |
| Ā Constant heating zone length | Ā Zone1: 6.5 inches Zone2: 6.5 inches Zone3: 6.5 inches |
| Ā Rated vacuum pressure |
Ā 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Ā Rated positive pressure | Ā 0.02 MPa / 150 torr / 3 psi |
| Ā Refractory lining | Ā MitsubishiĀ (Japan) high quality 1800 grade fiber alumina |
| Ā Heating element / thermocouple type | Ā Molybdenum SilicideĀ (MoSi2) / B-type |
| Ā Temperature controller | Eurotherm 3204 Controller (5 Programs ā Each program has 8 segments) Or Shimaden fp93 (Japan) with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) |
| Ā Max heating rate | Ā 10Ā°C/min |
| Ā Recommended heating rate | Ā 5Ā°C/min |
| Ā Temperature controller precision | Ā +/- 1Ā°C |
| Ā Vacuum sealing flange kit | Ā Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.Ā |
| Ā Compliance | Ā ETL tested to UL and CSA standards (optional), CE (Standard) |
3-Zone
| Ā Tube size | Ā 60mm x 1300mm (OD x length) | Ā 80mm x 1300mm (OD x length) | Ā 100mm x 1300mm (OD x length) |
| Ā Maximum output | Ā Zone1/2/3: 5kW/5kW/5kW | Ā Zone1/2/3: 5kW/5kW/5kW | Ā Zone1/2/3: 5kW/5kW/5kW |
|
Part description |
Quantity |
Part image |
| Ā TF1700 tube furnace |
Ā 1 pc |
|
| Stainless steel vacuum sealing flange set w/ pressure meter |
Ā 1 set |
|
| Alumina tube |
1 pc |
|
| Thermocouple - Type B |
1 pc |
|
| Ā Spare heating element |
2 pcs |
|
| Flange O-rings |
8 pcs |
|
| Ā Stainless steel hook |
Ā 1 pc |
|
| Alumina ceramic thermal block |
4 pcs |
|
| Ā Thermal gloves | Ā 1 pair |
|
| Ā Spare fuse | 2 pcs |
|
| 4A Fuse (UL ONLY) | 2 pcs |
|
| Crucibles | 5 pcs |
|
| Ā USB/RS485 computer interface kit | Ā 1 set |
|
| USB Drive (Eurotherm Software) | 1 pc |
|
| Furnace and Eurotherm or Shimaden controller manual |
2 pcs |
|
