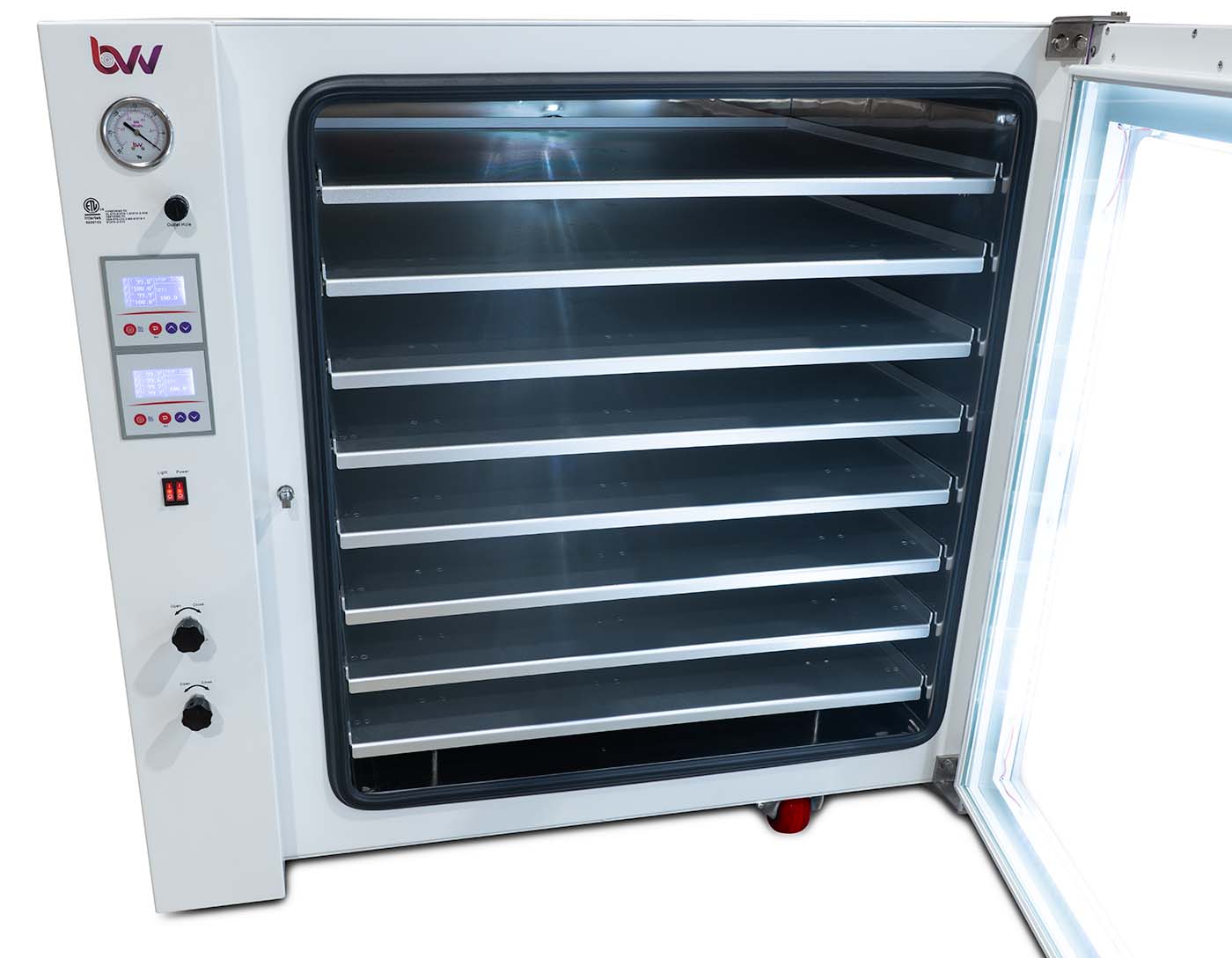

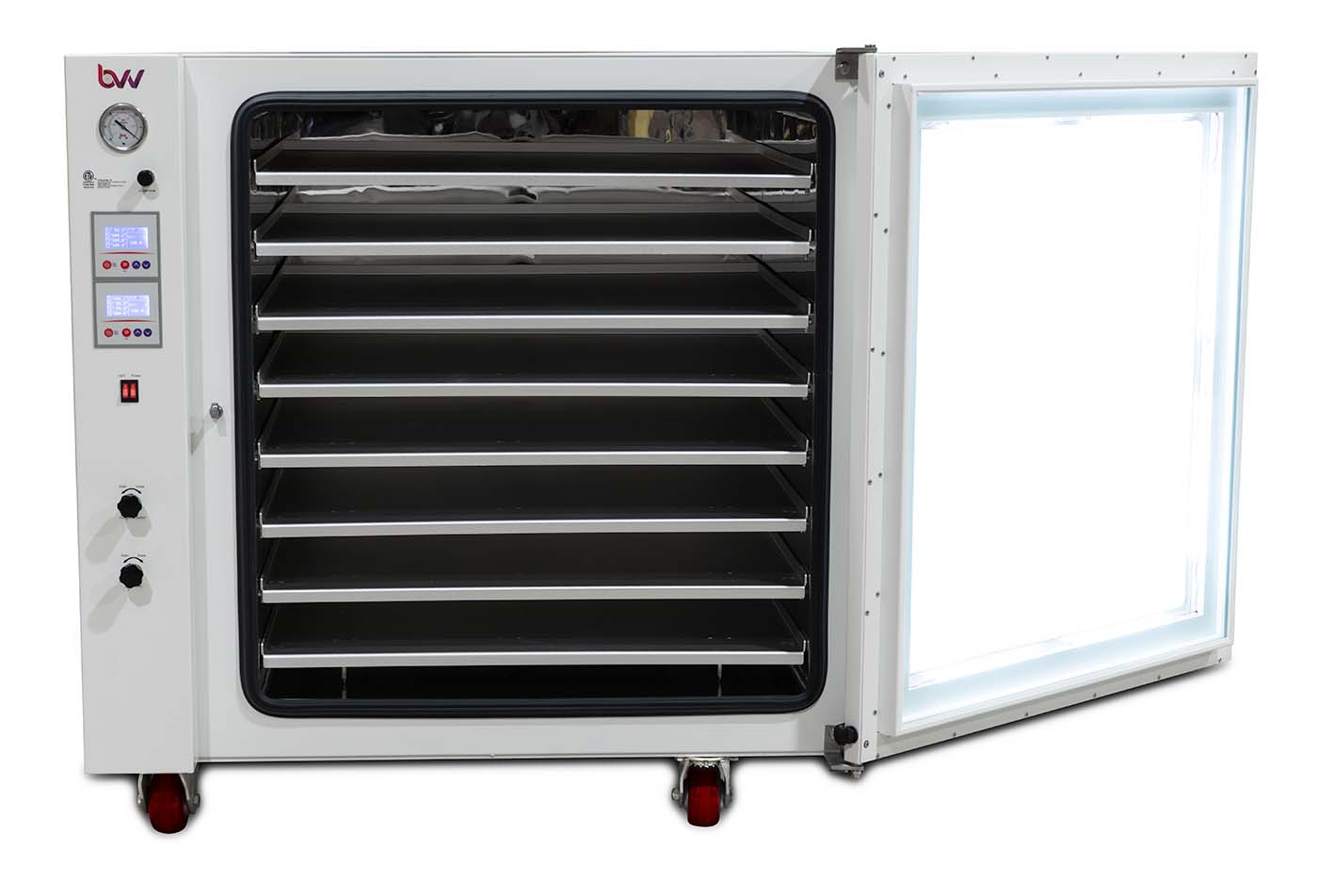

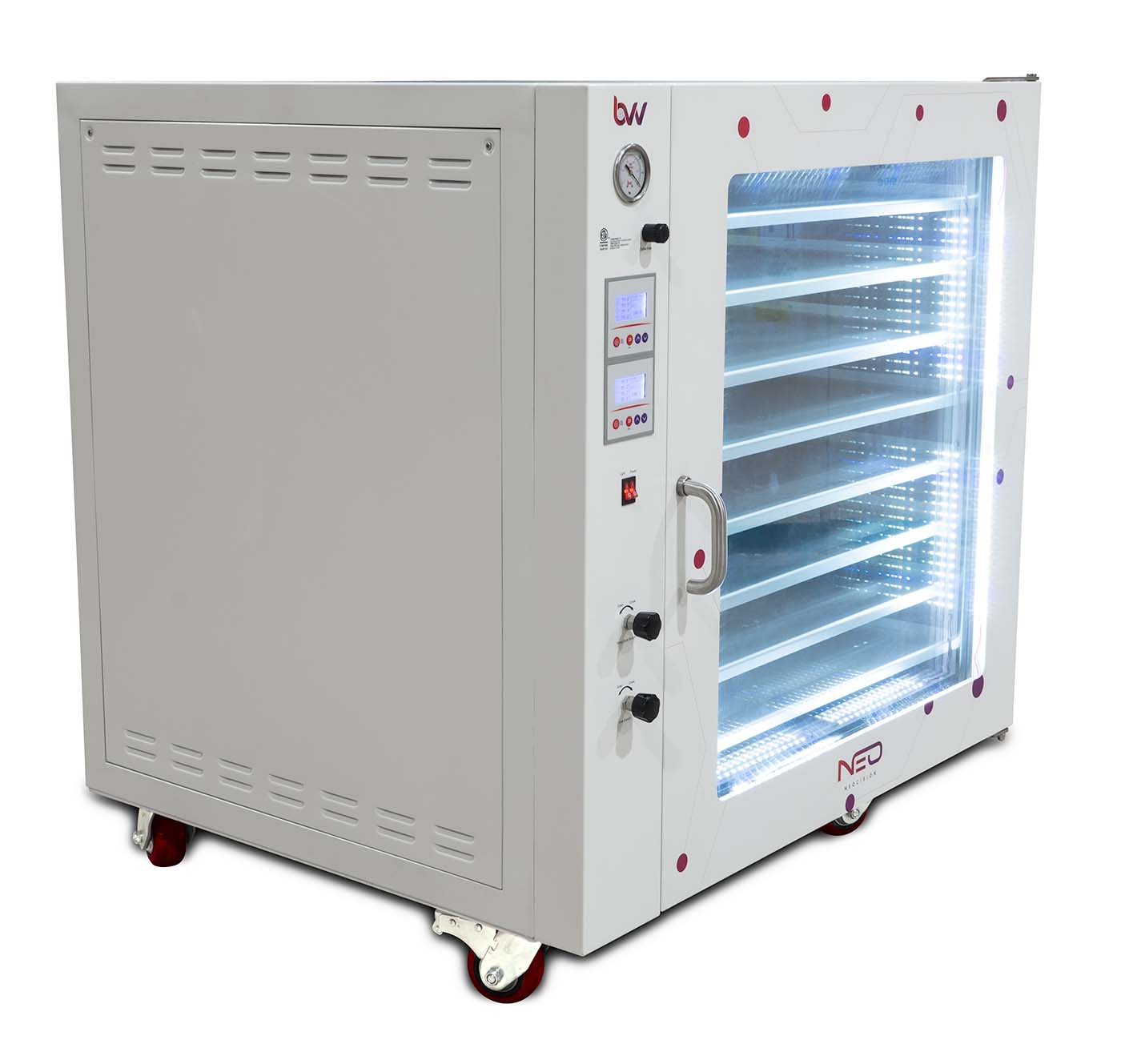

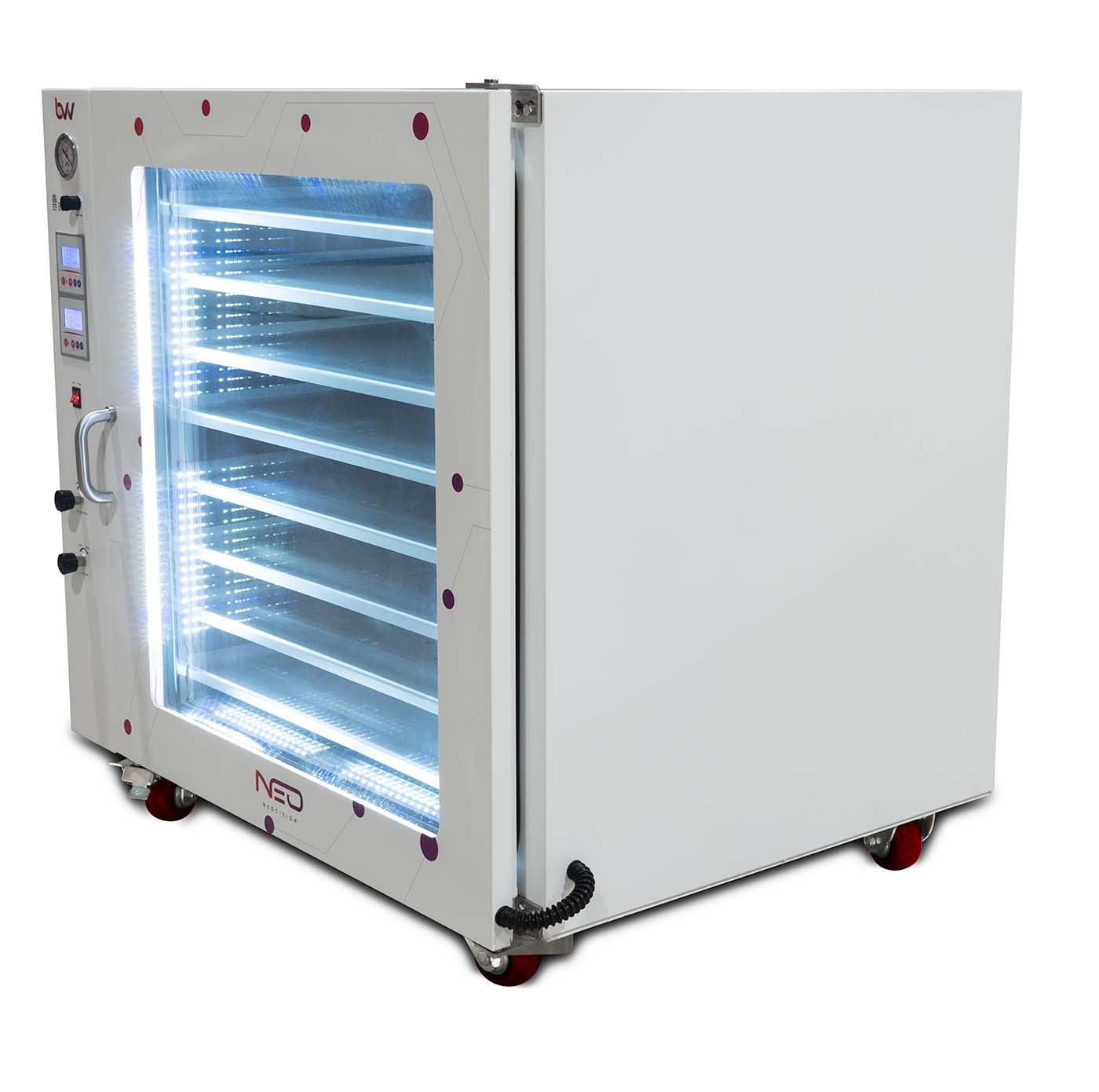

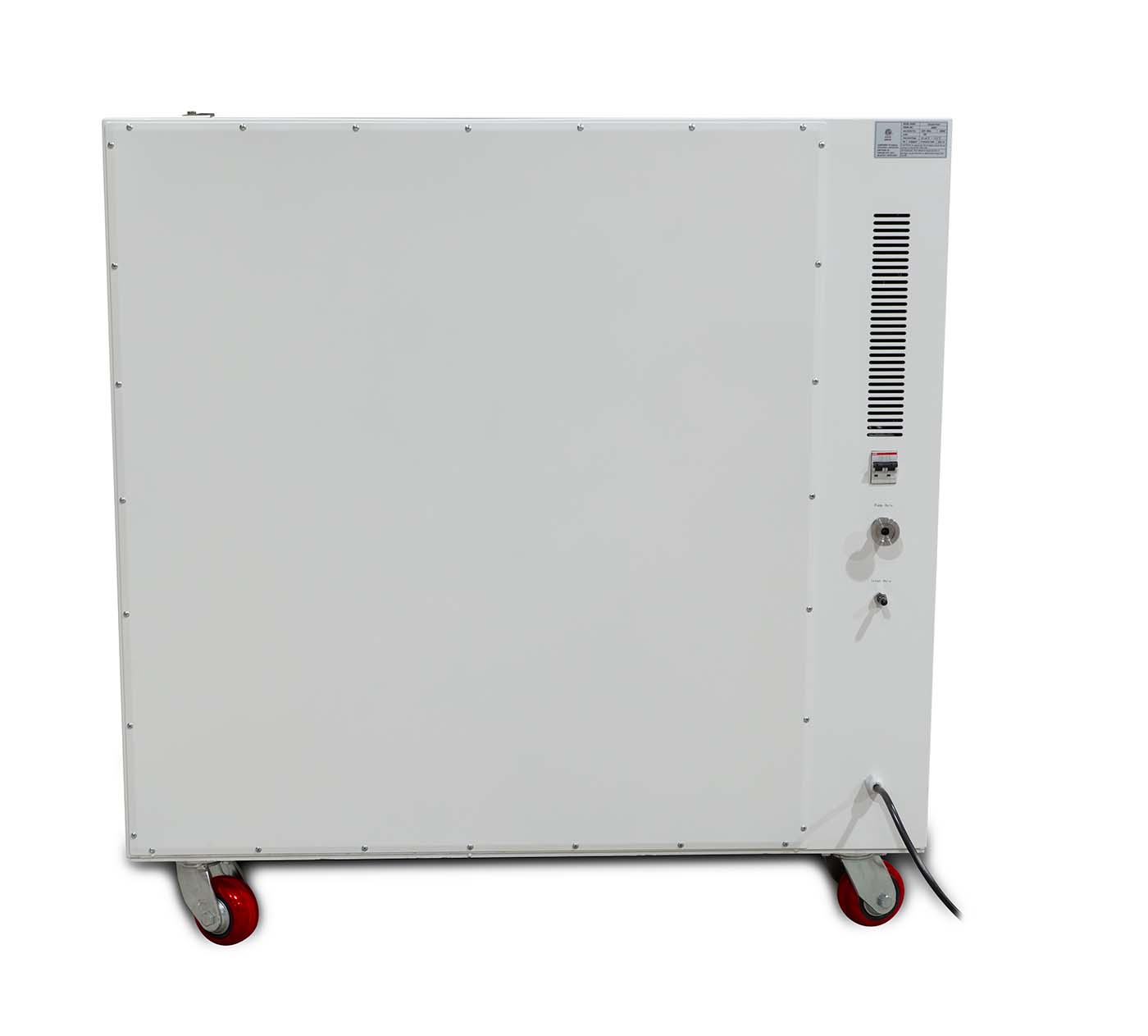

16CF Neocision ETL Lab Certified Vacuum Oven

Save $1,525.00 USD

Price:
Sale price$13,475.00 USD Regular price$15,000.00 USD
Description

16CF BVV™ Neocision Certified Lab Vacuum Oven, 5 Individually Heated Shelves, LED's - 3 Year Warranty


Disclaimer: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in well-ventilated areas!


Introduction


Our vacuum ovens are purpose-built to perform degassing / purging of light hydrocarbon solvents. Using the technique of cold boiling, the oven applies a gentle heat under reduced pressure conditions to expedite solvent degassing while simultaneously preserving color, aroma, and overall solute quality. We've applied our extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-throughput, and reliable operation.


Performance Capabilities


At Best Value Vacs, we make every effort to provide oven performance capabilities in a standardized format. We're not interested in juking our stats to make a sale. Instead, our goal is to provide quality, transparent production capabilities that meet the demands of our professional customers.

  • Temperature Stability: ±1.0°
  • Temperature Uniformity: within 4% of the temperature setpoint.
  • Heat-Up Time: 30 minutes.
  • Ultimate Vacuum: <500 µmHg / mTorr / micron.
  • Time to Vacuum: 10 minutes to 29"Hg using our
  • Vacuum Hold: guaranteed to lose less than 1"Hg (25.4 torr) in 24 hours.





    Technical Data
    Electrical Voltage 120V
    Frequency 60Hz
    Power 2000W
    Current 20A
    Plug NEMA 5-15
    Internal Chamber Heating Individual direct-heat shelves
    Chamber Material Stainless Steel
    Dimensions (LxWxH) 25.5" x 32" x 34"

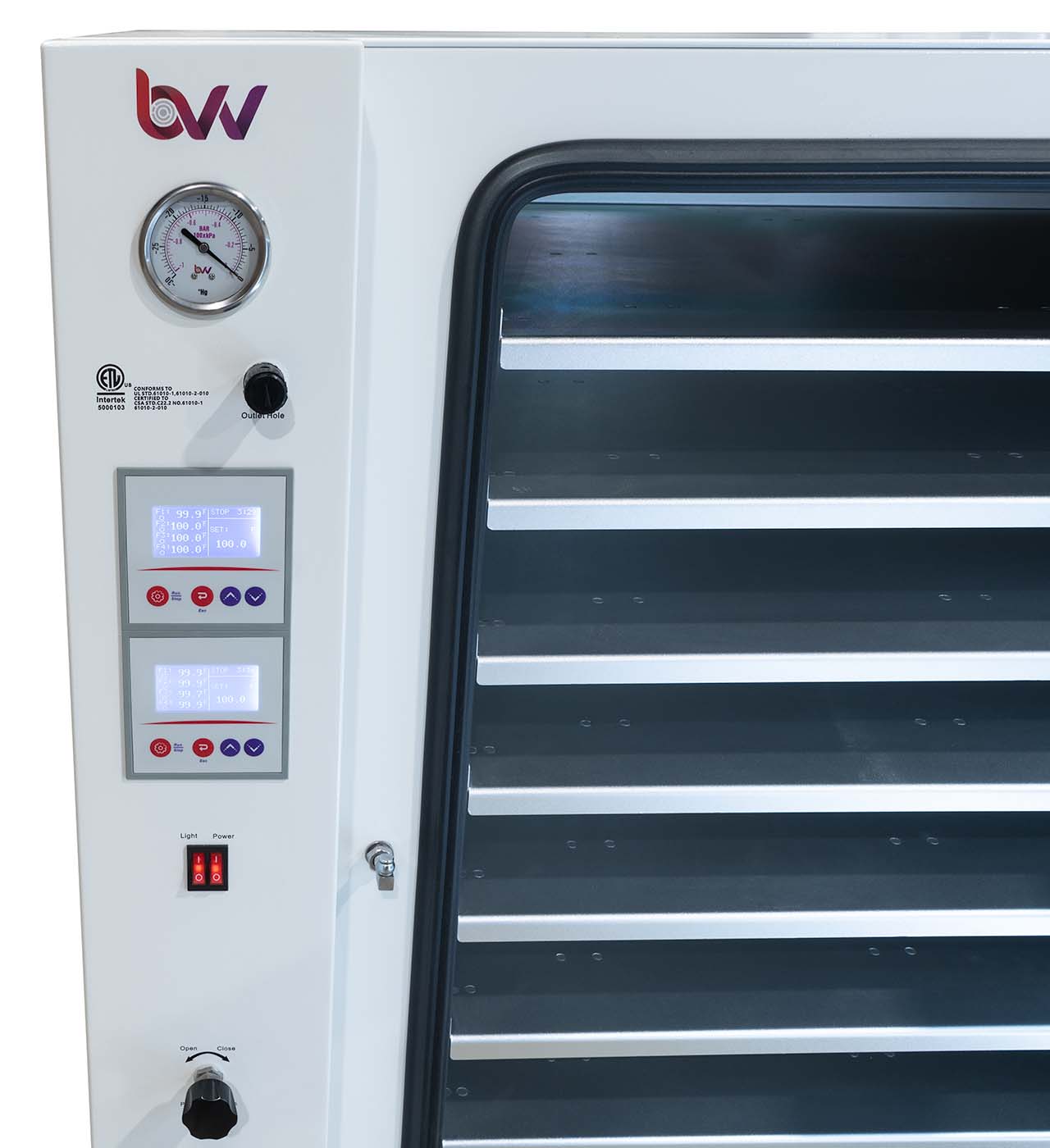

    Vacuum Gauge Style Glycerin-filled for accuracy and longevity
    Range (units) -30 to 0 (inHg) / -1 to 0 (bar)
    Shelving Ships With 8 Shelves
    Shelf Dimensions (LxW) 24.75" x 31.5"
    Shelf Capacity 780 in^2
    Total Shelf Capacity 6240 in^2
    Safety Seal Silicone on Tempered Glass
    Window Dimensions (LxH) 29.25" x 32"
    Lights 4 strips of LEDs provide a clear, bright view of the interior
    Handle No plastic, all metal parts for lifetime durability
    Exterior Dimensions (LxWxH) 37.25" x 45" x 46"
    Weight 500lbs
    Support Locking Casters
    Safety Electrical Built-in, resettable, overcurrent circuit breaker
    Thermal Automatic overtemperature shutoff
    Compliance CE CE Listing Recognized
    ISO ISO 9001:2015
    ETL Certified Conforms to ANSI/UL STD.61010-1, 61010-2-010 -- Certified to CAN/CSA STD. C22.2 NO.61010-1, 61010-2-010
    Connections Vacuum Inlet KF25 / NW25, quarter-turn valve
    Purge Inlet 5/16" Barbed, 10-turn valve
    Atmospheric Release Quick-release dial
    Contains Ships With KF25 x 1/4" JIC Flare with 1/4" vacuum hose
    User Manual Included
    Vacuum Pump Sold Separately.
    Recommended Pump
    Warranty 3 Years



    Capacity and Throughput Planning

    Oven capacity requirements vary widely by the producer. We wanted to create a method to assist in determining the best oven match for your operation, based on a few of the parameters of your extraction and of your desired purge. We based this formula on an expected extraction yield of 25%, with an extract-density of 1 g/in2. Using the following variables, this formula is designed to provide an estimate of your required shelving capacity:

    • Size = Extraction Batch Size (lbs)
    • Number = Runs per 24h Period
    • Purge = Your desired purging duration (hours)
    • Area Required (ft2) = [(Size) * (Number) * (Purge+1)] / 122
    • Area Required (in2) = (Size) * (Number) * (Purge+1) * 1.18



    Note: This item is a freight ship item and will ship Via UPS Ground Freight. Expedited freight can only be calculated by calling customer service 331-281-0154. All orders with expedited freight through the website will not be honored and will need to be re-quoted. A valid Phone Number IS REQUIRED to ship, Otherwise UPS freight Cannot Contact you for a delivery setup window. Freight Time is 2-5 Days. West Coast 5 Days, Midwest 2 days, East Coast 3-4 days.
