Across International 15mm Diameter ID Dry Pressing Die Set

Save $7.18 USD
No reviews

Price:
Sale price$351.82 USD Regular price$359.00 USD
Description

A set of 15mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 15mm diameter cylinder-shape pellets.

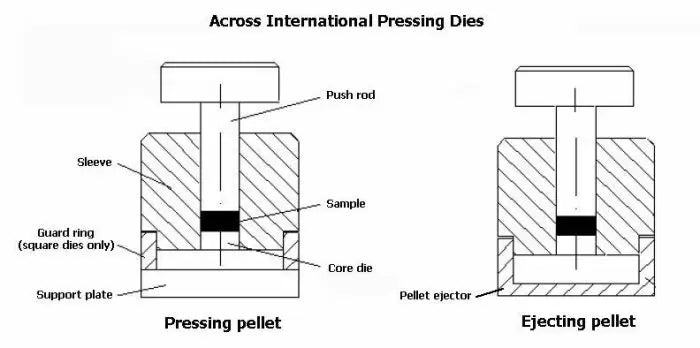

Die set includes

  • Two 15mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector

Important

  • Always wear protection goggles during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 20 tons. Across International is not responsible for any damage caused by misuse.
Specifications
Specifications
Maximum Pressure 20 metric tons
Rockwell Hardness Rc 62
Diameter (ID) 15 mm
Height 90 mm (assembled without sample)
Sleeve Height 45 mm
Sleeve Diameter (OD) 39 mm
Tolerance 0.01-0.02 mm (10-20 micron)
Material:
    Core die & push rod
    Sleeve, ejector & support

W18Cr4V hardened carbon tool steel
Cr12 hardened carbon tool steel
Max sample fill height Not to exceed 1/3 of the sleeve height
