150L 304SS Jacketed Collection and Storage Vessel with Locking Casters

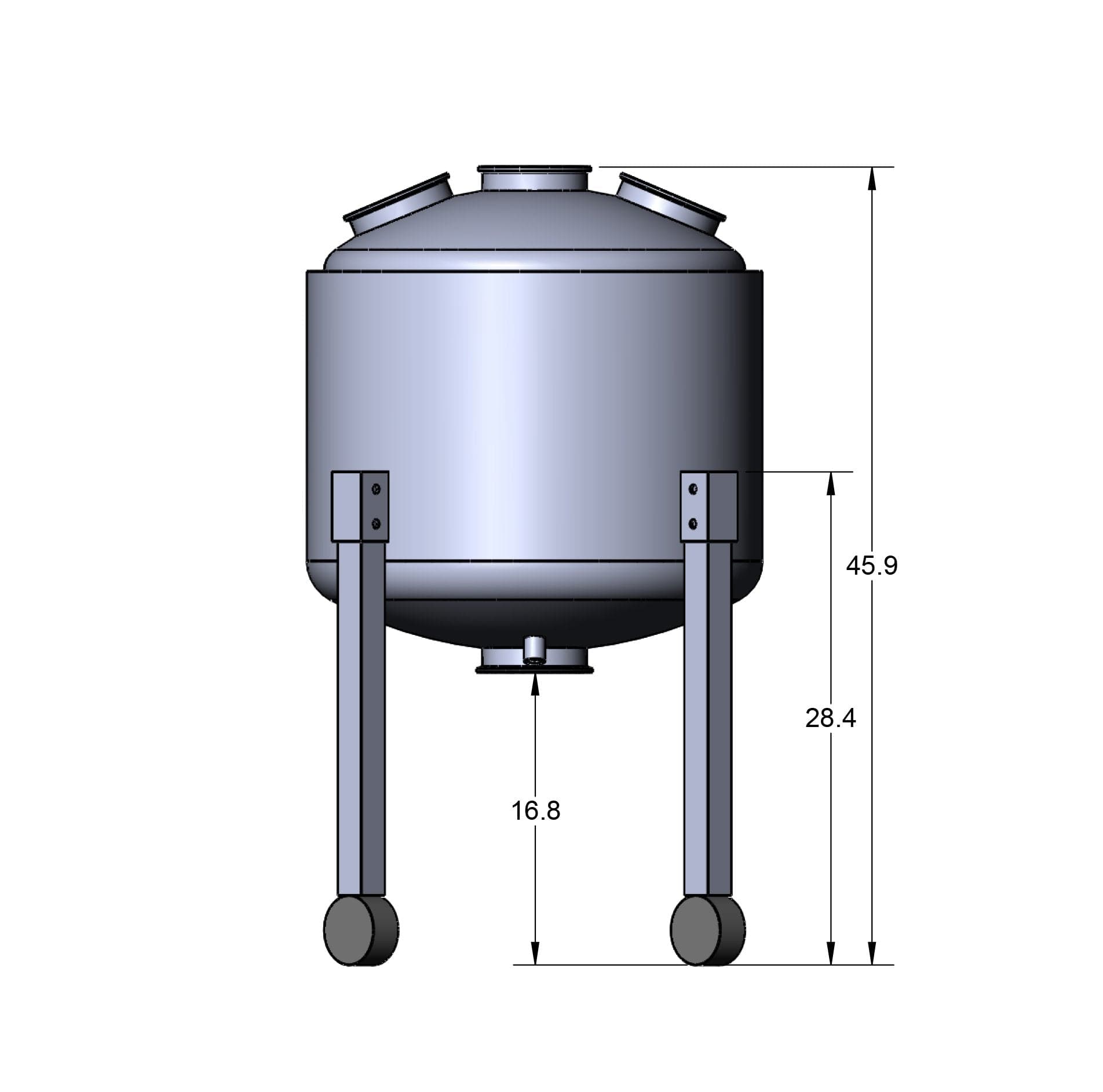

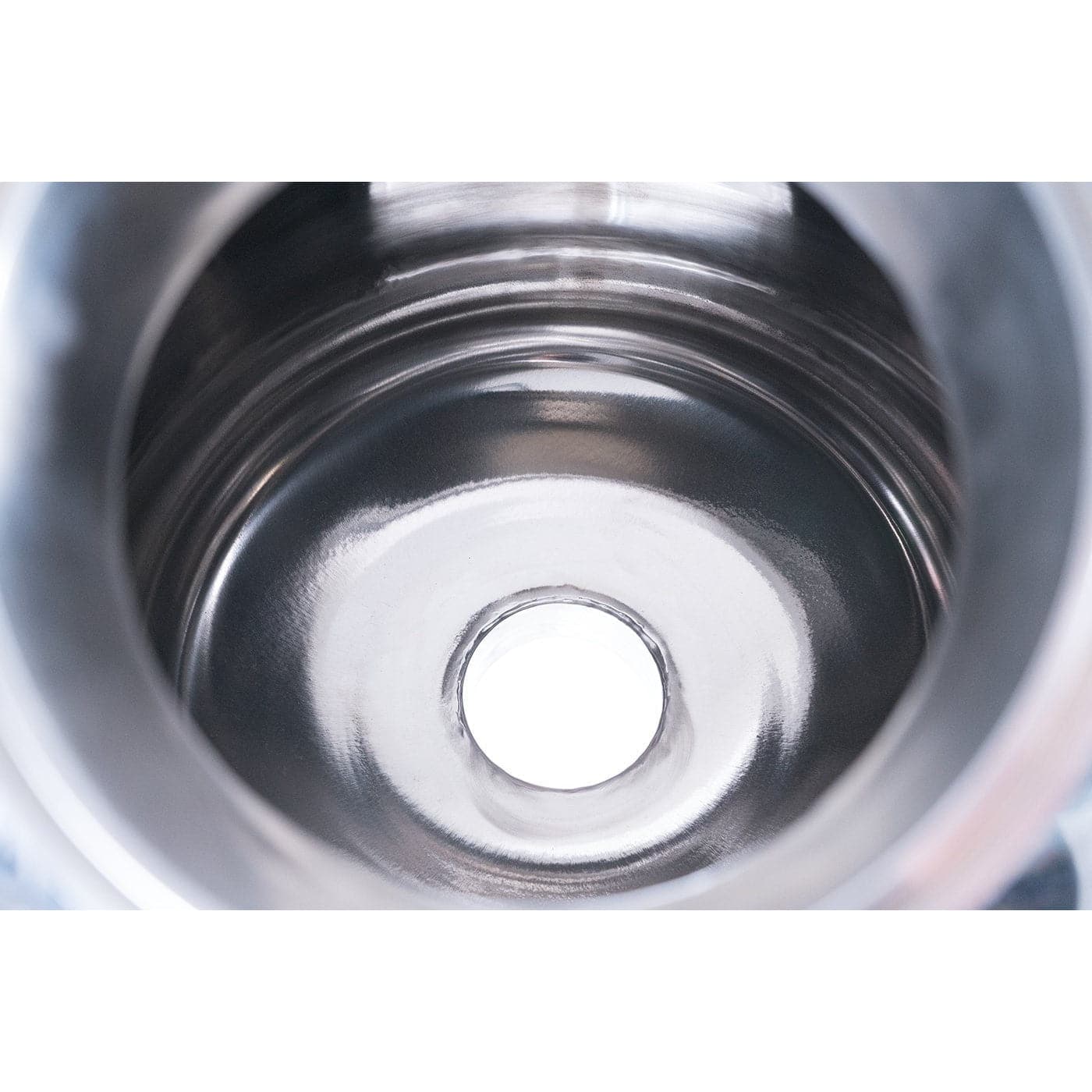

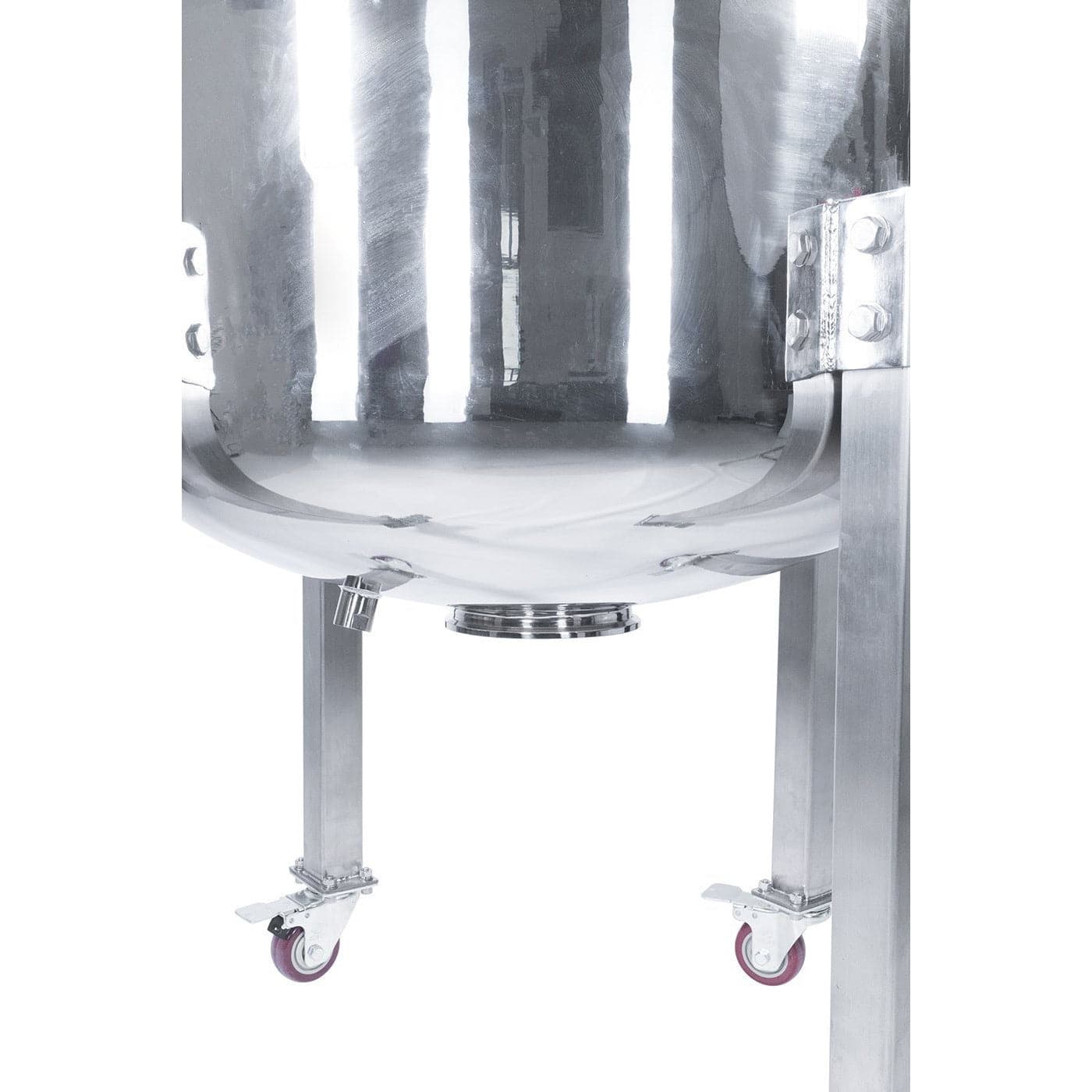

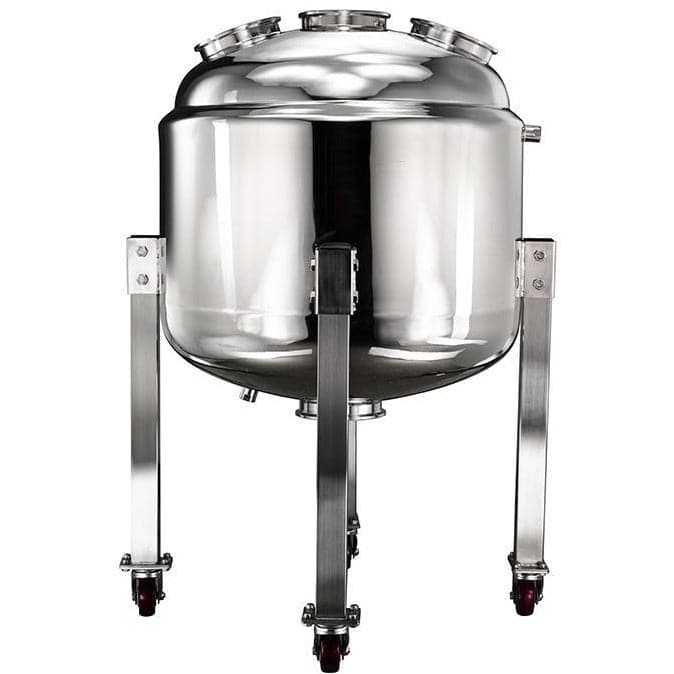

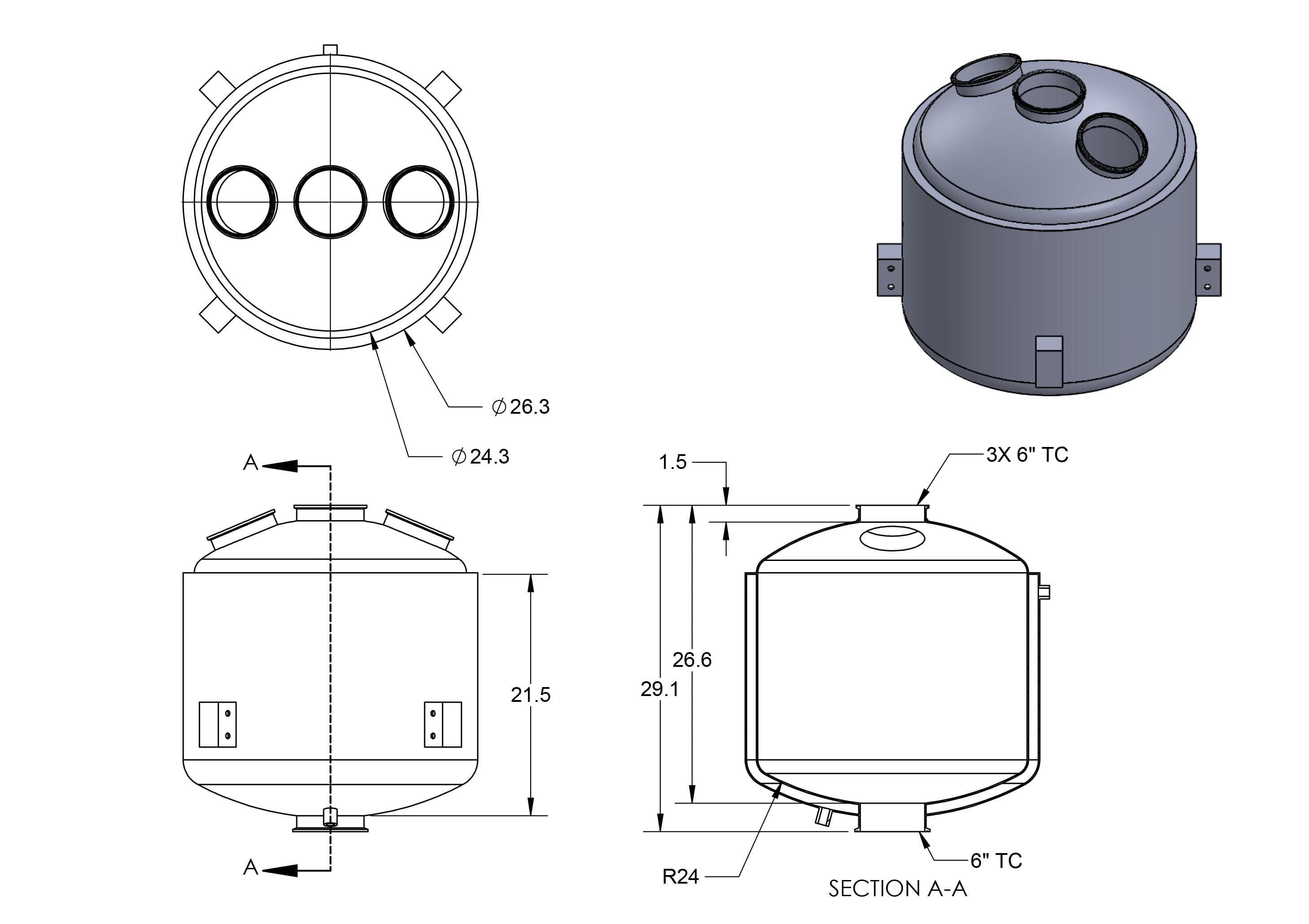

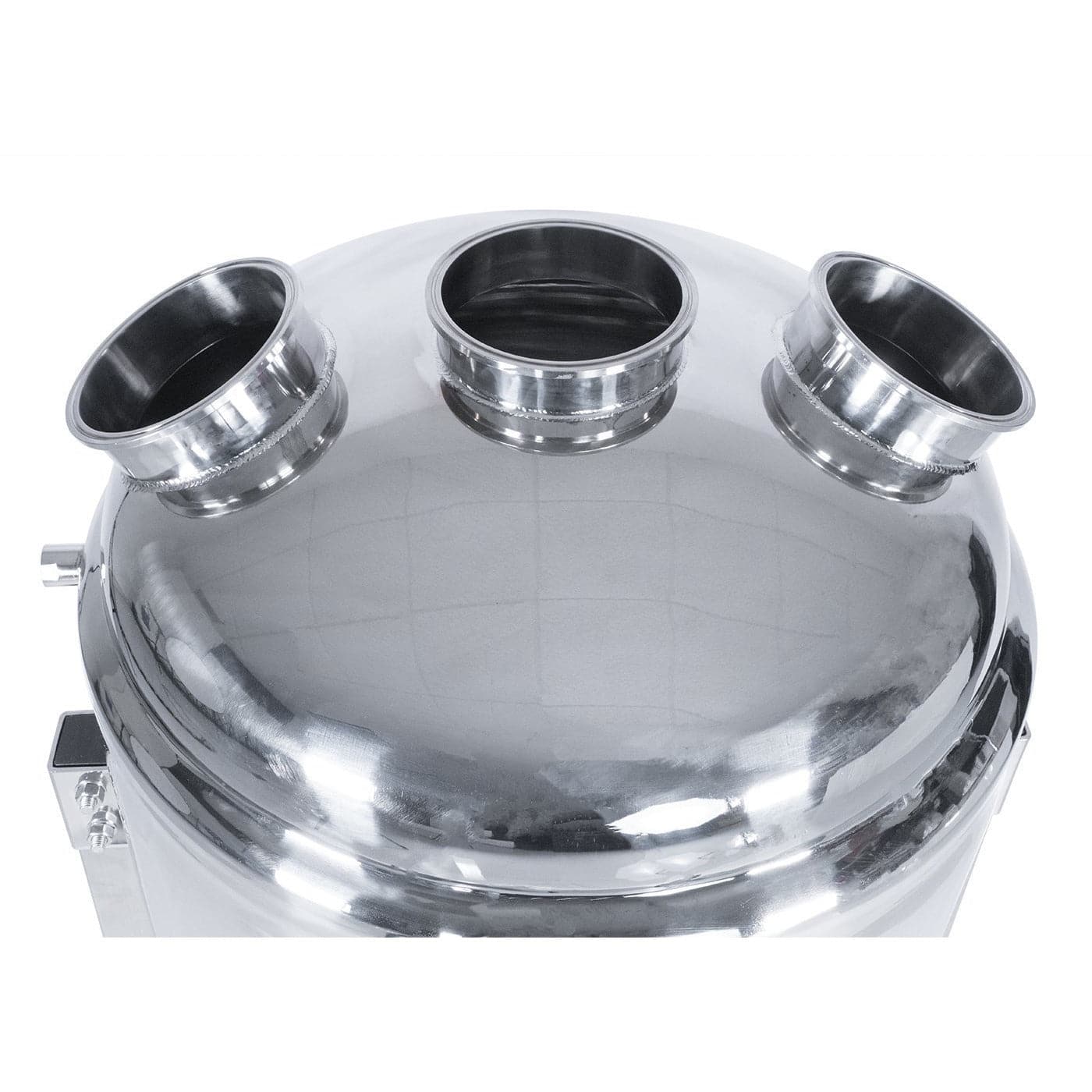

This massive 304 Stainless Steel Jacketed vessel can hold up to 150L of water (~40 gallons) and has a (3) 6" Tri-Clamp/ Tri Clover ports on the top and a 6" Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2" FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 21.5L or 5.68 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily including 32" and wider doorways. (Note: this unit comes bare and does not include any fittings besides the legs with casters.)
| Specifications | |
|---|---|
| Material | 304 Stainless Steel |
| Pressure Rating |
250 PSI MAX Outer Jacket Rating: 100 PSI |
| Connection Type(s): | (3) 6" Tri-Clamp Top Ports |
| 6" Tri-Clamp Bottom Port | |
| (2) 1/2" FNPT Ports on the jacket | |
 *High Pressure Clamps are required when using pressure greater than 100 PSI
***Note: This item will ship via freight ONLY.
