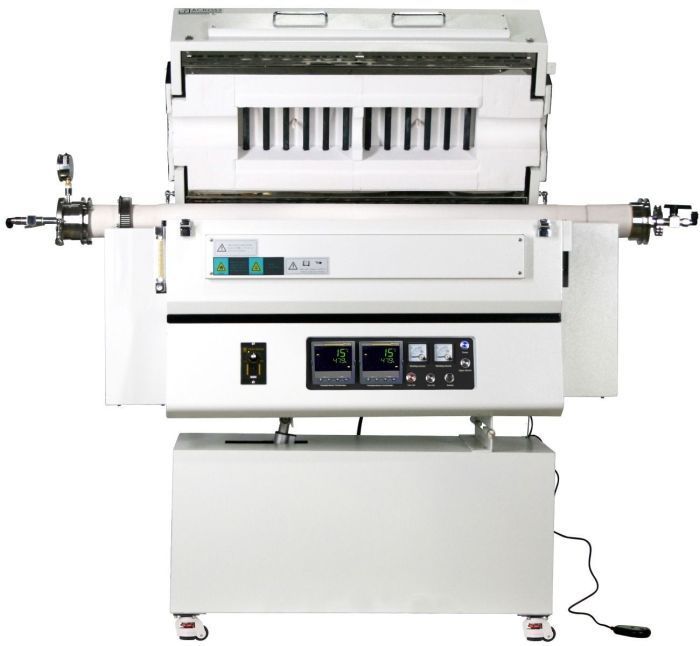

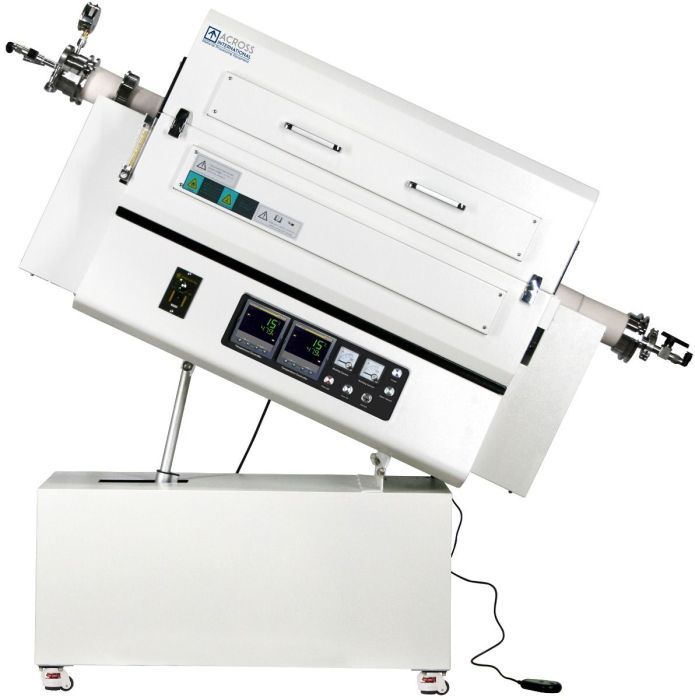

RTF1500 series top-open rotary and tilting top-open tube furnaces feature a chamber with MitsubishiĀ (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled byĀ Eurotherm (UK) multi-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features
- Top-open furnace chamber for fast and easy tube access.

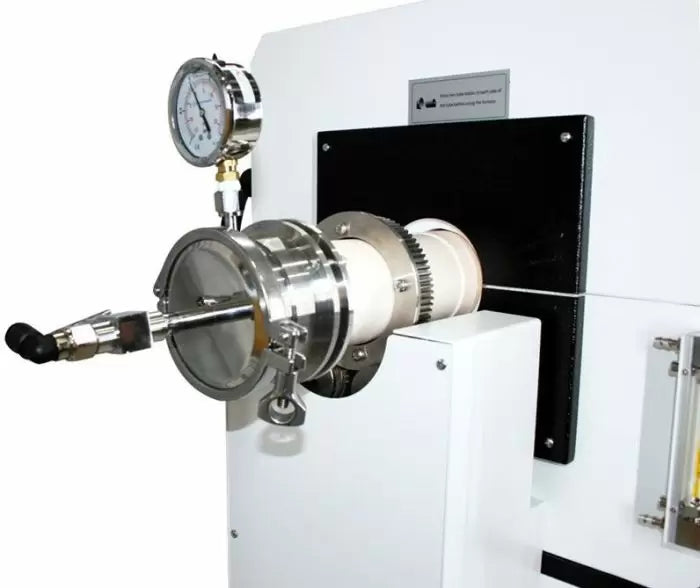

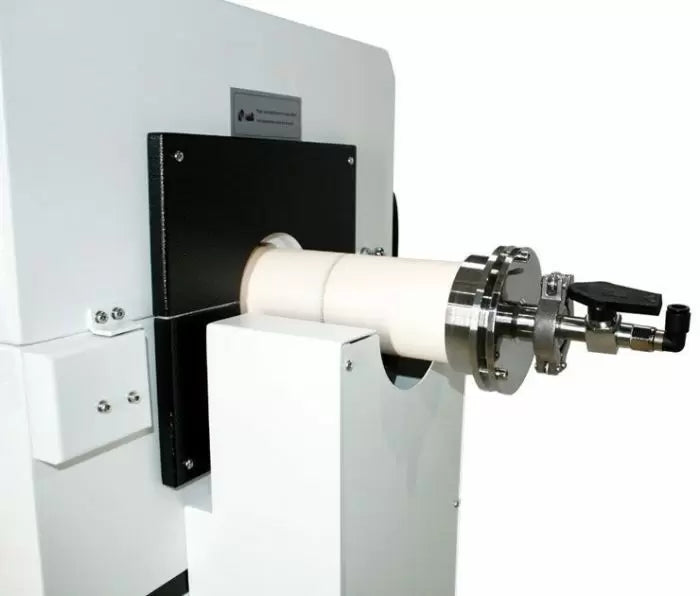

- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

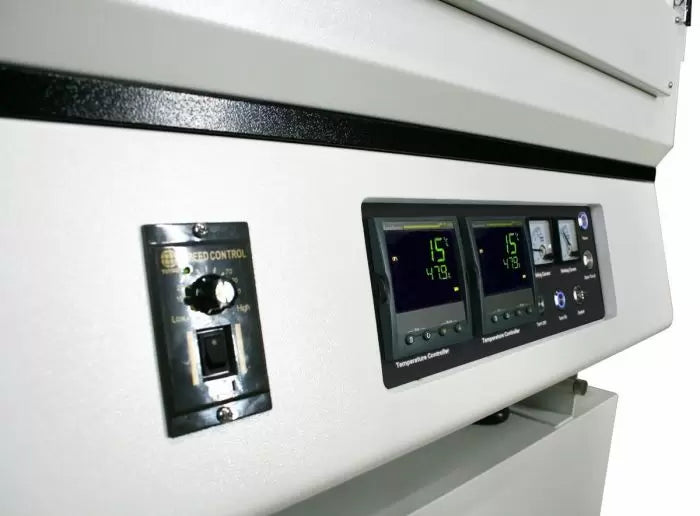

- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
Ā
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
- Limit switch turns off furnace once top is open.
Ā
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
Ā
Ā
Ā
Ā
Ā
Ā

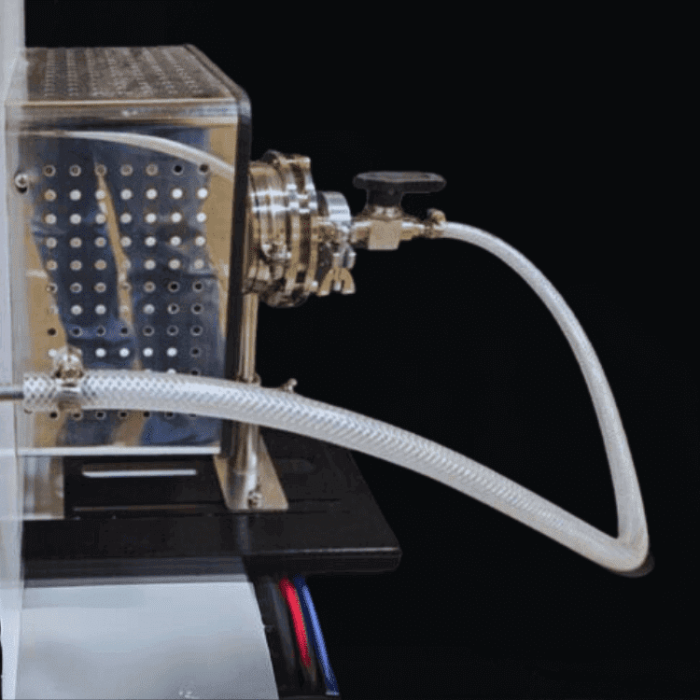

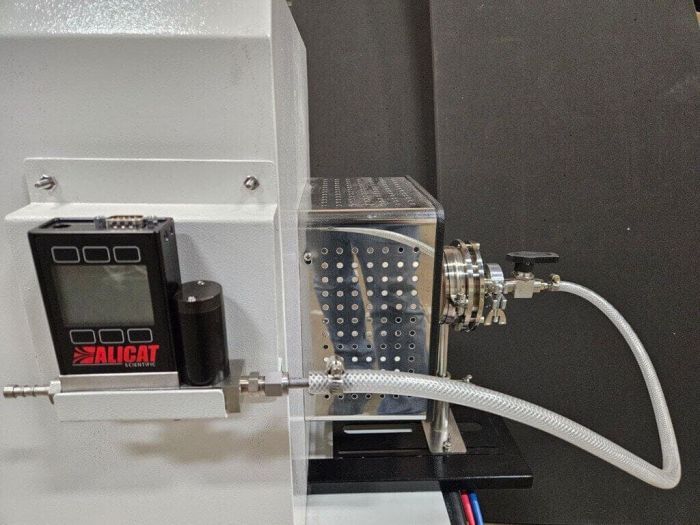

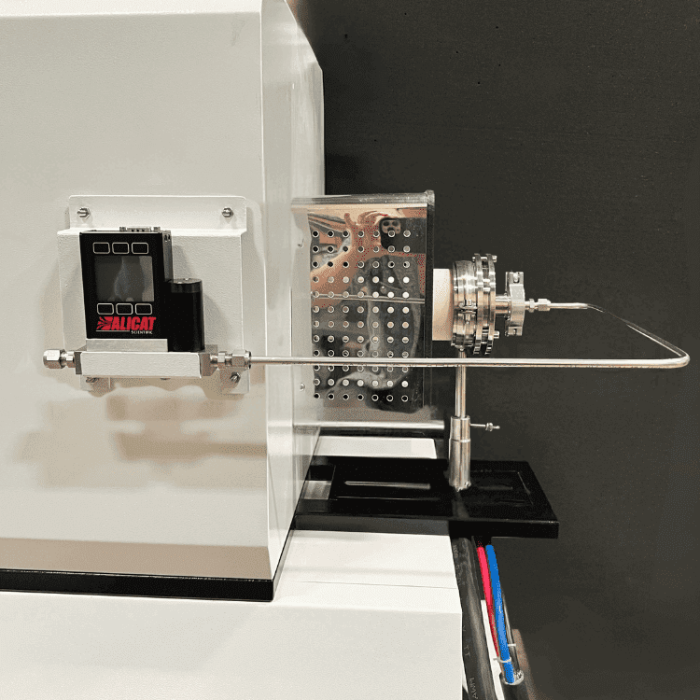

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**
Ā
Tubing sold separatelyĀ
| Ā Model | Ā RTF1500 |
| Ā Electrical requirements | Ā 208-240 volts 50/60Hz single phase |
| Ā Rotation speed & Inclination | Ā 1 to 25 rpm, 0 to 30Ā° |
| Ā Tube materialĀ | Ā Ceramic Tube |
| Ā Maximum / constant working temperatureĀ | Ā 1500Ā°CĀ Ā / 1400Ā°C Ā * 2 hours maximum continuous run time at maximum temperature |
| Ā Rated vacuum pressure | Ā 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Ā Rated positive pressure | Ā 0.02 MPa / 150 torr / 3 psi |
| Ā Refractory lining | Ā MitsubishiĀ (Japan) high qualityĀ 1600 grade fiber alumina |
| Ā Heating element and thermocouple | Ā Silicon carbide (SiC) / S-type |
| Ā Temperature controller | Ā EurothermĀ multi-segment digital controller |
| Ā Max heating rate | Ā 5Ā°C (41Ā°F)/min above 1200Ā°C and 10Ā°C (50Ā°F)/min below 1200Ā°C (2192Ā°F) Ā Ā |
| Ā Temperature controller precision | Ā Ā± 1Ā°C |
| Ā Vacuum sealing flange kit | Ā Stainless steel vacuum sealing flanges with one Ā Ā Ā vacuum gauge,Ā two valves and four thermal ceramic blocks. Ā |
| Ā Gas inlet/outlet | Ā 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread) |
| Ā Compliance | Ā CE |
| Ā Warranty | Ā 1 year |
Ā Model Comparison
|
Zone |
1-Zone |
1-Zone |
2-Zone |
2-Zone |
3-Zone |
3-Zone |
|
Tube size (OD x L) |
60mmx1.2m |
80mmx1.2m |
60mmx1.2m |
80mmx1.2m |
60mmx1.4m |
80mmx1.4m |
|
Heating zone |
15.4ā |
15.4ā |
7.5+7.5ā |
7.5+7.5" |
7.5+7.5+7.5" |
7.5+7.5+7.5" |
|
Maximum output |
6 KW |
6 KW |
6 KW |
6 KW |
9 KW |
9 KW |
|
Eurotherm controller |
1 pc |
1 pc |
2 pcs |
2 pcs |
3 pcs |
3 pcs |
|
Furnace dimensions (LxWxH) |
23x15x41" |
26x17x43" |
23x15x41" |
26x17x43" |
27x19x45" |
30x21x47" |
|
Shipping dimensions (LxWxH) |
37x21x46" |
37x21x46" |
37x21x46" |
37x21x46" |
41x25x51" |
41x25x51" |
|
Shipping weight (Lb) |
485 |
550 |
485 |
550 |
530 |
630 |
|
Part description |
Ā Quantity |
Part image |
| Ā RTF1500 top-open rotary & tilting tube furnace | Ā 1 pc | |
| Ā Alumina Tube | 1 pc | |
| Ā KF25 Bellow | 2 pcs | |
| Ā KF25 Rotating Coupler | 2 pcs | |
| Ā Stainless steel vacuum sealing flanges w/ pressure gauge | Ā 1 set | |
| Ā Flange O-rings | 4 pcs | |
| Ā Double Sided Steek Hook | 1 pc | |
| Ā Quartz Thermal Block (If applicable) | 1 pair | |
| Ā Ceramic thermal Block (if applicable) | 1 pair | |
| Ā KF25 wing nut flange quick clamp | 6 pcs | |
| Ā KF25 flange centering ring | 6 pcs | |
| Ā Thermal gloves | Ā 1 pair | |
| Ā USB/RS485Ā computer interface kit | Ā 1 set | |
| Ā Spare Heating Elements | 2 pcs | |
| Ā Furnace and controller manual | 2 pcs | |
| Ā UL Fuses | 1 set | |
| Ā Eurotherm USB OR Shimaden CD for software | 1 pc |
