VACUUM PUMP MOBILE CART ONLY AVAILABLE IF YOU PURCHASE A PUMP AND A DIGITAL VACUUM CONTROLLER.
TF1400 series Chemical Vapor Deposition (CVD) tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Eurotherm (UK) digital controller with built-in communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace.
Controller Option:
3504 can do 50 segments programmer (ramp and dwelling)
Features
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Dual flanges support ensures better sealing and longer tube life.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type S thermocouple.
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
| Tube Material | High purity (99%) Al2O3 alumina |
| Min/max./Constant Working Temperature | Ambient / 1400°C (2552°F) / 1300°C (2372°F) |
| Refractory Lining |
Mitsubishi (Japan) high quality1600 grade fiber alumina |
| Heating Element |
Silicon carbide (SiC) |
| Thermocouple Type |
S |
| Temperature Controller |
Eurotherm (UK) |
| Max Heating Rate |
5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F) |
| Temperature Controller Precision |
+/- 1°C (+/- 1.8°F) |
| Vacuum Sealing Flange Kit |
Stainless steel vacuum sealing flanges with one mechanical vacuum gauge, two valves and four thermal ceramic blocks. |
| Electrical requirements |
208-240VAC, 50/60 Hz, single phase |
|
Part description |
Quantity |
Part image |
| TF1400 one or multi-zone tube furnace |
1 pc |
|
| Multi-channel gas supply system | 1 pc | |

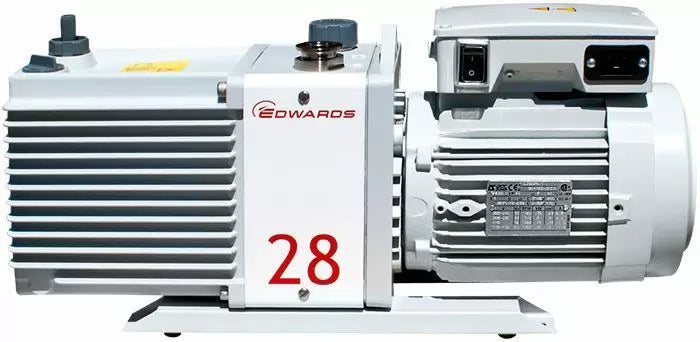

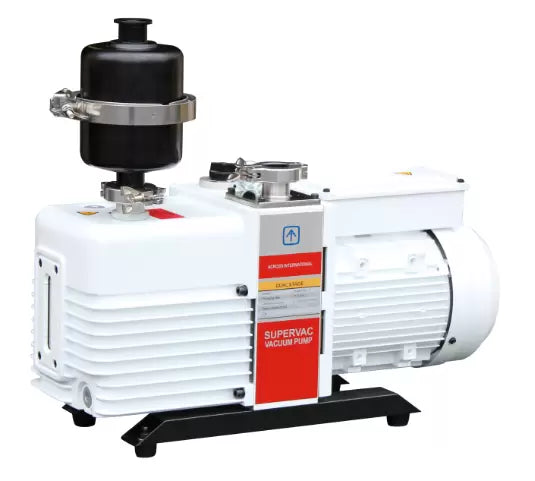

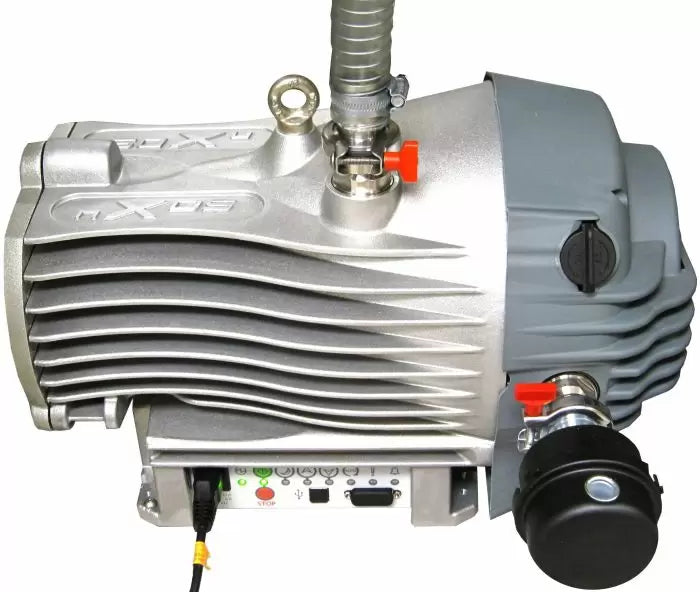

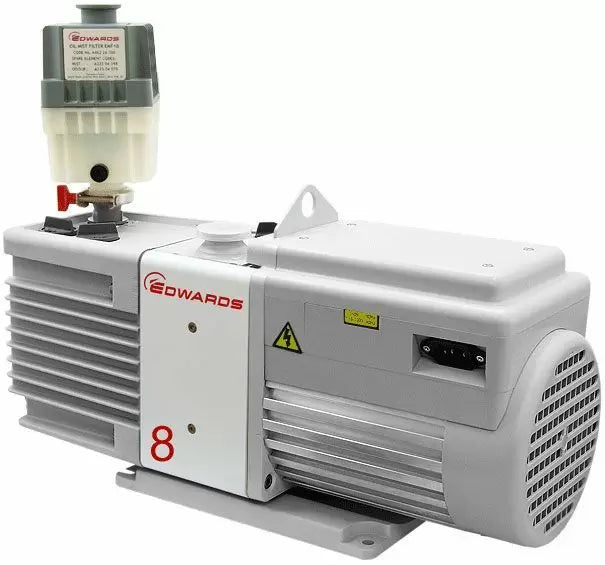

| Vacuum pump, exhaust filter and fittings (optional) |
1 pc | |
| Stainless steel vacuum sealing flange set w/ pressure meter |
1 set |
|
| Alumina tube |
1 pc |
|
| Spare heating element |
2 pcs |
|
| Stainless steel hook |
1 pc |
|
| Thermal block |
1 set |
|
| Thermal gloves | 1 pair |
|
| Spare fuse | 2 pcs |
|
| Interface kit | 1 set |
|
| Furnace and controller users manual | 2 pcs |
|
