Across International 13mm Diameter ID Vacuum Dry Pressing Die Set

Save $11.18 USD
Power Lab Supply 2SKU: SDS13.V

Price:
Sale price$547.82 USD Regular price$559.00 USD
Description

A set of 13mm diameter (ID) hardened steel dry vacuum pressing die set for pellet presses, ready for you to make 13mm diameter cylinder-shape pellets in a vacuum condition.

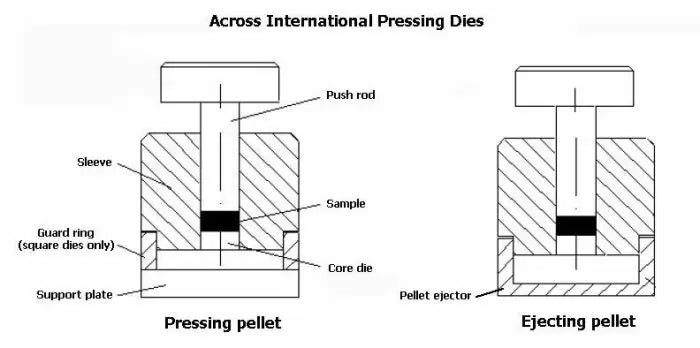

Die set includes

  • Two 13mm ID core dies made of highly polished hardened steel
  • One steel sleeve with vacuum connector
  • One steel support plate
  • One pushing rod
  • Rubber sealing o-rings
  • One steel cylinder pellet ejector

Important

  • Always wear protection goggles and gear during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 15 tons. Across International is not responsible for any damage caused by misuse.
Specifications
Specifications
  • Maximum Pressure:         15 tons
  • Rockwell Hardness:          Rc 62
  • Diameter (ID):                 13 mm
  • Height:                           75 mm (assembled without sample)
  • Sleeve Height:                 40 mm
  • Sleeve Diameter (OD):     39 mm
  • Tolerance:                      0.01-0.02 mm (10-20 micron)
  • Material:
    • Core die & push rod:          W18Cr4V hardened carbon tool steel
    • Sleeve, ejector & support:  Cr12 hardened carbon mold steel
  • Max sample fill height:     Not to exceed 1/3 of the sleeve height

Die set includes

  • Two 13mm ID core dies made of highly polished hardened steel
  • One steel sleeve with vacuum connector
  • One steel support plate
  • One pushing rod
  • Rubber sealing o-rings
  • One steel cylinder pellet ejector

Important

  • Always wear protection goggles and gear during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 15 tons. Across International is not responsible for any damage caused by misuse.
