Description
A set of 13mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 13mm diameter cylinder-shape pellets.

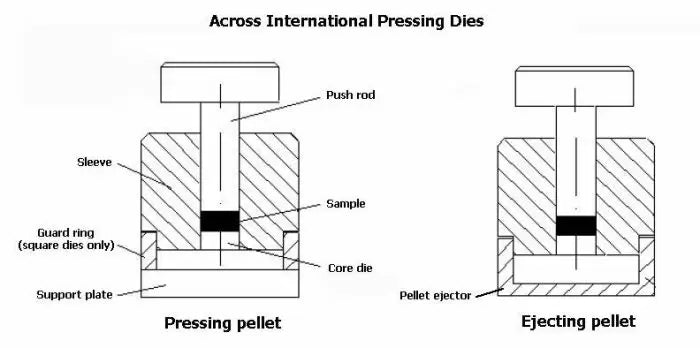

Die set includes
- Two 13mm ID cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve
- One steel support plate
- One push rod
- One pellet ejector
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 15 tons. Across International is not responsible for any damage caused by misuse.
| Maximum Pressure | 15 tons |
| Rockwell Hardness | Rc 62 |
| Diameter (ID) | 13 mm |
| Height | 75 mm (assembled without sample) |
| Sleeve Height | 40 mm |
| Sleeve Diameter (OD) | 39 mm |
| Tolerance | 0.01-0.02 mm (10-20 micron) |
| Max sample fill height | Not to exceed 1/3 of the sleeve height |
| Material | W18Cr4V hardened carbon tool steel |
Â
Â
Die set includes
- Two 13mm ID cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve
- One steel support plate
- One push rod
- One pellet ejector
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 15 tons. Across International is not responsible for any damage caused by misuse.
