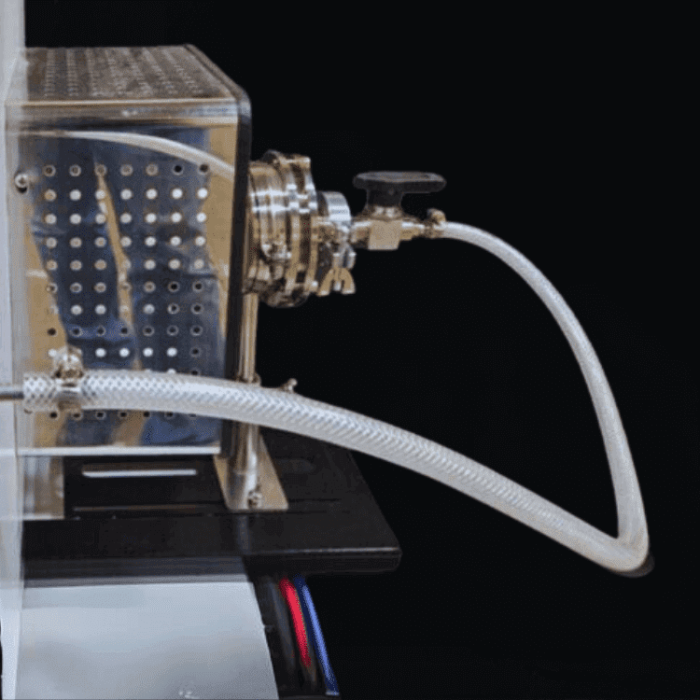

1200C 1-Zone 25mm OD Compact Rotary Top-Open Tube Furnace

Save $263.60 USD
Power Lab Supply 2SKU: RTF1200.25
No reviews

Price:
Sale price$6,326.40 USD Regular price$6,590.00 USD
Description
Ā

Ā

Ā

Ā

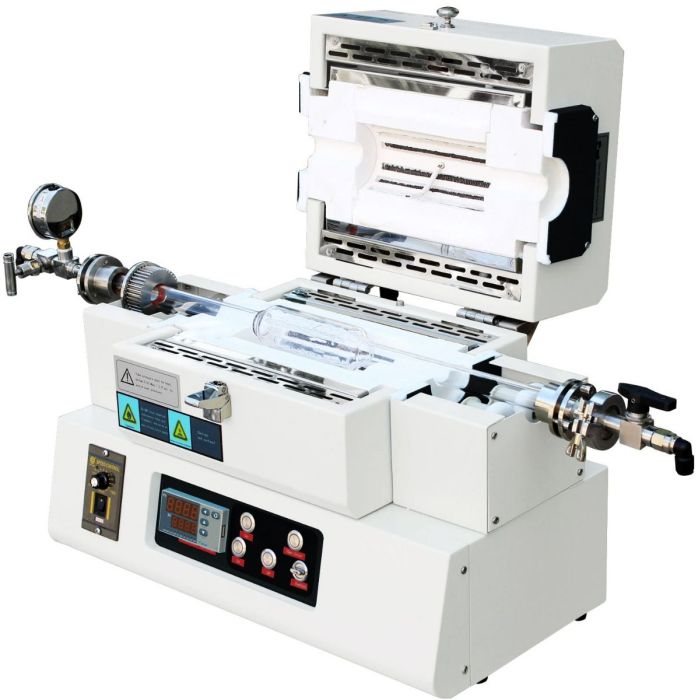

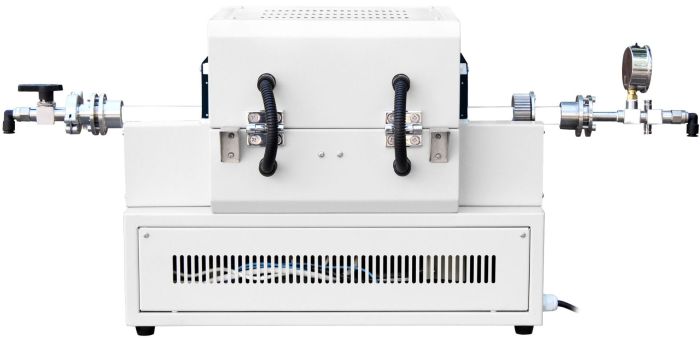

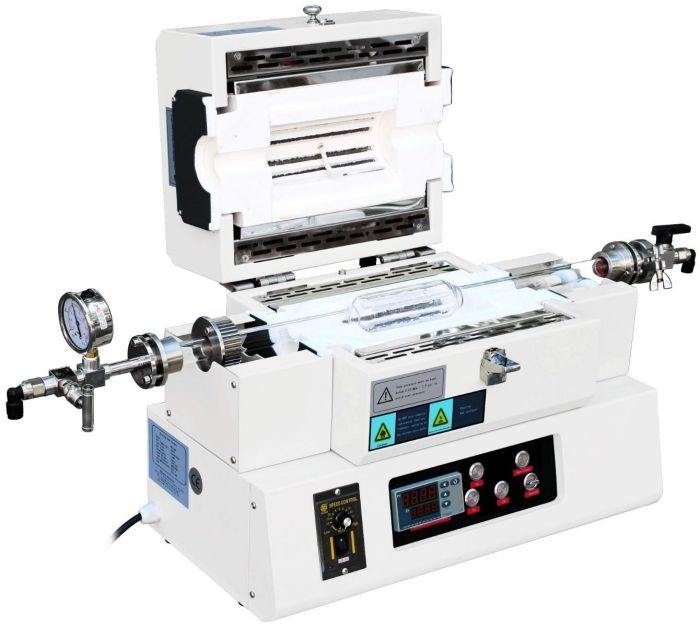

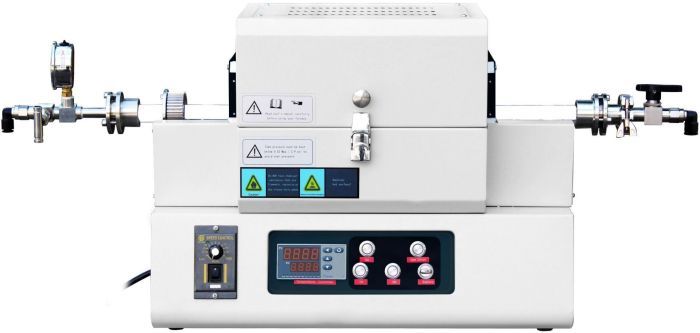

RTF1200 25mm OD compact top-open rotary tube furnaces feature spiral wire coils embedded in MitsubishiĀ (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.Ā Furnace operation is controlled by a multi-segment digital controller.

Ā

Features

  • Compact, portable and lightweight design.
  • Top-open furnace chamber for fast and easy tube access.
  • Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
  • Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
  • Long life type K thermocouple.

Safety

  • Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
  • Limit switch turns off furnace once top is open

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

Ā

How to Install an Across International Tube Sealing Flange

Specifications
Specifications
Ā Electrical requirements Ā 115V, 50/60Hz, 1~phase, 1,500 watts
Ā Tube
Ā 25mm OD x 700mm L, Quartz
Ā * 2" diameter x 5" L in the center with baffle
Ā Maximum working temperature Ā 1200Ā°CĀ Ā (2 hours maximum continuous run time)
Ā ConstantĀ working temperature Ā 1100Ā°C
Ā Rotation speed Ā 0 to 20 rpm
Ā Constant working temperature under vacuum Ā 1000Ā°C
Ā Rated vacuum pressure Ā 0.001 Pa / 0.0075 millitorr / 0.00001 mbar
Ā Rated positive pressure Ā 0.02 MPa / 150 torr / 3 psi
Ā Heating element type
Ā Kanthal-A1Ā resistance coil wire
Ā Thermo couple type Ā K
Ā Refractory lining Ā MitsubishiĀ (Japan)Ā 1500 grade fiber alumina
Ā Temperature controller Ā Single PID, 30 segments
Ā Maximum heating rate Ā  Ā < 30Ā°C/min (recommended 15Ā°C/min)
Ā Heating zone length Ā 8"
Ā Temperature controller precision
Ā +/- 1Ā°C
Ā Vacuum sealing flange kit

Ā Stainless steel vacuum sealing flanges with oneĀ vacuum gauge,
two valves and four thermal ceramic blocks. Ā  Ā  Ā

Ā Gas inlet/outlet Ā 1/4" hose barb with 1/4" BSPP (British standard parallel pipe)
Ā Unit dimensions Ā 23 x 14 x 17.5" (WxDxH) without tube
Ā UnitĀ weight Ā 140Ā Lb
Standard Packages
Standard package

Ā

Part descriptionĀ Ā Ā Ā

Ā

Ā Ā Ā

Ā  QuantityĀ Ā

Ā

Ā

Part imageĀ

Ā

Ā RTF1200 25mm OD top-open rotary tube furnace Ā 1 pc

Ā Quartz tube 25mm OD x 700mm L
Ā  * 2" diameter x 5" L in the center with baffle
1 pc

Ā Stainless steel vacuum sealing flanges w/ pressure meterĀ  Ā 1 set

Ā Stainless steel hook Ā 1 pc

Ā Thermal block 1 set

Ā Spare fuse 2 pcs
Ā Thermal gloves Ā 1 pair

Ā Furnace operation manual Ā 1 pc

Ā
