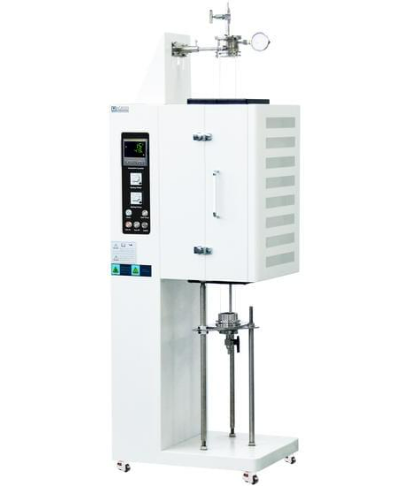

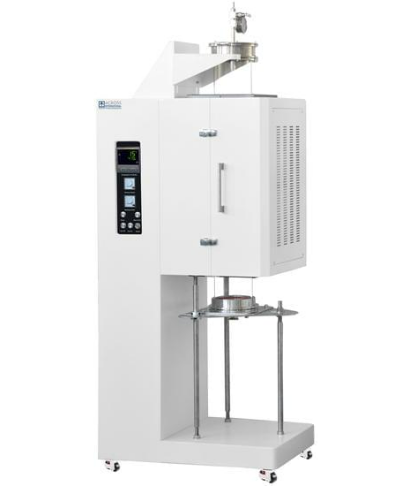

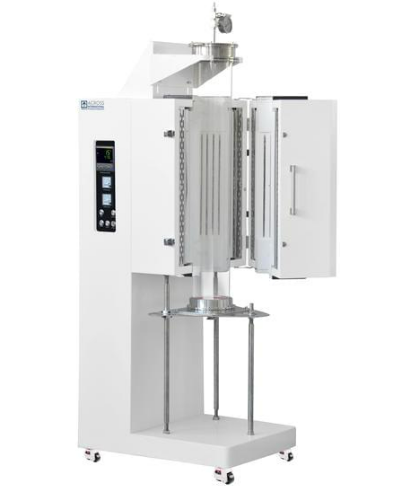

Ai VTF1200 series split open chamber vertical tube furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high-quality grade 1500 alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface.
Furnace operation is controlled by Eurotherm (UK), allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features

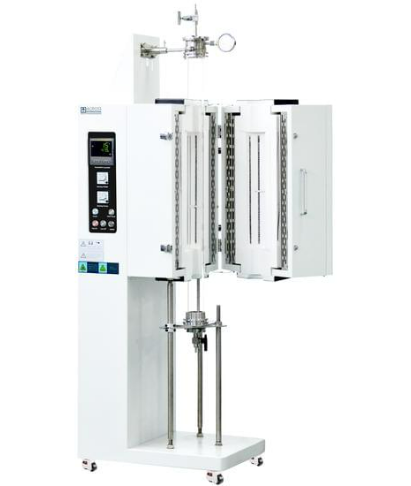

- Swing-open furnace chamber for fast and easy tube access.

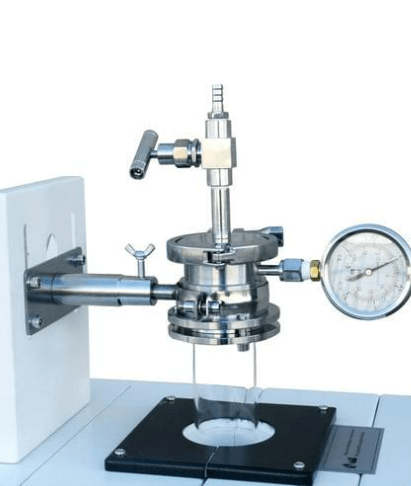

- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type K thermocouple.
Safety
- Overheat protection shuts down the furnace if the temperature is outside of the acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill the furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane.

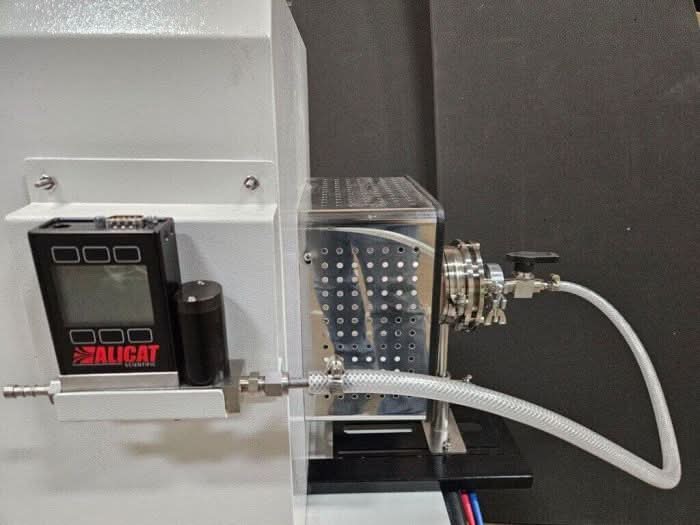

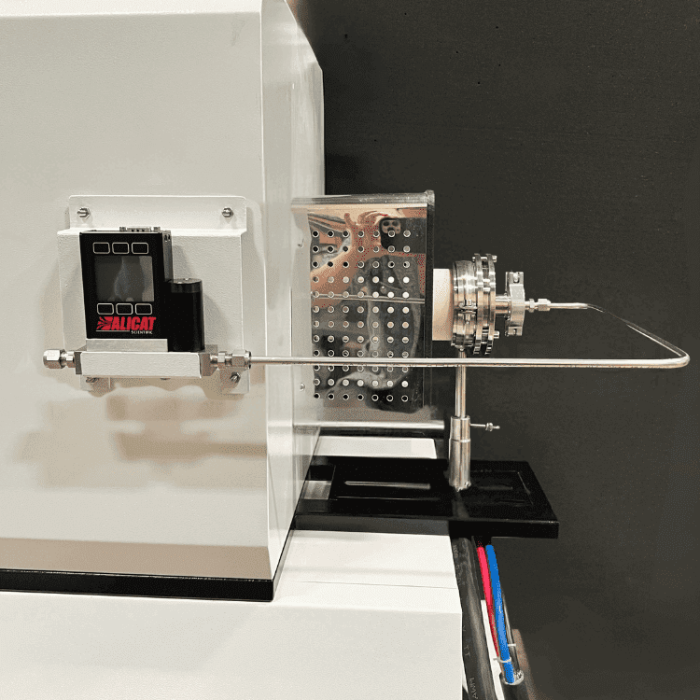

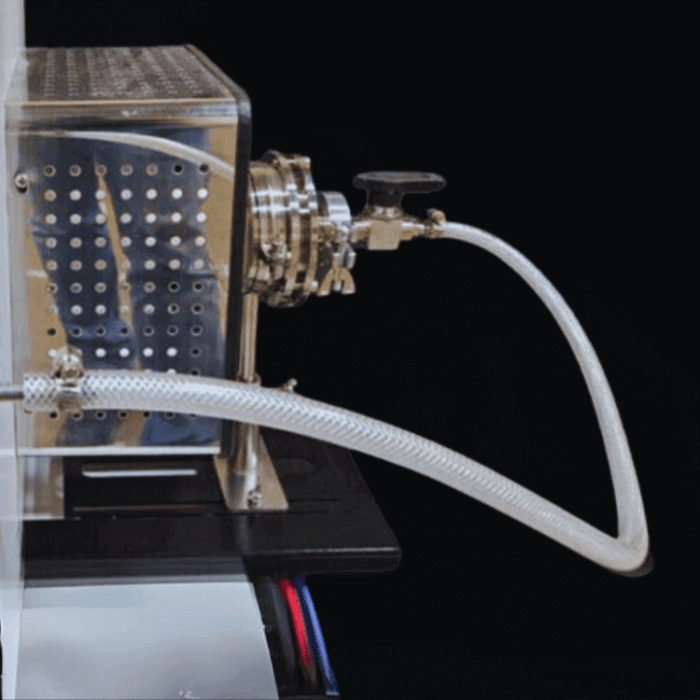

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**
Tubing sold separately
| Electrical requirements | 208-240VAC, 50/60 Hz, single phase |
| Tube material | Quartz |
| Maximum working temperature | 1200°C (2 hours maximum continuous run time) |
| Maximum constant working temperature | 1100°C |
| Constant working temperature under vacuum | 1000°C |
| Minimum working temperature | Ambient |
| Rated vacuum pressure | 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Rated positive pressure | 0.02 MPa / 150 torr / 3 psi |
| Heating element type |
Kanthal (Sweden) A1 2.0 resistance coil wire |
| Thermocouple type | K |
| Refractory lining | Mitsubishi (Japan) high quality 1500 grade fiber alumina |
| Temperature controller |
Eurotherm (UK) digital multi-segment controlle |
| Maximum heating rate | < 30°C / min |
| Heating zone length | 16 inches |
| Constant temperature zone length | 10 inches |
| Temperature controller precision |
± 1°C |
| Vacuum sealing flange kit |
Stainless steel vacuum sealing flanges with one vacuum gauge, |
| Gas inlet/outlet | 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread) |
Size comparison
| Tube size (OD x length) | 60mm x 1m | 100mm x 1m | 150mm x 1m |
| Maximum output | 2.5 kW | 3.5 kW | 5 kW |
| Furnace assembled (LxWxH) | 49x18x53" | 49x18x53" | 49x19x55" |
| Shipping dimensions (LxWxH) | 46x21x62" | 46x21x62" | 46x22x64" |
| Shipping weight (Lb) | 350 | 430 | 550 |
|
Part description |
Quantity |
| VTF1200 vertical tube furnace |
1 pc |
| Quartz tube |
2 pcs |
| Stainless steel vacuum sealing flanges w/ pressure gauge |
1 set |
| Clamp, O-ring, and Valve (Pre-installed on flange) |
1 Set |
| Flange O-rings | 8 pcs |
| Stainless steel hook |
1 pc |
|

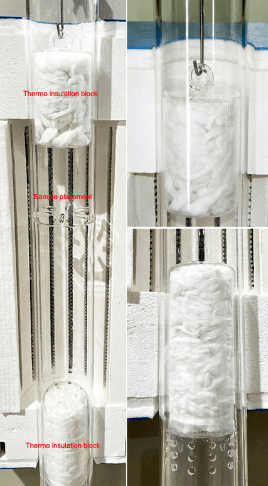

Quartz thermal block |
1 pair |
| Thermal gloves | 1 pair |
| Spare fuse | 2 pcs |
| USB/RS485 computer interface kit | 1 set |
| Allen Keys | 1 pc |
| 25A UL Fuse | 1 pc |
| 4A UL Fuse |
1 pc |
| Furnace and Eurotherm or Shimaden controller manual | 2 pcs |
| Eurotherm USB OR Shimaden CD for software |
1 pc |
