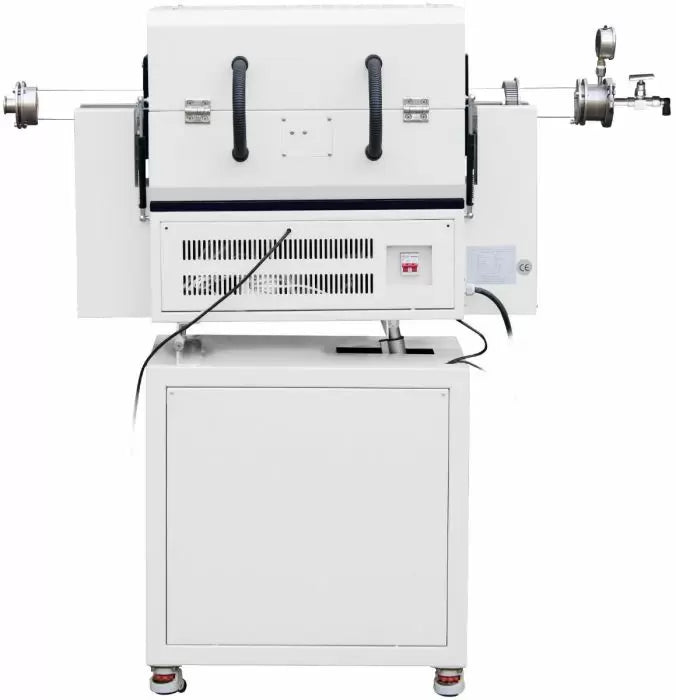

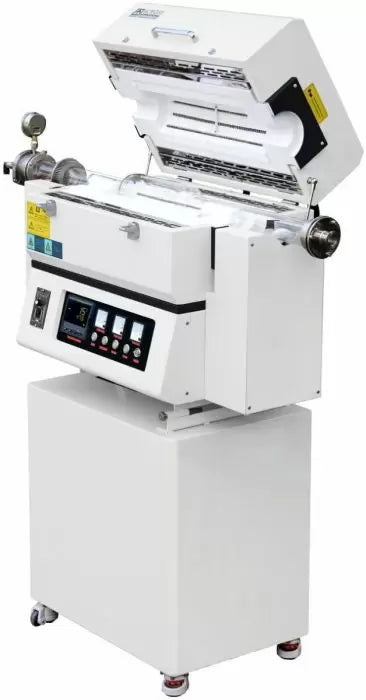

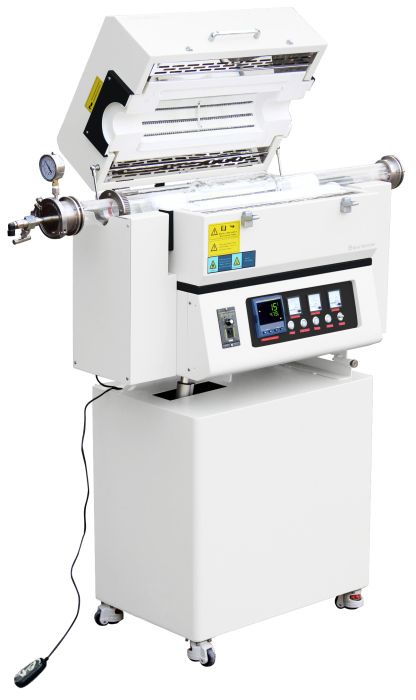

Ai RTF1200Ā series top-open tube furnaces feature the famousĀ KanthalĀ (Sweden) spiral wire coils embedded inĀ Mitsubishi (Japan) high-quality grade 1500 alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface.
Furnace operation is controlled byĀ Eurotherm (UK) multi-segment digital controller, allowing the user to connect to a PC for remote control and monitoring of the furnace.
Ā
Controller Options:Ā
Eurotherm 3504: 50 segments (ramping and dwelling)
Features

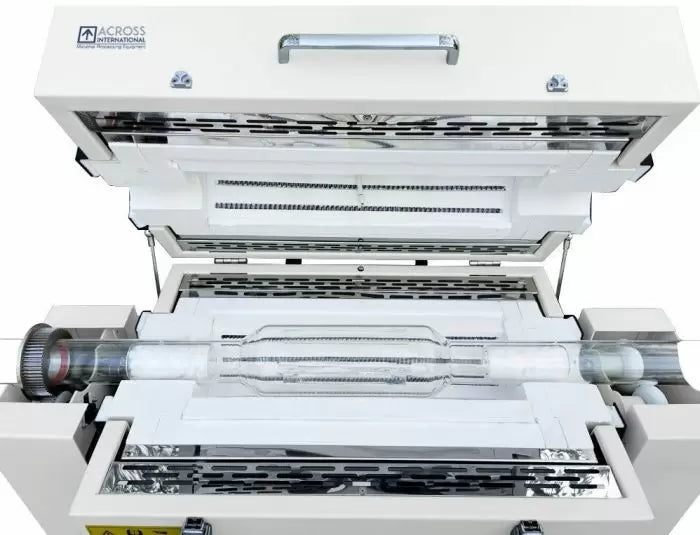

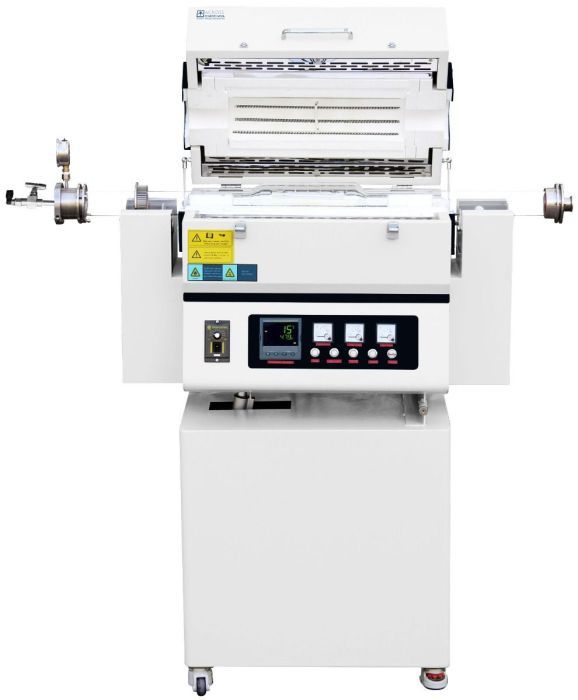

- Top-open furnace chamber for fast and easy tube access.
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Eurotherm microprocessor based self-tuning PID controller provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
Ā
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
- Limit switch turns off furnace once top is open.
Ā
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
Ā
Ā
Ā
Ā
Ā
Ā

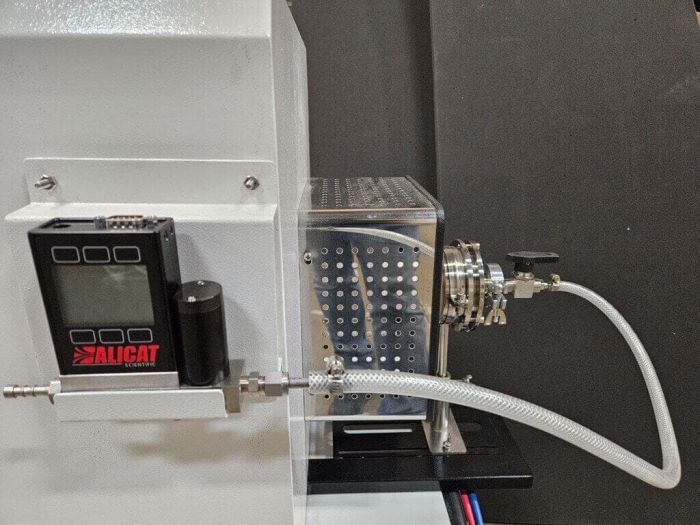

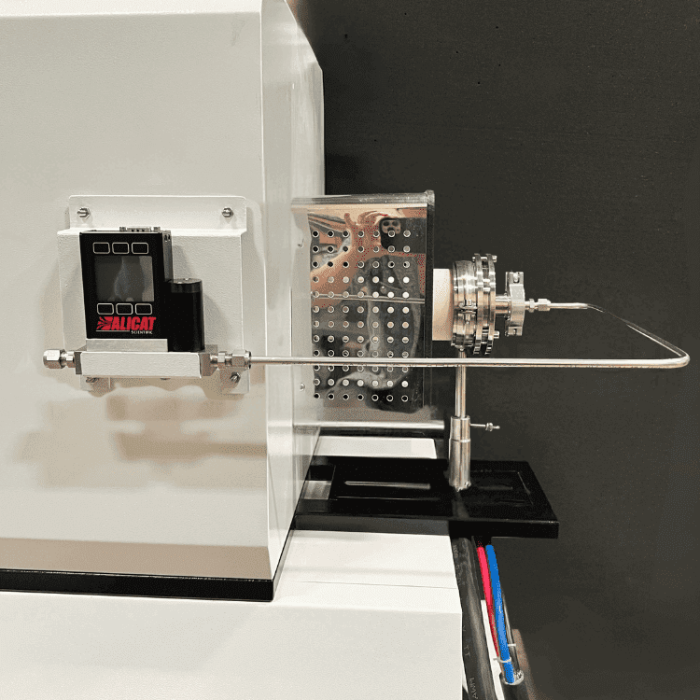

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**
Ā
Tubing sold separatelyĀ
Ā
Ā
Ā
Ā
Ā
| Ā Model | Ā RTF1200 |
| Ā Electrical requirements | Ā 208-240VAC, 50/60 Hz, single phase |
| Ā Rotation speed & inclination | Ā 0 to 20 rpm, 0 to 30Ā° |
| Ā Tube material | Ā Quartz |
| Ā Maximum working vs constant temperatures | Ā Working:Ā 1200Ā°C (2 hours maximum continuous run time) Ā Constant: 1100Ā°C |
| Ā Constant working temperature under vacuum | Ā 1000Ā°C |
| Ā Rated vacuum pressure | Ā 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Ā Rated positive pressure | Ā 0.02 MPa / 150 torr / 3 psi |
| Ā Heating element type |
Ā KanthalĀ (Sweden) A1 2.0 resistance coil wire |
| Ā Thermocouple type | Ā K |
| Ā Refractory lining | Ā MitsubishiĀ (Japan) high quality 1500 grade fiber alumina |
| Ā Temperature controller |
Ā EurothermĀ multi-segment digital controller |
| Ā Maximum heating rate Ā | Ā < 30Ā°C / min |
| Ā Temperature controller precision |
Ā Ā± 1Ā°C |
| Ā Vacuum sealing flange kit |
Ā Stainless steel vacuum sealing flanges with oneĀ vacuum gauge, |
| Ā Gas inlet/outlet | Ā 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread) |
| Ā Compliance | Ā CE |
| Ā WarrantyĀ | Ā 1 year |
Ā
Model Comparison
Ā
| Ā Zone | Ā 1-Zone | Ā 1-Zone | Ā 1-Zone | Ā 2-Zone | Ā 2-Zone | Ā 3-Zone | Ā 3-Zone |

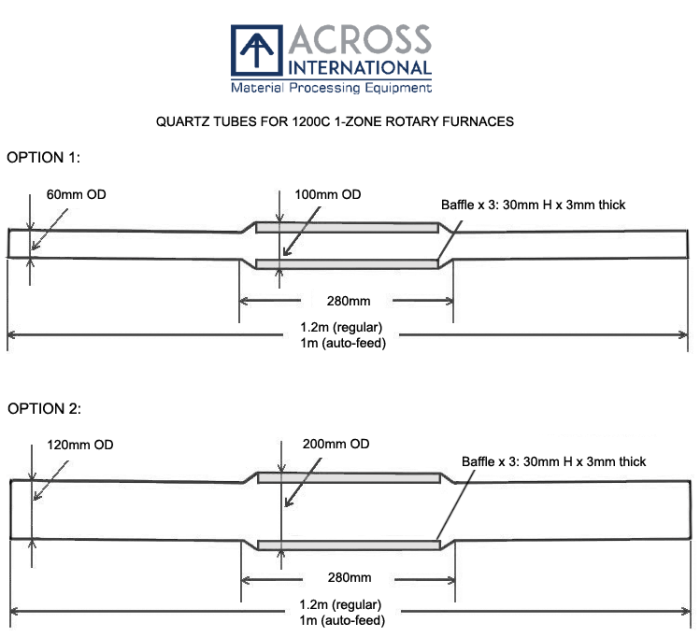

| Ā Tube size (OD x L) | Ā 60mmx1.2m | Ā 120mmx1.2m | Ā 150mmx1.2m | Ā 60mmx1.2m | Ā 120mmx1.6m | Ā 60mmx1.4m | Ā 120mmx2m |
| Ā Tube center with baffle Ā (diameter x L in mm) |
Ā 100x280L | Ā 200x280L | Ā 300x280L | Ā 100x280L | Ā 200x380L | Ā 100x380L | Ā 200x380L |
| Ā Heating zone | Ā 16" | Ā 16" | Ā 17.3" | Ā 8+8" | Ā 16+16" | Ā 8+8+8" | Ā 16+16+16" |
| Ā Maximum output | Ā 3.5 kW | Ā 6 kW | Ā 10kW | Ā 3.5 kW | Ā 12 kW | Ā 5.4 kW | Ā 18 kW |
| Ā Eurotherm controller | Ā 1 pc | Ā 1 pc | Ā 1 pc | Ā 2 pcs | Ā 2 pcs | Ā 3 pcs | Ā 3 pcs |
| Ā Furnace dimensions (LxWxH) | Ā 47x26x47" | Ā 50x32x52" | Ā 50x36x56" | Ā 83x18x48" | Ā 95x24x52" | Ā 84x18x48" | Ā 111x24x52" |
| Ā Fuance weight (Lb) | Ā 264 | Ā 352Ā | Ā 396 | Ā | Ā | Ā | Ā |
| Ā Shipping dimensions (LxWxH) | Ā 67x28x63" | Ā 71x37x68" | Ā 71x40x73" | Ā 73x24x56" | Ā 89x30x60" | Ā 79x24x56" | Ā 105x30x60" |
| Ā Shipping weight (Lb) | Ā 440 | Ā 597 | Ā 675 | Ā 330 | Ā 400 | Ā 370 | Ā 460 |
|
Ā Part descriptionĀ Ā Ā Ā Ā |
Ā Ā Ā Ā QuantityĀ Ā Ā |
Ā Part imageĀ Ā |
| Ā RTF1200 top-open rotary and tilting tube furnace | Ā 1 pc | |
| Ā Quartz tube | Ā 1 pc | |
| KF25 Bellow | 2 pcs | |
| KF25 Rotating Coupler | 2 pcs | |
| Stainless steel vacuum sealing flanges w/ pressure gauge | 1 set | |
| Flange O-rings | Ā | |
| Double Sided Steek Hook | 1 pc | |
| Quartz Thermal Block (If applicable) | 1 pair | |
| KF25 wing nut flange quick clamp | 6 pcs | |
| KF25 flange centering ring | 6 pcs | |
| Ā Thermal gloves | 1 pair | |
| Ā USB/RS485Ā computer interface kit | 1 set | |
| Ā UL Fuses | 1 set | |
| Furnace and Eurotherm controller manual | 2 pcs |
