Across International 10mm Diameter ID Dry Pressing Die Set

Save $6.38 USD
No reviews

Price:
Sale price$312.62 USD Regular price$319.00 USD
Description

A set of 10mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 10mm diameter cylinder-shape pellets.

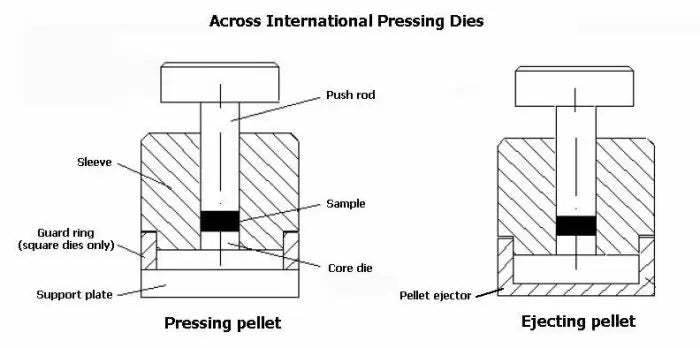

Die set includes

  • Two 10mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector

Important

  • Always wear protection goggles and gear during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 10 tons. Across International is not responsible for any damage caused by misuse.
Specifications
Specifications
  • Maximum Pressure:      10 metric tons
  • Rockwell Hardness:       Rc 62
  • Diameter (ID):              10 mm
  • Height:                         61 mm (assembled without sample)
  • Sleeve Height:              39 mm
  • Sleeve Diameter (OD):  30 mm
  • Tolerance:                    0.01-0.02 mm (10-20 micron)
  • Material:                       W18Cr4V hardened carbon tool steel
  • Max sample fill height:   Not to exceed 1/3 of the sleeve height

Die set includes

  • Two 10mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector

Important

  • Always wear protection goggles and gear during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 10 tons. Across International is not responsible for any damage caused by misuse.
