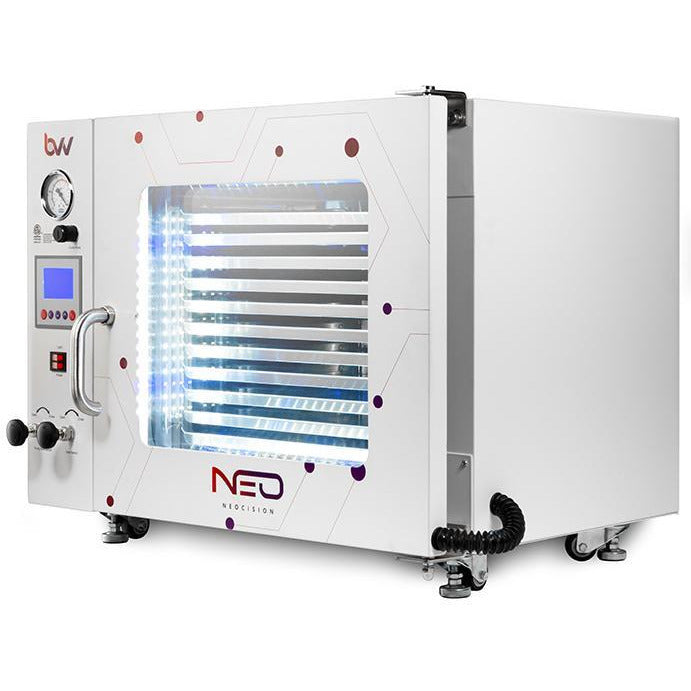

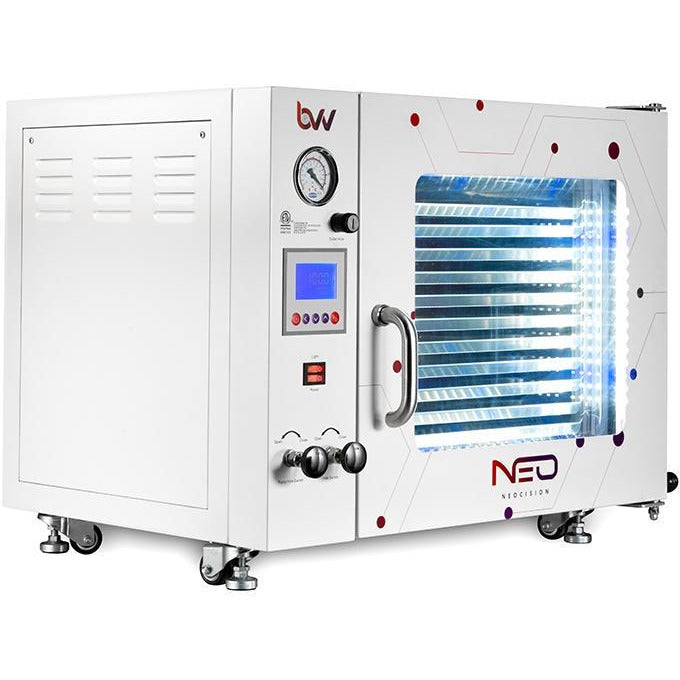

1.9CF BVV™ Neocision Certified Lab Vacuum Oven - 5 Wall Heating, LED's, 11 Shelves Standard - 3 Year Warranty
Disclaimer
This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in well-ventilated areas!
Backed by our 3 Year Parts and Labor Warranty.
Introduction
Our vacuum ovens are purpose-built to perform degassing / purging of light hydrocarbon solvents. Using the technique of cold boiling, the oven applies a gentle heat under reduced pressure conditions to expedite solvent degassing while simultaneously preserving color, aroma, and overall solute quality. We've applied our extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-throughput, and reliable operation.
Performance Capabilities
At BVV™, we make every effort to provide oven performance capabilities in a standardized format. We're not interested in juking our stats to make a sale. Instead, our goal is to provide quality, transparent production capabilities that meet the demands of our professional customers.
Temperature Stability: ±1.0°
- Temperature Range: Room Temp+18°F to 212°F
- Temperature Uniformity: within 5% of the temperature setpoint.
- Heat-Up Time: 45 minutes to preheat. Optimal saturation reached in 120 minutes, over 30 minutes faster than competitors.
- Ultimate Vacuum: <500 µmHg / mTorr / micron
- Time to Vacuum: 4 minutes to 29"Hg using our VE Series 4cfm Dual Stage Vacuum Pump.
- Vacuum Hold: guaranteed to lose less than 1"Hg (25.4 torr) in 24 hours.
Technical Data | ||
---|---|---|
Electrical | Voltage | 120V |
Frequency | 60Hz | |
Power | 650W | |
Current | 10A | |
Plug | IEC C13 (unit ships with detachable NEMA 5-15p cable) | |
Internal Chamber | Heating | Superior 5 Wall Heating (left, right, top, bottom, rear) |
Chamber Material | Stainless Steel | |
Dimensions (LxWxH) | 14.25" x 13.625" x 16.25" | |

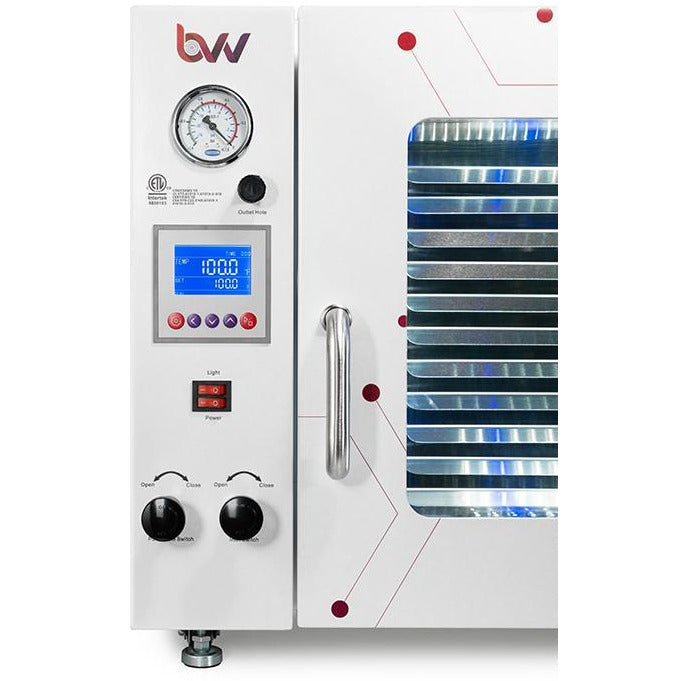

Vacuum Gauge | Style | Glycerin-filled for accuracy and longevity |
Range (units) | -30 to 0 (inHg) / -1 to 0 (bar) | |

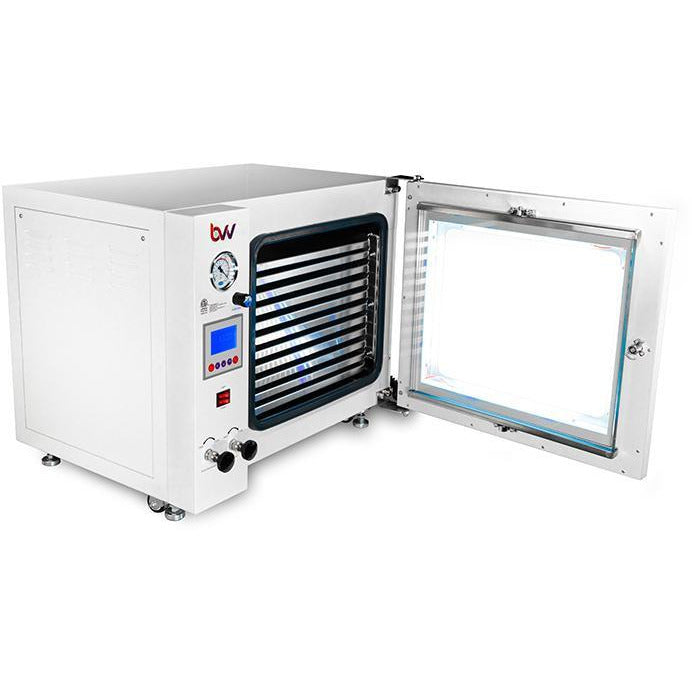

Shelving | Ships With | 11 Slide-in Shelves |
Shelf Dimensions (LxW) | 13" x 15" | |
Shelf Capacity | 195 in2 | |
Total Shelf Capacity | 2145 in2 / 14.9 ft2 | |
Safety | Seal | Silicone on Tempered Glass |
Window Dimensions (LxH) | 15.25" x 12.75" | |
Lights | 4 strips of LEDs provide clear, bright view of the interior | |
Handle | No plastic, all metal parts for lifetime durability | |
Exterior | Dimensions (LxWxH) | 28.5" x 23" x 22" |
Weight | 160 lbs | |

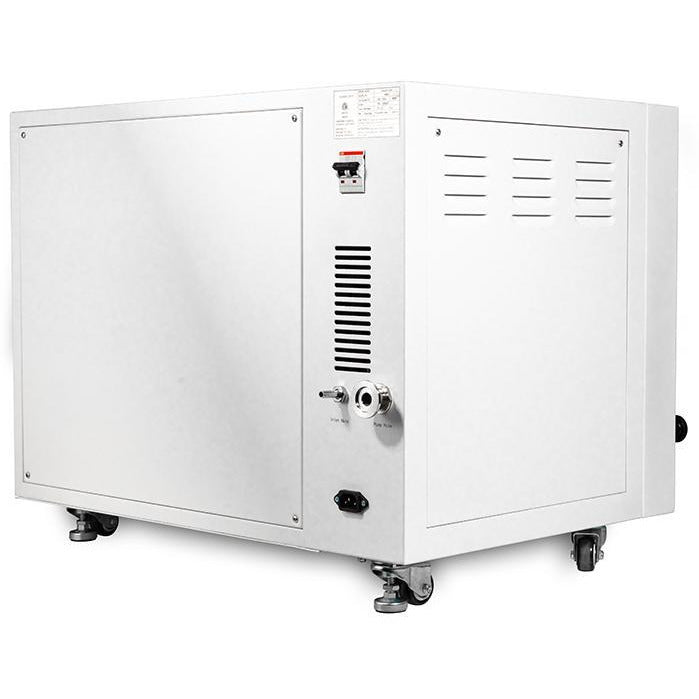

Support | Heavy Duty Casters and Adjustable Leveling Feet | |
Safety | Electrical | Built-in, resettable, overcurrent circuit breaker |
Thermal | Automatic overtemperature shutoff | |
Compliance | CE | CE Listing Recognized |
ISO | ISO 9001:2015 | |
ETL Certified | Conforms to ANSI/UL STD.61010-1, 61010-2-010 -- Certified to CAN/CSA STD. C22.2 NO.61010-1, 61010-2-010 | |

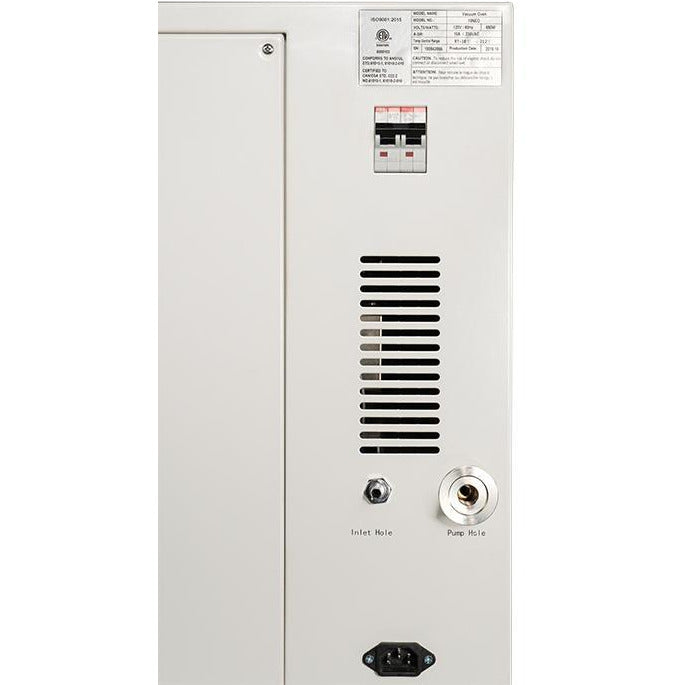

Connections | Vacuum Inlet | KF25 / NW25, quarter-turn valve |
Purge Inlet | 5/16" Barbed, 10-turn valve | |
Atmospheric Release | Quick-release dial | |
Contains | Ships With | KF25 x 1/4" JIC Flare with 1/4" vacuum hose and adjusting wrenches. |
User Manual | Included | |
Vacuum Pump | Sold Separately. | |
Recommended Pump | ||
Warranty | 3 Years |
Capacity and Throughput Planning
Oven capacity requirements vary widely by the producer. We wanted to create a method to assist in determining the best oven match for your operation, based on a few of the parameters of your extraction and of your desired purge. We based this formula on an expected extraction yield of 25%, with an extract-density of 1 g/in2. Using the following variables, this formula is designed to provide an estimate of your required shelving capacity:
- Size = Extraction Batch Size (lbs)
- Number = Runs per 24h Period
- Purge = Your desired purging duration (hours)
- Area Required (ft2) = [(Size) * (Number) * (Purge+1)] / 122
- Area Required (in2) = (Size) * (Number) * (Purge+1) * 1.18
