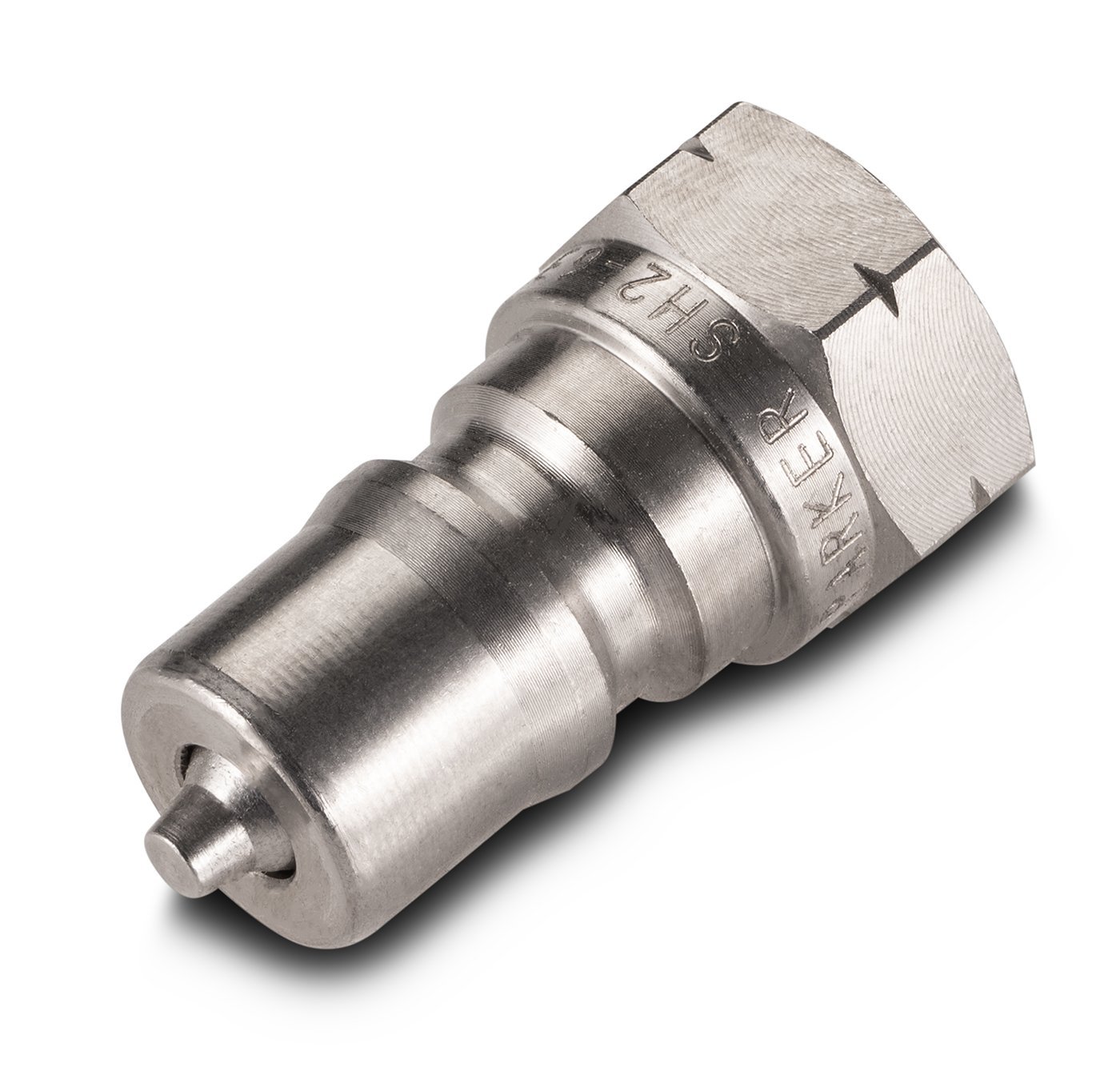

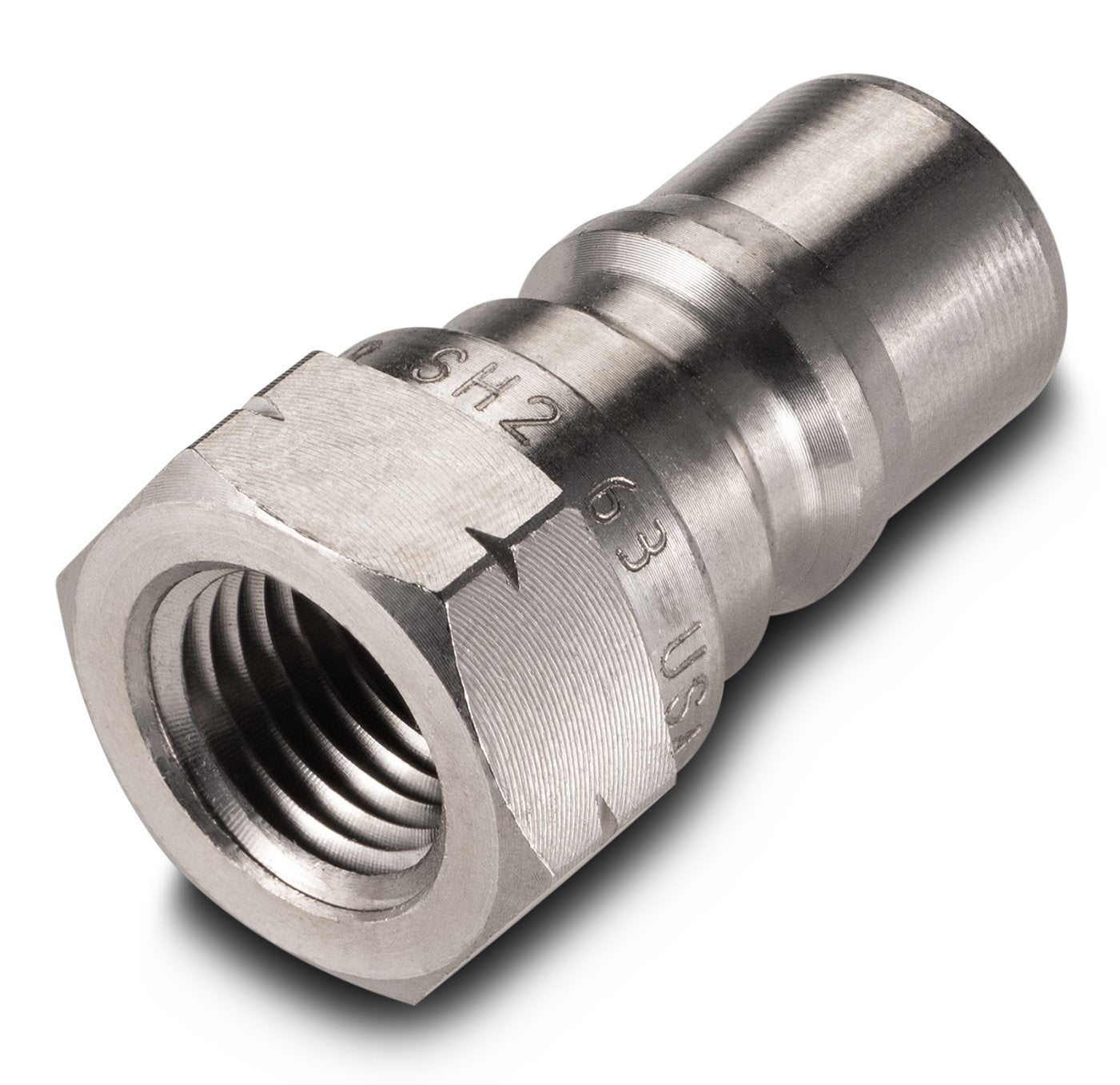

Parker 1/4" Female NPT Quick Disconnect - STEM

Power Lab Supply 1SKU: SH2-63
No reviews

Sale price$57.60 USD

1/4" Female NPT Parker Quick Disconnect - STEM


60 Series Nipples ( hydraulic, fluids, gas, steam up to 5000 PSI, connect with ISO 7241 series B, 60 Series Couplers.

Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disonnects and complying with ISO 7241 series B.

These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, influding high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 PSI.

Technical Characteristics:

  • Sizes: 1/8" - 2-1/2"
  • Materials: Steel, Brass, 303 Stainless Steel, 316 Stainless Steel
  • Port Ends: Female NPTF, Female ORB
  • Seal Options: Nitrile, EPR, Flourocarbon, Neoprene
  • Coupler Options include: Sleeve Lock, Valve Actuater, Steam Compatibility


    • Industrial
    • Construction
    • Chemical Processing
    • Commercial Cleaning
    • Agriculture


      • Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B
      • Multi-purpose coupling, widely used in varied applications
      • Steel nipples have a hardened body for strength and durability
      • Metal valve stop prevents flow checking to provide steady performance
      • Steam version couplers have Ethylene Propylene seals to withstand high temperatures and the 3/8"" has a grip-ring sleeve for easy operation when wearing gloves.
      • Metal valve stop prevents flow checking to provide steady performance
      • Nipple options include high temperature steam compatibility


        • Industrial hydraulic lines
        • Food and chemical processing
        • Water and coolant lines
        • High pressure fluid transfer
        • High temperature fluid transfer
        • Mobile equipment
        • Cleaning equipment
        • Dry cleaning
        • Steam and some gases


          Technical Specifications:
          Maximum Working Pressure (PSI) 5000
          Maximum Working Pressure (BAR) 340
          Flow Rate (GPM) 3
          Flow Rate (LPM) 11
          Media Hydraulic
          Industry Standards ISO 7241-1, Series B
          Coupling Half Nipple
          Minimum Working Temperature (F) -40
          Minimum Working Temperature (C) -40
          Maximum Working Temperature (F) 250
          Maximum Working Temperature (C) 121
          Valve Style Poppet
          Sleeve Type Manual Sleeve
          Locking Mechanism Locking Balls
          Vacuum Rating (INCH of HG) 27.4
          Vacuum Rating (BAR) -0.9
          Thread Style Female
          Plating N/A
          Valve Material 303 Stainless
          Ball Material Stainless steel
