Description
Elmasonic Xtra ST
Very powerful cleaning in high-capacity portable tanks. Portable, dual-frequency 25/45 kHz Elma xtra STÂ in 7 tank sizes from 8 to 67 gallons handle tasks ranging from coarse preliminary cleaning to fine cleaning. A special feature of these rugged industrial ultrasonic cleaners is the dynamic Sweep/Pulse mode, which alternates safe, even cleaning of the sweep with a powerful pulse to quickly remove tenacious contaminants.
Key Features of the Elmasonic xtra ST Ultrasonic Cleaning System
- Maximum ultrasonic power
- User-selectable 25 or 45 kHz frequencies
- Pulse mode for intensive bursts of ultrasonic power for cleaning and degassing
- Sweep mode for safe, even cleaning
- Dynamic sweep/pulse delivers the advantages of both modes

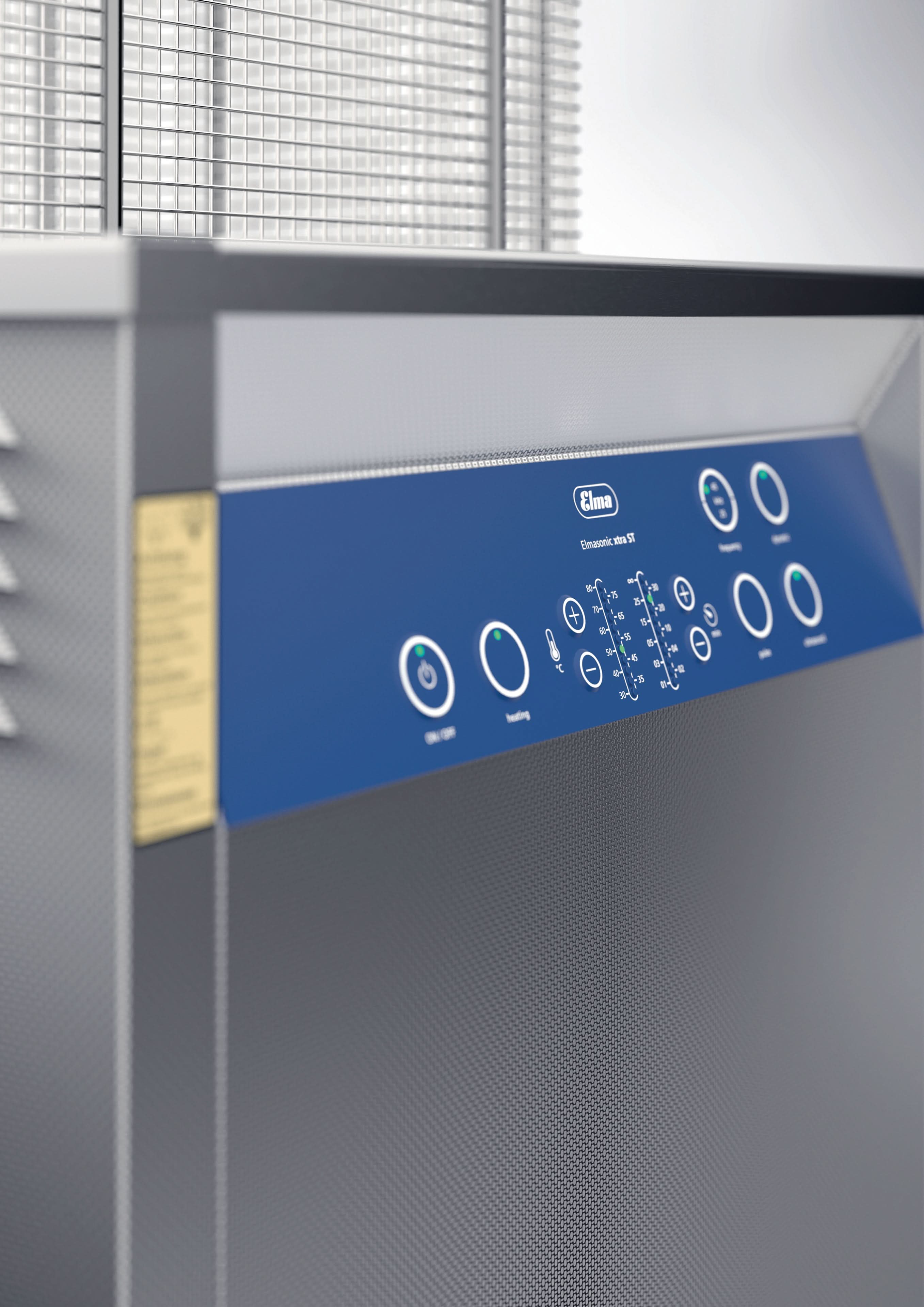

- Ergonomic inclined splash-proof operating panel
- LED panel displays activated functions, set, and actual time and temperature
- Clean at 30ËšC to 80ËšC; sonication starts at a set temperature
- Automatic safety shut off at 90ËšC or after 12 hours of continuous operation
- 3-year tank warranty (single shift operations)
- Standards CE; CSA; UL
- 3 Phase 200-208VAC
- 800H (4200 Watts), 1400H(5000 Watts), 2500H(7500 Watts)
More features for large-scale cleaning
- Control panel/generator assembly easily removed for quick repair
- Replaced generators automatically adjust to the unit’s transducers
- Pre-programmed cleaning routine for common cleaning tasks
- Cavitation-resistant stainless steel tanks and stainless steel cabinets
- The sloped tank bottom facilitates draining via a side-mounted drain valve

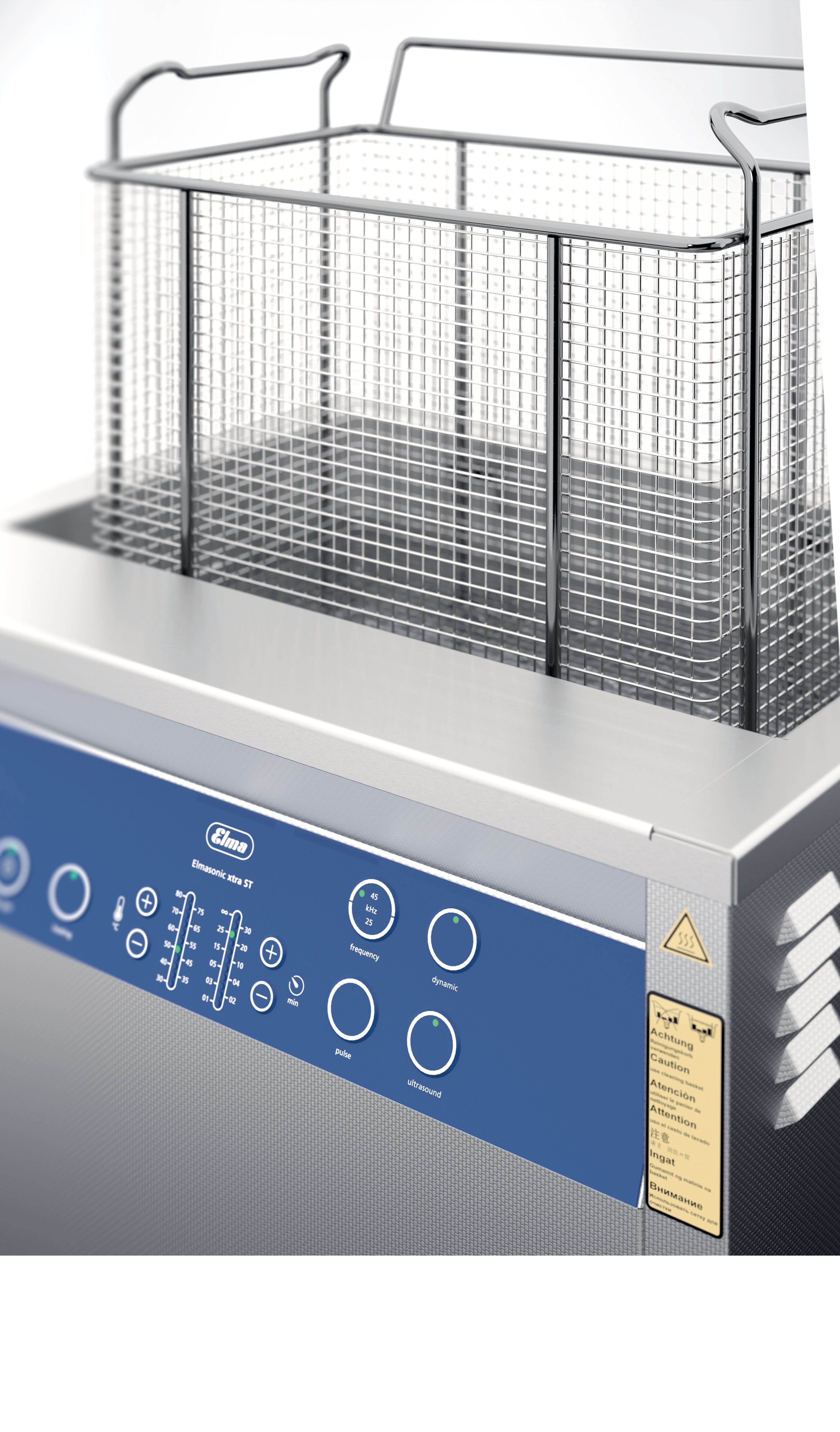

- Two basket positions for cleaning and draining
- Comprehensive operations manual
| Model | Tank Volume (Gallons) | Internal Dimensions (W x D x H in.) |
|---|---|---|

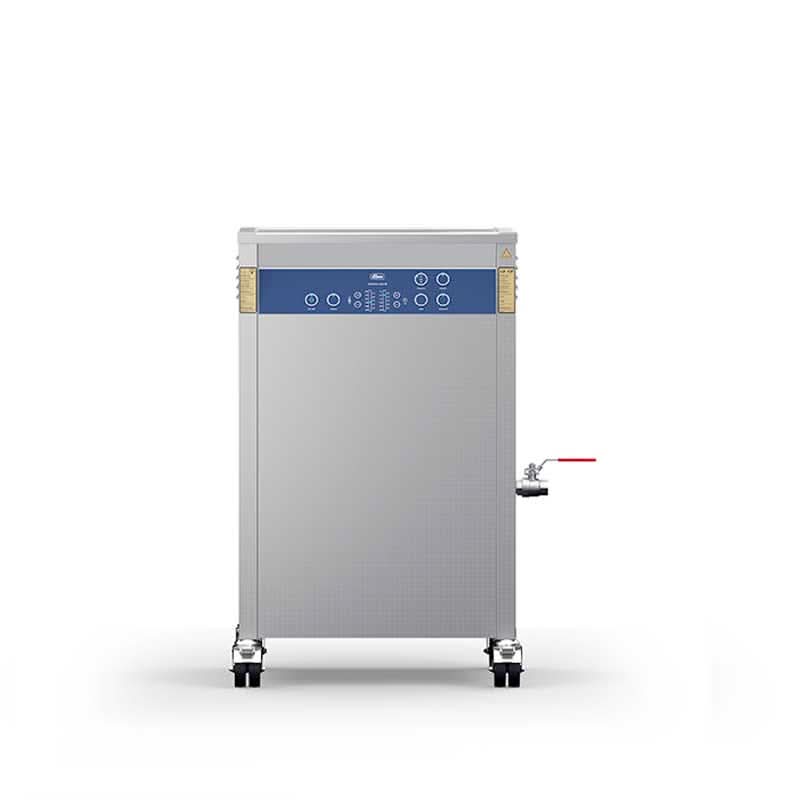

| ST800H | 21.9 | 19.7 x 13.0 x 19.7 |

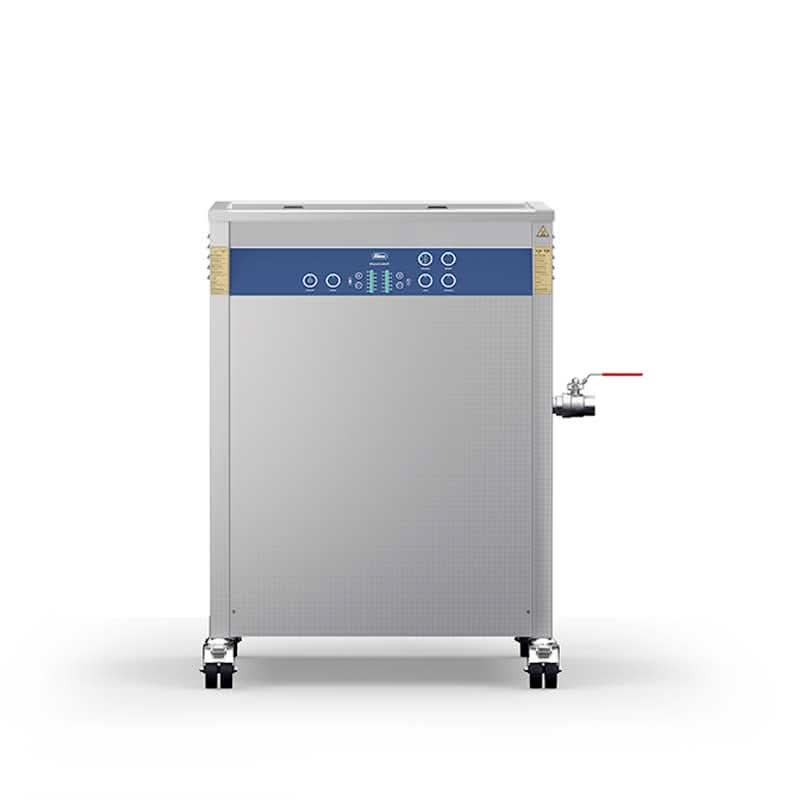

| ST1400H | 33.3 | 23.6 x 23.6 x 13.8 |

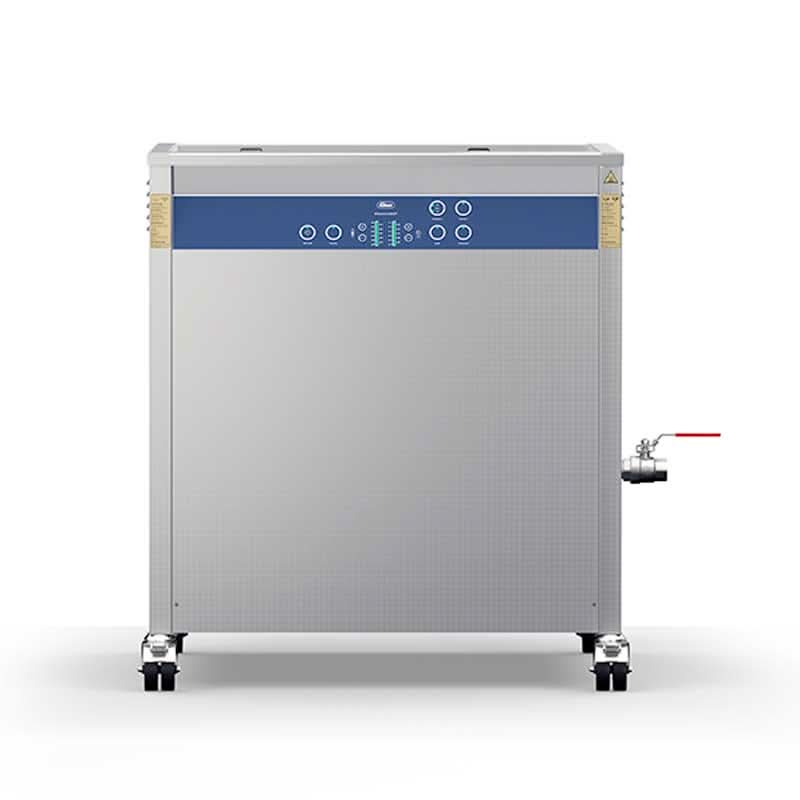

| ST2500H | 67.4 | 29.5 x 25.6 x 20.5 |
